StarTech.com PEXHDCAP60L2 Quick Start Manual

PCI Express Capture Card - 1080P at 60 FPS
Product ID (PEXHDCAP60L2)

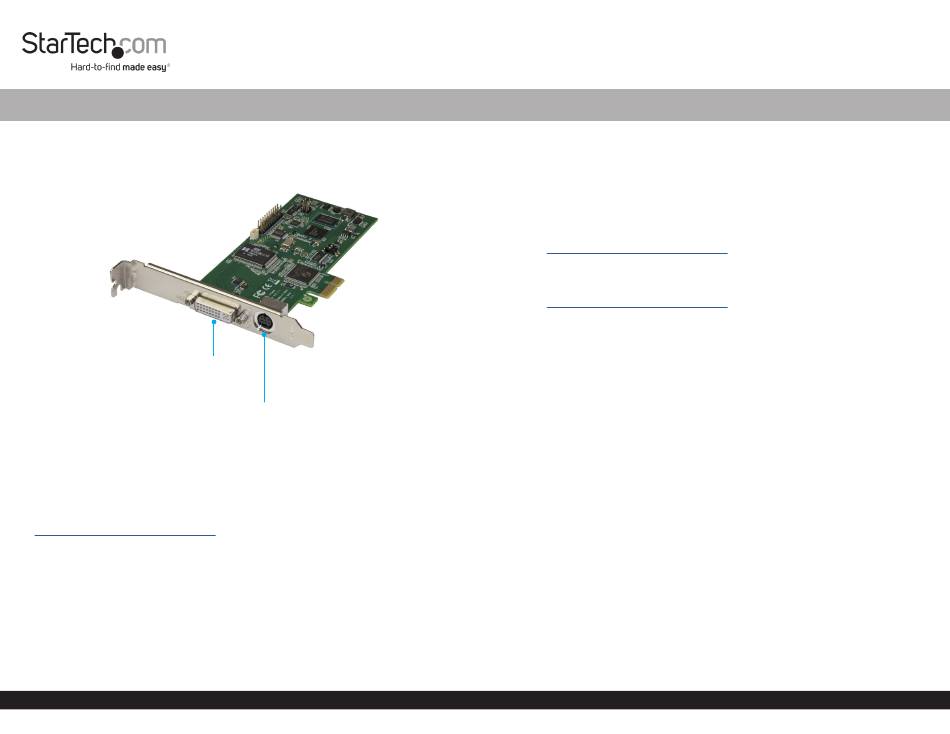

Product Diagram
Front View
input port
A/V breakout cable input port
(For component, s-video, and composite
video input + RCA audio input)
Product Information & Requirements
For the latest drivers, software, manuals, product information, technical specifications,
and declarations of conformance, please visit:
www.StarTech.com/PEXHDCAP60L2
• An HDMI, DVI, VGA, component, s-video or composite audio/video source with
cabling x 1
Package Contents
• PCI Express capture card x 1
• DVI to HDMI adapter x 1
• DVI to VGA adapter x 1
• Component video breakout cable x 1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
DVI
*Product may vary from images
• S-video and composite video breakout cable x 1
• Low-profile bracket x 1
• Full-profile bracket (attached) x 1
• Quick-Start Guide x 1
Installation
Driver Installation
Navigate to www.StarTech.com/PEXHDCAP60L2
tab to locate and download the latest Driver.
Software Installation
Navigate to www.StarTech.com/PEXHDCAP60L2
tab to locate and download the latest Windows Video Capture Software and the
accompanying Software User Guide.
Hardware Installation
Optional: Install the low-profile bracket
1. Remove both of the DVI port standoff screws located on the outside of the bracket.
2. Using a Philips type screwdriver (not included), remove the screw located next to the
internal side of the DVI port on the circuit board.
3. You can now remove the undesired bracket by pulling the bracket away from the
capture card.
4. Line up your desired bracket so that the DVI input port, and the A/V breakout cable
input port align with the port holes. Also ensure the screw hole is aligned with the
underside of the capture card.
5. Using a Philips type screwdriver (not included), reinsert the screw that you removed
in step 2.
6. Re-insert the Standoff screws that you removed in step 1.
Install the capture card in your computer
1. Turn off your computer and disconnect any peripheral devices, such as printers, and
external hard drives and unplug the power cable from the rear of the computer.
2. Remove the case cover from your computer. For more information on how to
perform this step, see the documentation that was included with your computer.
Quick-Start Guide
and select the Drivers/Downloads
and select the Drivers/Downloads
Manual Revision: January 2, 2025 12:27 PM
