Mounting Instructions LANCOM AirLancer O-360D-5G
General notes
The AirLancer O-360D-5G comes with materials for wall and pole mounting. The antenna must
be installed so that the antenna outputs point downwards. The antenna has SMA connectors to
which LANCOM indoor mobile routers can be connected. The screw connections should not be
exposed to the weather.
1. Placement on the desk or windowsill
Basically, outdoor installation provides better results. However, if this is not possible, the antenna

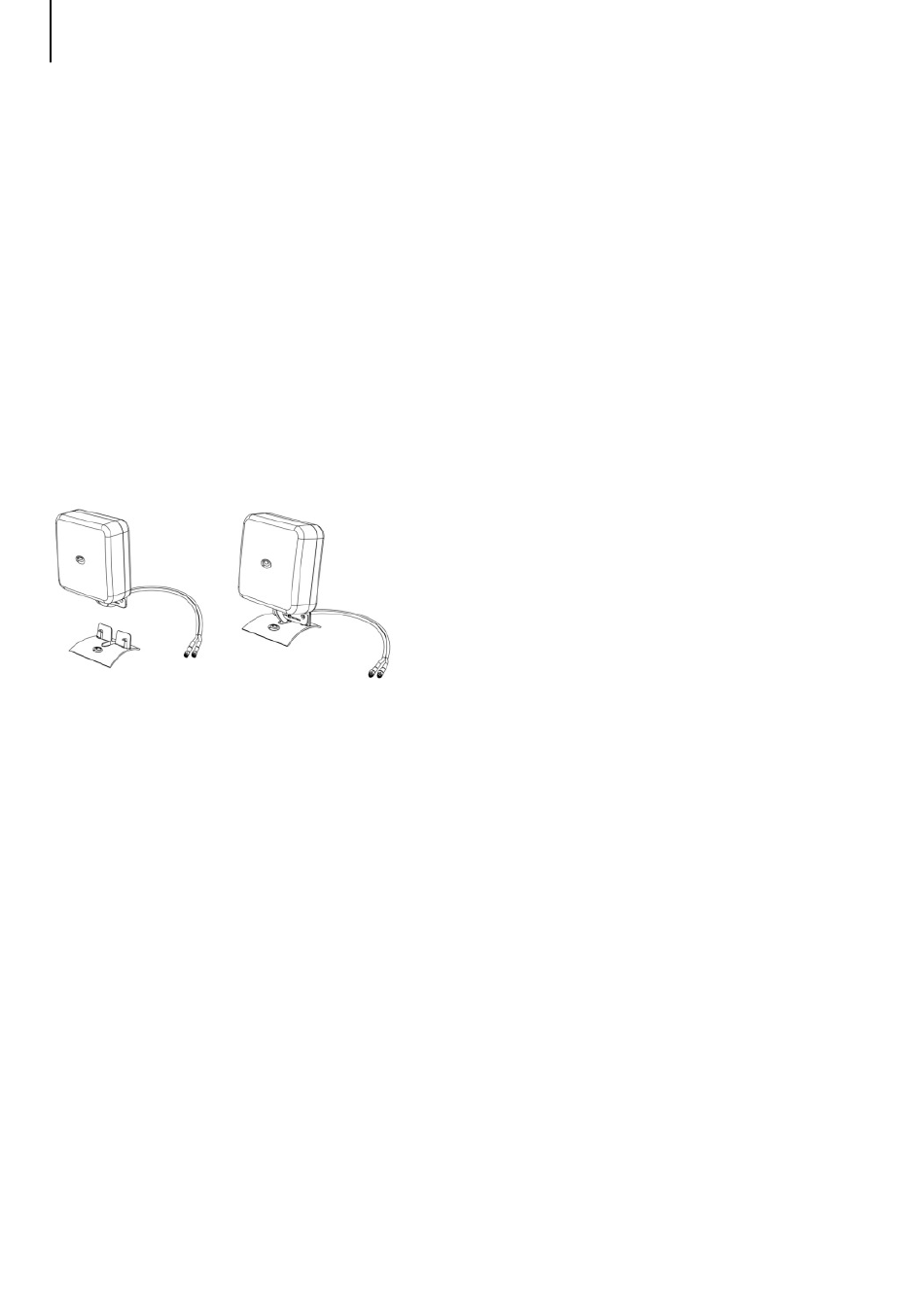

can also be installed indoors. For this purpose a stand is included in the scope of delivery. The
cable has to be led through the stand - as shown in the illustration - before the stand is clicked
onto the antenna.
If the antenna has to be removed from the stand, hold the foot from below and the antenna from
above. Move the foot slightly back and forth to allow the bolts to slide out of the mounting holes.
This allows the antenna to be easily removed from the stand.
