Koso RX-4S Instructions Manual

Thank you for purchasing our product. Before installing/operating the product, read the instructions carefully and retain them
for future reference.
Attention!
● For installation, follow the steps described. Any damage caused by wrong installation shall be imputed to the users.
● To avoid a short circuit from occuring do not pull or modify the wires during installation.
● Do not disassemble or change any parts. Opening and dissassembling this unit will void any warranty.
● Maintenance and repairs should be executed by our professionals only.
Symbol description:
NOTE
Some procedures must be followed to avoid damages to the product.
WARNING!
Certain procedure must be followed to avoid damages to yourself, to the vehicle or to others.
1-1
Accessories
1
LCD Meter X1
2-1

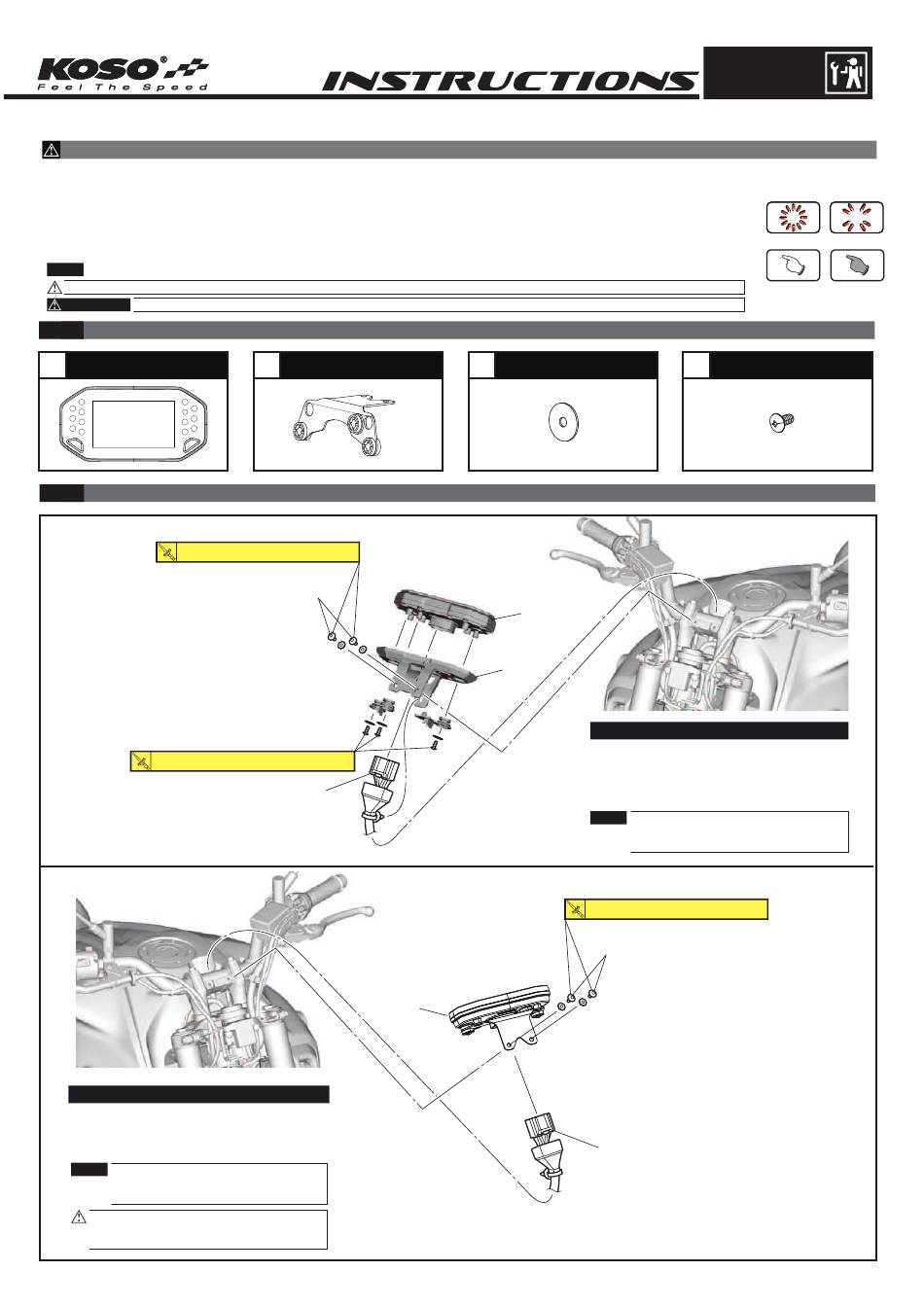

Installation instructions
7 N·m (0.7 kgf·m, 5.2 lb·ft)
1.3 N·m (0.13 kgf·m, 0.95 lb·ft)
Install in the following order
❶ LCD Meter (with Bracket)
❷ Main wiring harness
(from original supplier)
❸ Bolts of the meter bracket
NOTE Refer to the sequence of the
drawing for the assembly.
Perform the disassembly in reverse.
Before assembly, assemble the
❶ LCD Meter in advance (refer to
2-2 Installation Instruction).
2
Meter bracket X1
❶
❷
❶
(from original supplier)
3
M5 washer X3
❹
❸
Disassemble in the following order
❶ Bolts of the meter bracket
❷ Main wiring harness
❸ Meter bracket
❹ LCD Meter
NOTE Refer to the sequence of the
drawing for the removal.
Perform the assembly in reverse.
7 N·m (0.7 kgf·m, 5.2 lb·ft)
❸
❷
Flash Light on
Hold the Hold the
Button Button
1 second 3 seconds
4
M5X12Lmm Screw X3
(from original supplier)
(from original supplier)
(from original supplier)
(from original supplier)
wh081ba06c(P17-1)
