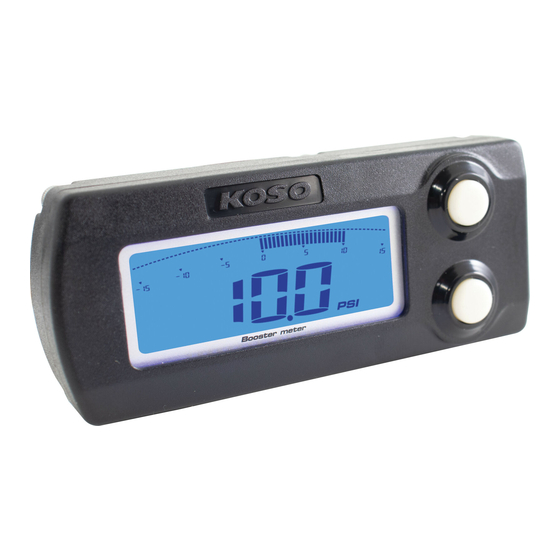

Koso X-1 Installation Manual

｡ Thank you for purchasing the KOSO Turbo / Boost Gauge. Before operating the unit, please read carefully the instruction and retain it
for the future reference.
Notice
1.The meter works for AC/DC 12V power.
2.For installation, please follow the steps described in manual. Any damage caused by wrong installation shall be imputed to the users.
3.Don't break or modify the wire terminal. To avoid a short circuit, do not pull the wires when installing.
4.Do not disassemble or change any parts.
5.The interior examination or maintenance of the instrument should be executed by our professionals only. Opening the instrument will void the warranty.
6. While riding the vehicle, do not attend to change the setting of the instrument to avoid injuries to yourself or others.
MARK MEANING:
Some procedures must be followed to avoid damage to the instrument.
Some procedures must be followed to avoid injuries to yourself or others.
WARNING!
Some procedures must be followed to avoid damages to the vehicle.
CAUTION!
1-1
Accessory
1
METER X1
Booster meter
5
Rubber X 1
9
M4X12L SCREW X2
13
3mm Allen Key X1
2
BOOST SENSOR X1
6
Rubber X 1
10
M5 washer X2
14
4mm Allen key X1
EXTENSION WIRE
3 3
X1
7
Steel gasket X 1
11
M4 gasket X2
16
Connection terminal X2
Press the Press the
button one button
time 3 seconds
4
METER BRACKET X1
8
M5X18L SCREW X2
12
M5 gasket X2
