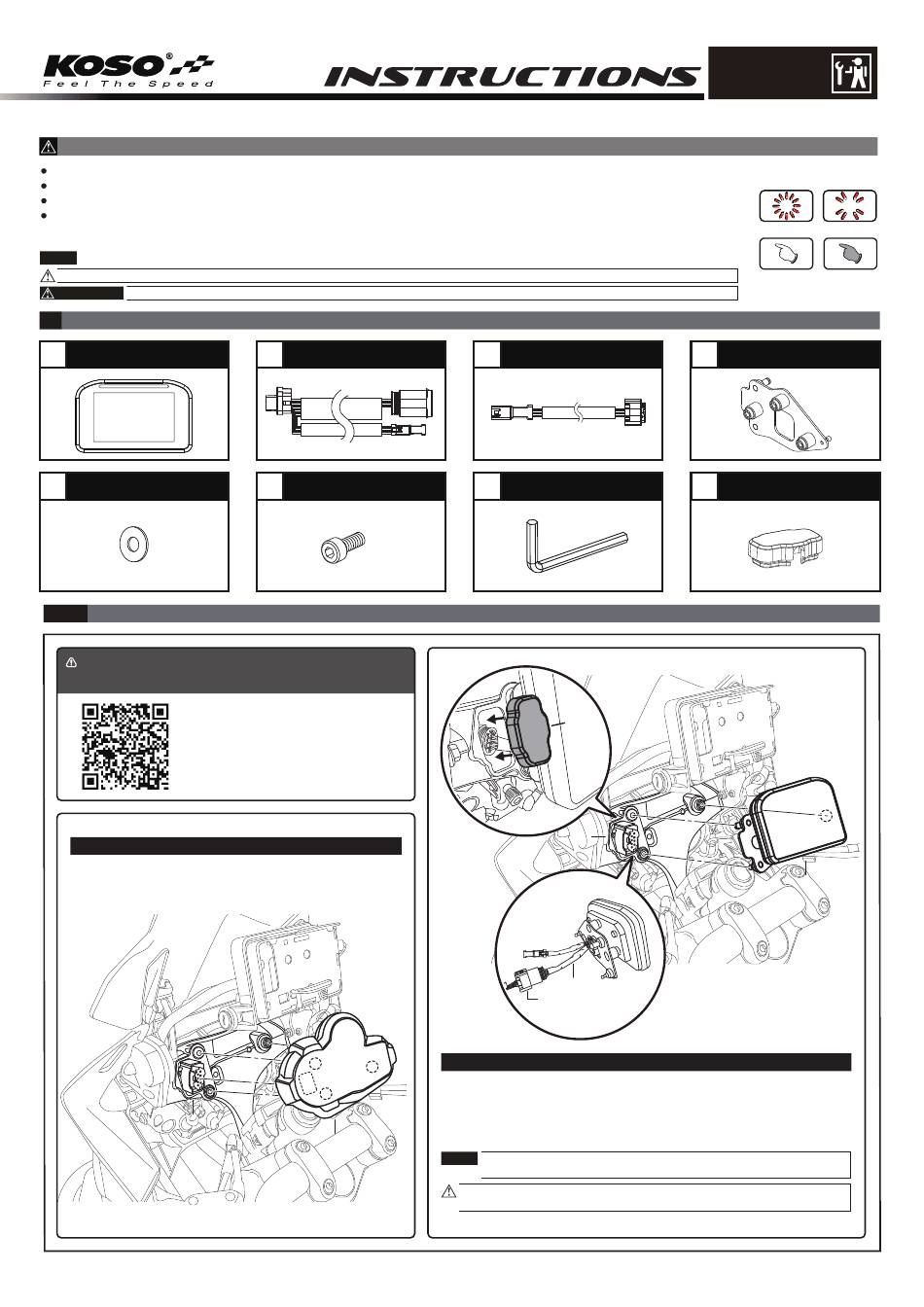

Koso RX-05 Instructions Manual

Thank you for purchasing our product. Before installing/operating the product, read the instructions carefully and retain them
for future reference.
Attention!
For installation, follow the steps described. Any damage caused by wrong installation shall be imputed to the users.
To avoid a short circuit from occurring do not pull or modify the wires during installation.
Do not disassemble or change any parts. Opening and dissassembling this unit will void any warranty.
Maintenance and repairs should be executed by our professionals only.
Symbol description:
NOTE
Some procedures must be followed to avoid damages to the product.
WARNING!
Certain procedure must be followed to avoid damages to yourself, to the vehicle or to others.
1
Accessories
1
LCD Meter X1
5
M4 washer X3
2-1
Vehicle installation instructions
Follow the steps in the picture prior to installation.
Only required for initial install.
Scan the QR code for
installation instructions.
Disassemble in the following order
❶ Stock wiring harness
❷ Original Meter
❶
2
Harness 1 X1
6
M4 X 10L Allen screw X3
❷
3
Harness 2 X1
7
3 mm Allen key X1
❹
❸
❷
❸
Install in the following order
❶ LCD Meter(With Bracket and meter harness)
❷ RX-5 adapter wiring harness
❸ Stock wiring harness
❹ Outlet cover
NOTE Refer to the sequence of the drawing for the removal. Perform the
assembly in reverse.
Before assembly, assemble the ❶ LCD Meter in advance (refer to 2-2
Installation Instruction).
Flash Light on
Hold the Hold the
Button Button
1 second 3 seconds
4
Meter bracket X1
8
Outlet cover X1
❶
wh062ba01c(P23-1)
