Koso DB-02R Instructions Manual

Thank you for purchasing our product. This product is a multifunction meter and is easy to install. Before using, please read the instructions
●
carefully and retain them for future reference.
Attention!
● For installation, please follow the steps described. Any damage caused by wrong installation shall be imputed to the users.
● To avoid a short circuit from occuring do not pull or modify the wires during installation.
● Do not disassemble or change any parts. Opening and dissassembling this unit will void any warranty.
● Maintenance and repairs should be executed by our professionals only.
◎ Symbol description:
NOTE
Some procedures must be followed to avoid damages to the instrument.
WARNING! Certain procedures must be followed to avoid damages to yourself, to the vehicle or others.
1-1
Accessory
1

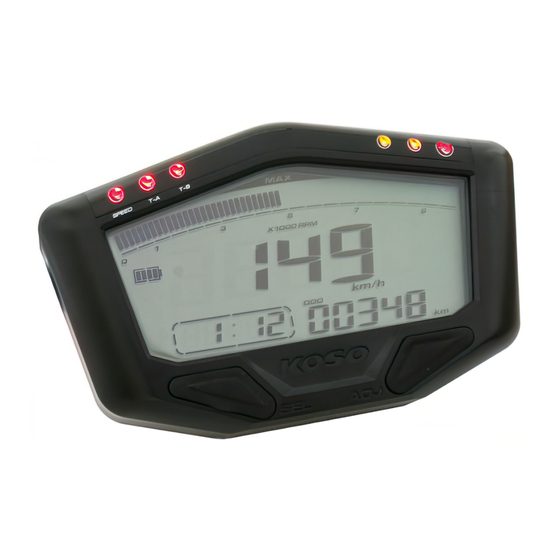

LCD meter X 1
5
Temp sensor wire set X 2
9
M8/ S type speed
sensor bracket X 1
13
4 mm spanner X 1
17
Mid-way connect X 2
1-2
Option accessory
1
Active speed sensor
Water temp
5
sensor adapter
M14
M16.M18
M22.M26 mm
NOTE
The advantage of the active speed sensor is as following, 1. You don't need to install the magnet in the opposite position of the speed
sensor. 2. You could set up the sensor signal input up to 60 points, and the speed displayed will be more accurate. Please note that the
speed sensor attached in the kit is passive speed sensor, and the maximum speed signal it could read is 6 points.
NOTE
Some of the option accessories may not sell. For the details, please contact the local distributor.
2
Power wireX1
6
PT 1/8water temp
sensor X 2
10
M10/ S type speed
sensor bracket X 1
14
Meter bracket X 1
18
M5 x 12L screw X 2
2
Disc magnet screw
5/16-18 X 22.1L
M5 X P0.8 X 12L
M6 X P1.0 X 12.6L
M6 X P1.0 X 19.7L
M6 X P1.0 X 24L
M8 X P1.25 X 22.5L M8 X P1.25 X 27.5L
M8 X P1.25 X 29L M10 X P1.25 X 28.3L
6
Temp sensor
M10 X P1.0
M12 X P1.5
M14 X P1.25
M14 X P1.5
M16 X P1.5 / M18 X P1.5
3
RPM wire set (A TYPE ) X 1
7
Reed switch speed
sensor X 1
M5X5L Hexagon socket
11
screw X 2
15
M5 washer X 2
3 L TYPE speed sensor
backet
7 Temp sensor wire set
(2 M)
HOLD THE HOLD THE
BUTTON ONE BUTTON 3
SECOND SECONDS
4
RPM wire set B TYPE X 1
8
D6 X 5L mm magnet X 6
12
2.5 mm spanner X 1
16
M5 X 15L screw X 2
4 Oil temp sensor
adapter
M12 X P1.5 X 15L
M14 X P1.25 X 15L
M14 X P1.5 X 15L
M16 X P1.5 X 15L
M18 X P1.5 X 15L
M20 X P1.0 X 15L
M20 X P1.5 X 15L
