产品介绍 Introduction
GMr-C3 是一款采用 AFHDS 3(第三代自动跳频
数字系统)协议 3 通道微型接收机。本接收机外
置单天线 , 支持双向传输 , 支持 FS-GY01 陀螺仪 ,
适配蚊车等模型。

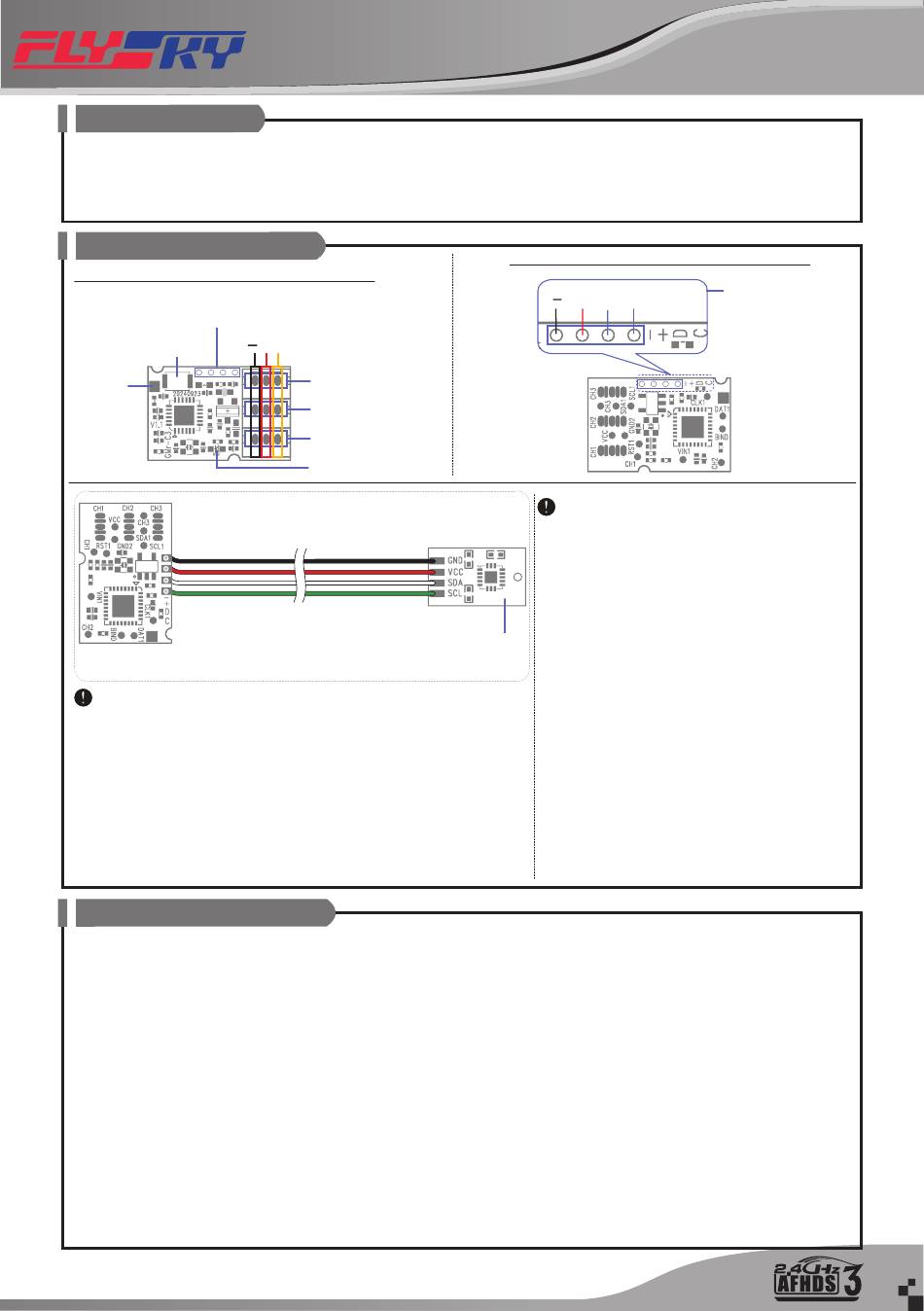

接收机概览 Receiver Overview
GMr-C3 接收机正面 /Front View of GMr-C3 receiver
陀螺仪焊点 /
Gyroscope Solder Joint
对码按键 /BIND
Button
天线 /
Antenna
陀螺仪焊接注意事项:
• 如图所示,建议将 FS-GY01 陀螺仪四根线的线芯从接收机正面四个焊
点处穿过后,焊接在接收机背面(注:接收机天线所在面为正面)。
• 注意焊接时,接收机焊点信号与陀螺仪的信号须一一对应,也就是陀
螺仪的 SCL 线 ( 即陀螺仪上丝印 SCL 端引出的线)焊接到接收机标识
"C"(SCL)的焊点;SDA 线焊接到标识为" D"(SDA) 的焊点,
依次类推。
• 焊接后,建议在接收机正面的"陀螺仪焊点"位置打胶,以增强焊接
端的牢固性。
产品规格 Product Specifications
•
产品型号:GMr-C3
•
适配发射机:Noble 等所有 AFHDS 3 发射机
•
适配模型:蚊车
•
PWM 通道数:3
•
无线频率:2.4GHz ISM
•
无线协议:AFHDS 3
•
遥控距离:>50m(空旷无干扰地面距离)
•
通道分辨率:4096 级
•
天线类型:单天线(硅胶线天线)
•
工作电压:3.5 ~ 9V/DC
•
数据输出:PWM
•
温度范围:-15℃~ +60℃
•
湿度范围:20% ~ 95%
•
在线更新:是
•
外形尺寸:19.0*12.5*7.0mm
•
机身重量:1.3g
•
认证:CE,SRRC,FCC ID: 2A2UNGMR-C300
http://www.flysky-cn.com
Copyright ©2024 Flysky Technology Co., Ltd.
GMr-C3
The GMr-C3, in compliance with the AFHDS 3 (third-generation
automatic frequency hopping digital system), is a 3-channel
micro receiver, featuring single external antenna and bidirectional
transmission. And it supports the FS-GY01 gyroscope and is
compatible with RC cars, such as micro or mini RC cars.
+
S
CH3
CH2
CH1
指示灯 /LED
FS-GY01 陀螺仪 /
FS-GY01 Gyroscope Module
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
GMr-C3 接收机背面 / Back View of GMr-C3 receiver
+
SDA
SCL
Attention:
•
As shown in the figure, it is recommended to
cross the cores of the four wires of the FS-GY01
gyroscope through the four solder joints on the
front of the receiver and then solder them to the
back of the receiver (Note: the side where the
receiver antenna is located is considered front).
•
When soldering, pay attention to ensuring that the
receiver solder joint signals correspond one-to-one
with the FS-GY01 gyroscope signals. Specifically,
the SCL line of the gyroscope (the line leading out
of the SCL end silkscreened on the gyroscope)
should be soldered to the solder joint marked
'C' (SCL) on the receiver; the SDA line should be
soldered to the solder joint marked 'D' (SDA), and
so on. Ensure that all four solder joints are well-
soldered.
•
After soldering, it is recommended to apply
hot-melt adhesive to the position of the front
"Gyroscope Solder Joint" to increase soldering
performance.
Product Model: GMr-C3
Compatible Transmitters: All AFHDS 3 transmitters, such as Noble
Compatible RC Models: Micro/Mini cars
Number of PWM Channels: 3
RF: 2.4GHz ISM
RF Protocol: AFHDS 3
Distance: More than 50m (ground distance without interference)
Resolution: 4096
Antenna: Single antenna(silicone antenna)
Operating Voltage: 3.5-9V/DC
Data Output: PWM
Temperature Range: -15℃~ +60℃
Humidity Range: 20% ~ 95%
Online Update: Yes
Dimensions: 19.0*12.5*7.0mm
Weight: 1.3g
Certification: CE, SRRC, FCC ID: 2A2UNGMR-C300
接收机 Receiver
陀螺仪焊点定义 /
Gyroscope Solder
Joint Definition
