Summary of Contents for Sencor X40

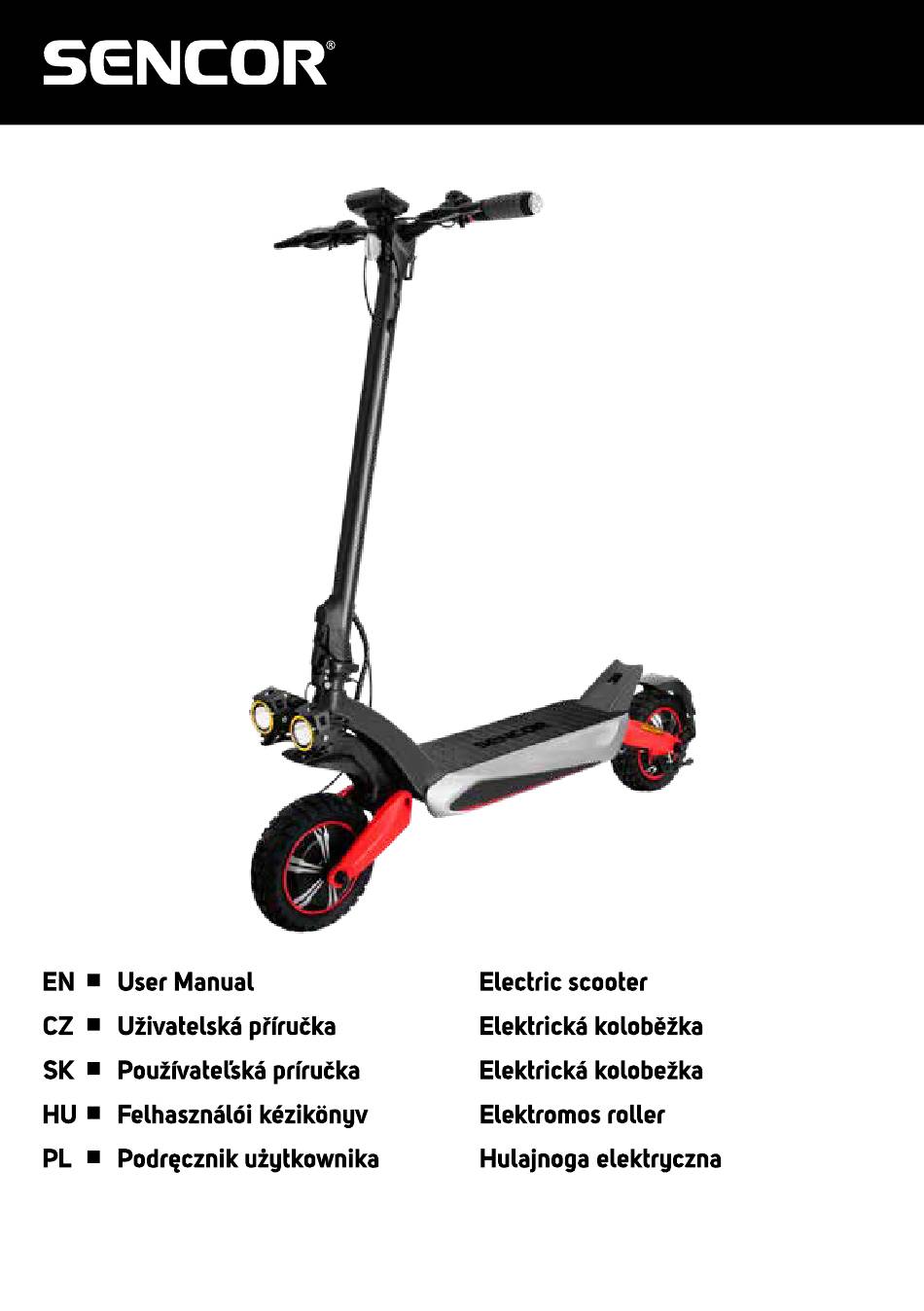

- Page 1 SCOOTER X40/X70...
-
Page 2: Table Of Contents
Table of Contents Package Contents ....................4 Description of the Electric Scooter SENCOR SCOOTER X40/X70 ......5 Settings via Mobile App Sencor Home ..............6 Controls ........................7 4.1. Function Controller ..................7 4.2. Display ......................8 4.3. Driving Modes ....................8 Starting the Operating Mode .................9 Before First Use .....................9... -
Page 3: Package Contents
1. Package Contents 1x Electric scooter SENCOR SCOOTER X40/X70 1x Charging adapter 1x Allen key 4x M5x25 Allen bolt 1x User's manual 1x Wheel inflation hose 1x Registration plate 1x Special wrench for tightening the front fitting 4 EN Revision 12/2024... -
Page 4: Description Of The Electric Scooter Sencor Scooter X40/X70
2. Description of the Electric Scooter SENCOR SCOOTER X40/X70 1 Function Controller qf LED effect 2 Hook for mounting in transport qg Footplate, battery compartment position qh Rear turn light 3 Speed control qj Rear footplate with a hole for a hook... -
Page 5: Settings Via Mobile App Sencor Home
• Download the app to your smartphone, register and set up your electric scooter. If you already have the SENCOR HOME app installed, add your electric scooter to • Instructions on how to use the application can be downloaded from https://www. -
Page 6: Controls
Marker lights – Switch on: Press 2x (if the main lights are off, they will turn on together with the marker lights) – Switch off: Press 3x Electric scooter on/off button (long press) 6 (X40) Display value change button Button to change the displayed values on the Display (short press); front... -
Page 7: Display
4.2. Display Active driving mode display Speed display (MPH; km/h):MAX – maximum speed reached AVG – average speed reached ERROR – display of the indicated error. Current speed reached (MPH; km/h) Total distance travelled counter Distance travelled counter (switch the electric scooter on/off to reset) Battery level indicator Active right turn light indicator 8 (X70) Number of drives started indicator... -
Page 8: Starting The Operating Mode
4) Release the brake lever. 5) The electric scooter switches to the last set driving mode. CAUTION: Always start the operating mode while the SCOOTER X40/X70 is not in motion. Start up to the operating mode gradually and slowly according to the instructions. -
Page 9: Assembling The Scooter X40/X70
7. Assembling the SCOOTER X40/X70 a) Unpack the electric scooter from the shipping box and remove all protective films. b) Unfold the handlebar A and unfold the handlebar B (see chapter Folding the Handlebars) into driving position. c) Insert the handlebars C onto the handlebar rod A. Screw on the attached screws D by hand and use appropriate wrench to tighten them firmly. -
Page 10: Charging
Handlebar assembly (operating position): Unhook the hook 2 from hole qj (main picture). Align the handlebar in a vertical position so that the handlebar can be secured in the operating position. Make sure that all levers are properly engaged and that the handlebar bar cannot be folded down. -
Page 11: Driving
CAUTION: For charging, use only the original accessories supplied with the device or the original charging adapter purchased. When the battery operating time becomes very short, the battery lifetime has been used up; we recommend that you have the battery replaced at your authorized centre. Do not charge your electric scooter in enclosed spaces and without supervision. -
Page 12: Safety Instructions
CAUTION: Never overload the SCOOTER X40/X70 electric scooter to avoid damaging, bending or breaking individual parts. Mechanical damage cannot be claimed under warranty repair. 11. Safety Instructions During each ride, use helmet and protectors to prevent injury in case of falling. -
Page 13: Maintenance And Adjustment
Always keep both feet on the scooter's footplate while riding. Operate the electric scooter in designated driving areas. Observe the local regulations of the regions, parks, cities and states where you want to operate the scooter. Do not turn sharply at high speeds. Do not ride one electric scooter with more than one person, even in the case of children. - Page 14 A) fine-tuning the brakes is done directly on the brake lever. Turning the smaller nut clockwise tightens the brake. Turning the smaller nut counterclockwise releases the brake. After successful adjustment, do not forget to fix the position with the larger nut. Tighten the larger nut counterclockwise towards the brake lever. B) tightening the brakes using brake cables.
- Page 15 Do not attempt to change the tyre without professional assistance. X40 – Front wheel removal – Release the front wheel using an 8mm Allen key and a 17mm side wrench. Carefully tap out the wheel axle from the brake disc side.
- Page 16 CAUTION: The front wheel nut A is fitted with a plastic anti-sag lining. It is recommended that the nut A be replaced with each wheel removal and installation to prevent loosening during operation. X70 – Remove the plastic nut caps using a blunt tool such as a flathead screwdriver.
- Page 17 CAUTION: The rear wheel will be held on the electric motor lead. Only a specialist service centre can disconnect the electric motor. Replacing the turn lights – Use extra caution when storing, putting away and dropping the electric scooter on objects that could damage the turn lights located at the end of the handlebars.
-
Page 18: Technical Specifications
Maximum speed up to 25 km/h (*up to 40 km/h) Travel range up to 65km Front and rear wheel suspension Aluminium framework SENCOR SCOOTER app available at Google Play and APP Store Front and rear LED light LED display (mode, speed, battery, lighting, Bluetooth) Turn signal indicators... - Page 19 Range up to 65 km using one engine (up to 45 km using two engines) Front and rear wheel suspension Aluminium framework SENCOR SCOOTER app available at Google Play and APP Store Front and rear LED light LED display (mode, speed, battery, lighting, Bluetooth)
- Page 20 Charging adapter Value and Accuracy Unit Manufacturer’s name or Manufacturer's name: trademark, company ID Jin Xin Yu Power(Shenzhen) and address Supply Co., Ltd. Add: 3-4F,No.38, Yuanxinlu, Tongle, Longgang Shenzhen, Guangdong,China Commercial registration number: 91440300360108074W Model identification code XVE126-5460200 Input voltage 100–240 Input frequency 50/60 Output voltage 54.6...
- Page 21 Tento symbol je platný v Evropské unii. Chcete-li tento výrobek zlikvidovat, vyžádejte si potřebné informace o správném způsobu likvidace od místních FAST ČR, a.s. hereby declares that the radio device type SCOOTER X40/X70 Tímto FAST CR a.s. prohlašuje, že typ rádiového zařízení Scooter One 2020 úřadů...
-
Page 22: Warranty Conditions
FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic info@sencor.com Authorized service centers: Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation. - Page 23 EU DECLARATION OF CONFORMITY Product / brand: ELECTRIC SCOOTER / SENCOR Type / model: SCOOTER X40 as factory model T2 DC 48,0V (Li-ion battery 18Ah); IPX5; Class III; L = 65dB(A) Freq.: 2402-2480MHz; max. output power 0,634mW Adapter (XVE126-5460200) Input AC 100-240;...
- Page 24 EU DECLARATION OF CONFORMITY Product / brand: ELECTRIC SCOOTER / SENCOR Type / model: SCOOTER X70 as factory model T2 DC 48,0V (Li-ion battery 18Ah); IPX5; Class III; L = 65dB(A) Freq.: 2402-2480MHz; max. output power 0,634mW Adapter (XVE126-5460200) Input AC 100-240;...
