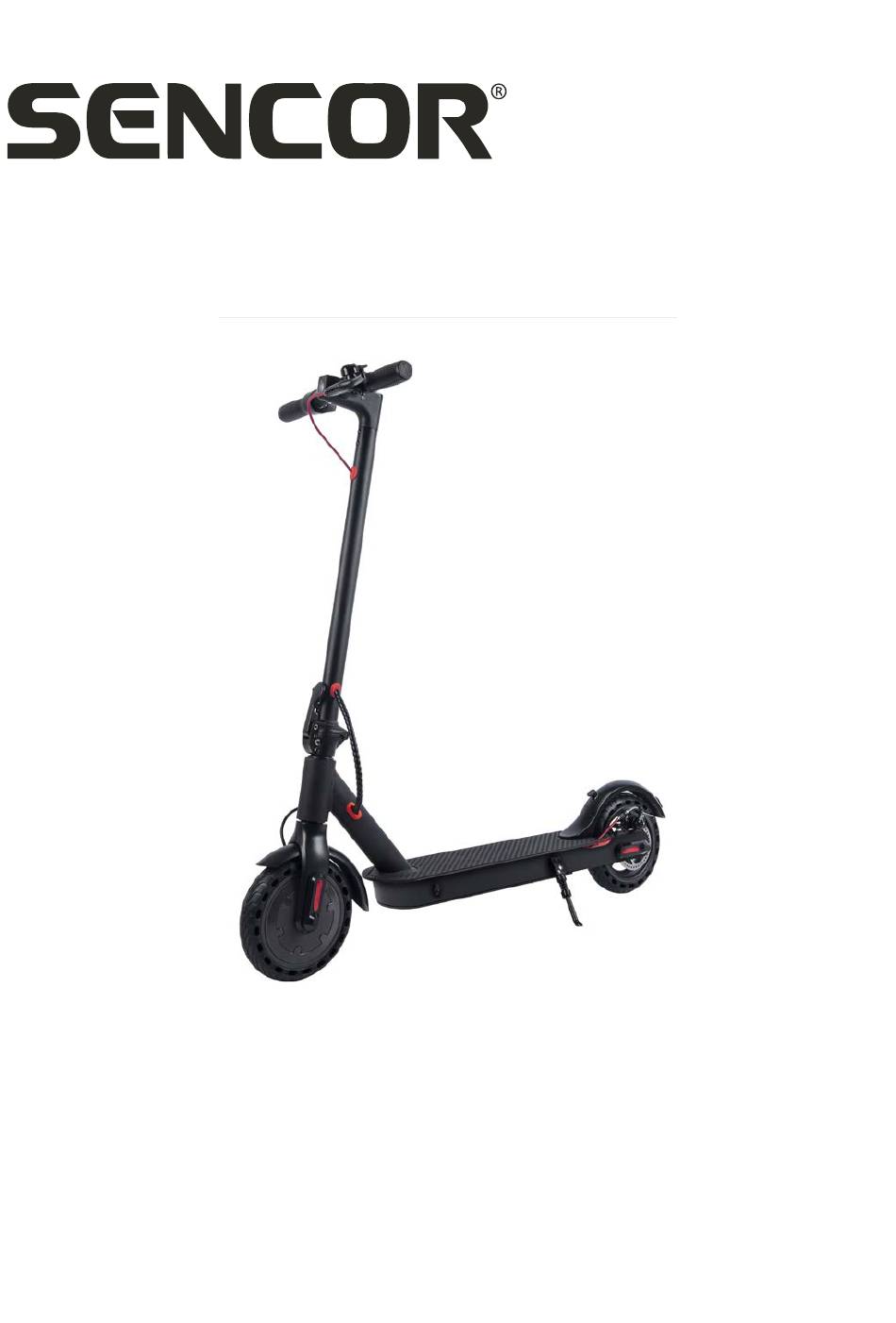

- Page 1 USER’S MANUAL Electric scooter Scooter ONE 2020...
-
Page 3: Table Of Contents
Contents Contents Package contents and scooter description ..................4 1.1. Package contents ............................4 1.2. Description of scooter Scooter One 2020 ................... 4 Control ................................5 2.1. Control panel and applications .......................5 2.2. Driving modes .............................5 2.3. Starting the operating mode ........................5 2.4. -
Page 4: Package Contents And Scooter Description

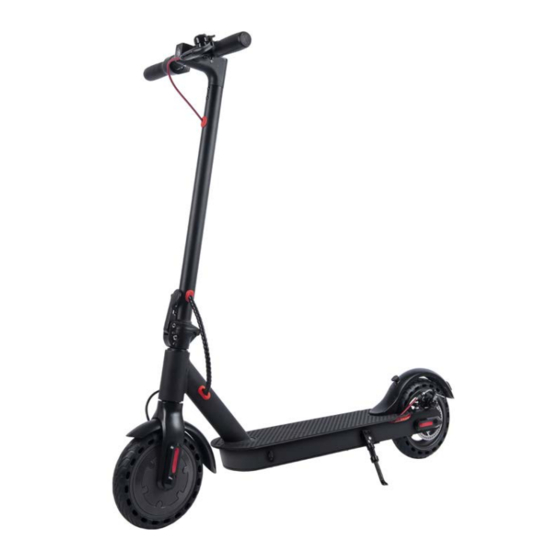

1× Electric scooter Scooter One 2020 1× Charging adapter 1× Set of Allen keys 4× Handlebar mounting screw 1× User’s Manual 1.2. Description of scooter Scooter One 2020 a Speed control k Notch for attaching the handlebar when folded b LED lamp l Mechanical disc brake... -
Page 5: Control
While using Scooter One 2020 you can also use the mobile app „SENCOR SCOOTER“, which can be downloaded from Google Play Store and Apple APP Store. For example, this app provides the users with an overview of mileage, cruise control and much more. -
Page 6: Multifunctional Button
Assembly of the scooter Scooter One 2020 WARNING: Always start the operating mode when the SENCOR SCOOTER ONE 2020 is not in motion. 2.4. Multifunctional button WARNING: Always adjust the driving functions before starting the ride. When switched off, press the multifunction button briefly to turn Scooter One 2020 When on, pressing and holding the multifunction button for 2 seconds turns Scooter One 2020 off. -
Page 7: Charging
Charging is carried out using the included charging adapter. First of all, uncover the rubber cap of the charging connector in Scooter One 2020 and connect the charging adapter. Then plug the adapter into your wall outlet. After the charging process is complete and the charging adapter is disconnected, cover the rubber cap of the charging connector again. -
Page 8: Battery Over-Discharge Protection
Battery over-discharge protection The charging indicator is located on the charging adapter and displays 2 states. Red LED: indicates battery charging process Green LED: indicates full battery charge ALERT: Use only the original accessories supplied with the device for charging. If the battery operating time is very short, the battery life is exhausted and we recommend that you have the battery replaced by an authorized service center. -
Page 9: Folding And Transport
Proper folding for transport To carry, hold the Scooter One 2020 by the handlebar tube. For more comfortable transport, we recommend holding the handlebar tube at a third of its length, on the side closer to the front wheel. -
Page 10: Driving Scooter One 2020
Driving Scooter One 2020 7. Driving Scooter One 2020 ALERT: • Put on a helmet and pads before each ride to prevent injury in the event of a fall. • Check that the mechanical brake is fully functional before each ride. -
Page 11: Safety Instructions
8. Safety instructions This Electric Scooter One 2020 is designed for fun and recreational use. This is not a means of transport. Observe the safety of everyone in both private and public areas, follow the instructions and local traffic regulations. -
Page 12: Maintenance And Adjustment
Maintenance and adjustment 9. Maintenance and adjustment The brake mechanism must be adjusted before the first ride. Contact a specialist provider (eg bicycle service) for proper adjustment. Adjustments cannot be made under warranty or post-warranty service at the manufacturer or distributor. If the brakes are too tight or too loose, use a 4mm Allen key and loosen the brake screw counterclockwise to adjust the length of the brake cable. -
Page 13: Technical Specifications
Technical specifications 10. Technical specifications Sencor Scooter ONE 2020 Key functions Range up to 25 km Aluminium frame Application SENCOR SCOOTER LED light LED Display (mode, speed, battery, lighting, Bluetooth) Drive Engine output 350 W mode SPORT up to 25 km/h... - Page 14 Technical specifications Input charging voltage 42 V Rated voltage 36 V Charging adapter Value and accuracy Unit Manufacturer's name or trademark, business Application company: Coming Data identification number and address Co.,Ltd ADD:5F-1 13 Wuchung 1RD Hsin Chung New Taipei 242 Taiwan. Manufacturer: Powsun Electronic Co.,Ltd ADD:1, Xingfa Road, ZhuWu YuLiangWei, QingXi Town, DongGuan GuangDong, China.
- Page 15 Technical specifications INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING Dispose of used packaging material at a place designated by the municipality for waste disposal. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on the products and / or accompanying documents means that used electrical and electronic products must not be disposed of with normal household waste For proper disposal, recovery and recycling, please take these products to designated collection points.
-
Page 16: Eu Declaration Of Conformity
EU Declaration of Conformity Product/Brand Electric scooter/SENCOR Type/model SCOOTER ONE 2020, production model E9 Battery (10S3P) DC 36 V; 9,7 A; 7,5 Ah; 350 W; IP54; Class III Adapter (FY0634201500) Input: AC 100-240 V; 50/60 Hz; 1,8A; IP20; Class II Output: DC 42,0 V;... - Page 17 Cases when the claiming product cannot be indentified according to the presented documents (e.g. the serial number or the warranty seal has been damaged). Authorized service centers Visit www.sencor.eu for detailed information about authorized service centers. EN 17 Copyright © 2021, Fast ČR, a. s.
