Summary of Contents for Sencor SCOOTER X50

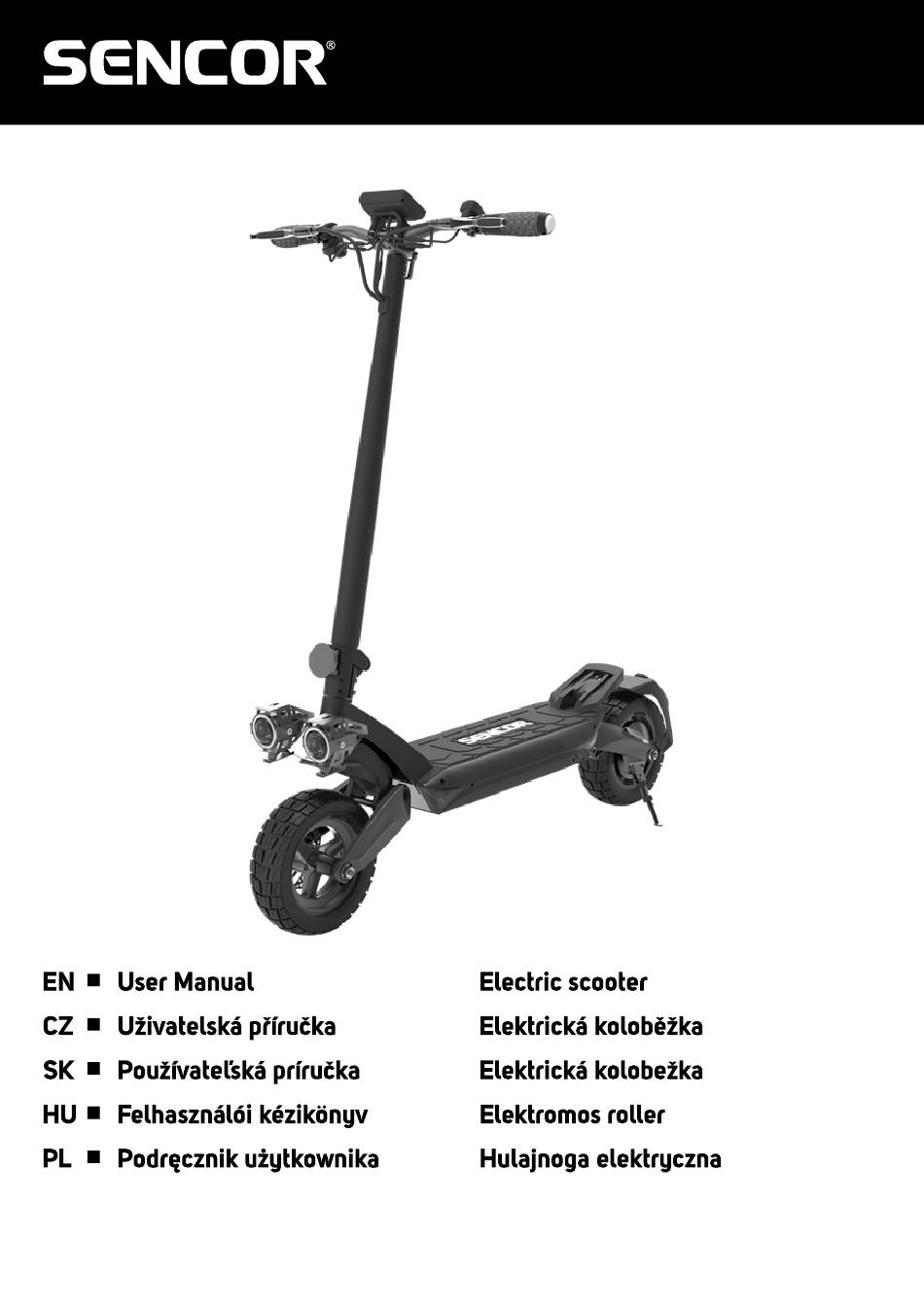

  • Page 1 SCOOTER X50...

  • Page 2: Table Of Contents

    Table of Contents Included Contents ....................4 SENCOR SCOOTER X50 Electric Scooter description ...........5 Settings via Mobile App ..................6 Controls ........................7 4.1. Function Controller ..................7 4.2. Display ......................8 4.3. Driving modes ....................8 Starting the Operating Mode .................9 Before First Use .....................9 Assembling the SCOOTER X50 ................10...

  • Page 3: Included Contents

    1. Included Contents 1x Electric scooter SENCOR SCOOTER X50 1x Charging adapter 1x Allen key 4x M5x25 Allen bolt 1× User's manual 4 EN Revision 12/2023 Copyright © 2023, Fast ČR, a. s.

  • Page 4: Sencor Scooter X50 Electric Scooter Description

    2. SENCOR SCOOTER X50 Electric Scooter description 1. Rear brake lever 15. LED effect 2. Front brake lever 16. Charging connector 3. Handlebar assembly 17. Rear turn light 4. Front lamps 18. Fold-out stand 5. Front wheel with disc brake 19.

  • Page 5: Settings Via Mobile App

    • Download the app to your smartphone, register and set up your electric scooter. If you already have the SENCOR HOME app installed, add your electric scooter to • Instructions on how to use the application can be downloaded from https://www.

  • Page 6: Controls

    4. Controls 4.1. Function Controller Honk button Drive mode change button Turn light switch: Left position - start left flashing turn light Middle position - off Right position - start right flashing turn light On/off button/light mode change Electric scooter on/off button Display value change button EN 7 Revision 12/2023...

  • Page 7: Display

    4.2. Display 1 Active driving mode display 2 Speed display (MPH; km/h): MAX – maximum speed reached AVG – average speed reached 3 Current speed reached (MPH; km/h) 4 Total distance travelled counter 5 Distance travelled counter (switch the electric scooter on/off to reset) 6 Battery level indicator 7 Active right turn light indicator 8 BLUETOOTH connected device indicator...

  • Page 8: Starting The Operating Mode

    4) Release the brake lever. 5) The electric scooter switches to the last set driving mode. CAUTION: Always start the operating mode while the SCOOTER X50 is not in motion. Start up to the operating mode gradually and slowly according to the instructions.

  • Page 9: Assembling The Scooter X50

    7. Assembling the SCOOTER X50 a) Unpack the electric scooter from the shipping box and remove all protective films. b) Unfold the handlebars A and tighten the handlebar folding mechanism B (see chapter Folding the Handlebars) into driving position. c) Insert the handlebars C onto the handlebar rod A. Screw on the attached screws D by hand and use appropriate wrench to tighten them firmly.

  • Page 10: Charging

    Carrying your electric scooter: To carry / load your electric scooter into a vehicle, always ask a second person for assistance. 9. Charging The charging is performed with the supplied charging adapter. The electric scooter has charging connectors on both sides of the rear footplate. If you purchase a second original charging adapter, you can charge the built-in battery from both charging adapters simultaneously for faster charging.

  • Page 11: Driving

    CAUTION: For charging, use only the original accessories supplied with the device or the original charging adapter purchased. When the battery operating time becomes very short, the battery lifetime has been used up; we recommend that you have the battery replaced at your authorized centre. Do not charge your electric scooter in enclosed spaces and without supervision.

  • Page 12: Safety Instructions

    CAUTION: Never overload the SCOOTER X50 electric scooter to avoid damaging, bending or breaking individual parts. Mechanical damage cannot be claimed under warranty repair. 11. Safety Instructions During each ride, use helmet and protectors to prevent injury in case of falling.

  • Page 13: Maintenance And Adjustment

    Operate the electric scooter in designated driving areas. Observe the local regulations of the regions, parks, cities and states where you want to operate the scooter. Do not turn sharply at high speeds. Do not ride one electric scooter with more than one person, even in the case of children.
  • Page 14 A) fine-tuning the brakes is done directly on the brake lever. Turning the smaller nut clockwise tightens the brake. Turning the smaller nut counterclockwise releases the brake. After successful adjustment, do not forget to fix the position with the larger nut. Tighten the larger nut counterclockwise towards the brake lever. B) tightening the brakes using brake cables.
  • Page 15 Tyres – Check the tyre pressure before each journey. The air pressure should be maintained between 2.2 and 2.4 bar. If the tyre pressure is lower, use a pump with a car valve end cap to inflate the tyre to the desired level. If the pressure is higher, release it to the desired value.
  • Page 16 Regularly check the condition of the tyres and patterns on both wheels. If the tyres are worn, they must be replaced immediately. Changing tyres – If a tyre is excessively worn or has a puncture, it must be replaced. Contact your service partner for a tyre change. The correct tyre size and pattern prescribed by the manufacturer must always be observed.
  • Page 17 CAUTION: The rear wheel will be held on the electric motor lead. Only a specialist service centre can disconnect the electric motor. Replacing the turn lights – Use extra caution when storing, putting away and dropping the electric scooter on objects that could damage the turn lights located at the end of the handlebars.

  • Page 18: Technical Specifications

    Maximum speed up to 25km/h Travel range up to 65km Front and rear wheel suspension Aluminium framework SENCOR SCOOTER app available at Google Play and APP Store Front and rear LED light LED display (mode, speed, battery, lighting, Bluetooth) Turn signal indicators...
  • Page 19 Technical Specifications Maximum load: 120 kg Dimensions: 123 x 65 x 135cm (unfolded) Dimensions: 123 x 65 x 52cm (folded) Weight: 25 kg Working temperature: 0 to 40°C Storage temperature: 0 to 45°C Noise level < 70 dB(A) Adapter Input voltage: 100–240V AC 50/60 Hz Input current: 2A Output voltage: 54.6V Connector: Φ...
  • Page 20 Charging adapter Value and Accuracy Unit Manufacturer’s name or Manufacturer's name: trademark, company ID Jin Xin Yu Power(Shenzhen) and address Supply Co., Ltd. Add: 3-4F,No.38, Yuanxinlu, Tongle, Longgang Shenzhen, Guangdong,China Commercial registration number: 91440300360108074 W Model identification code XVE126-5460200 Input voltage 100–240 Input frequency 50/60 Output voltage...
  • Page 21 FAST CR, a.s. hereby declares that the radio device type SCOOTER X50 úřadů nebo od svého prodejce. úřadů nebo od svého prodejce.
  • Page 22 Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
