P60ZLW
Waterproof IP65 LED 8*60w Zoom Par
User manual
Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P60ZLW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osram P60ZLW

Summary of Contents for Osram P60ZLW

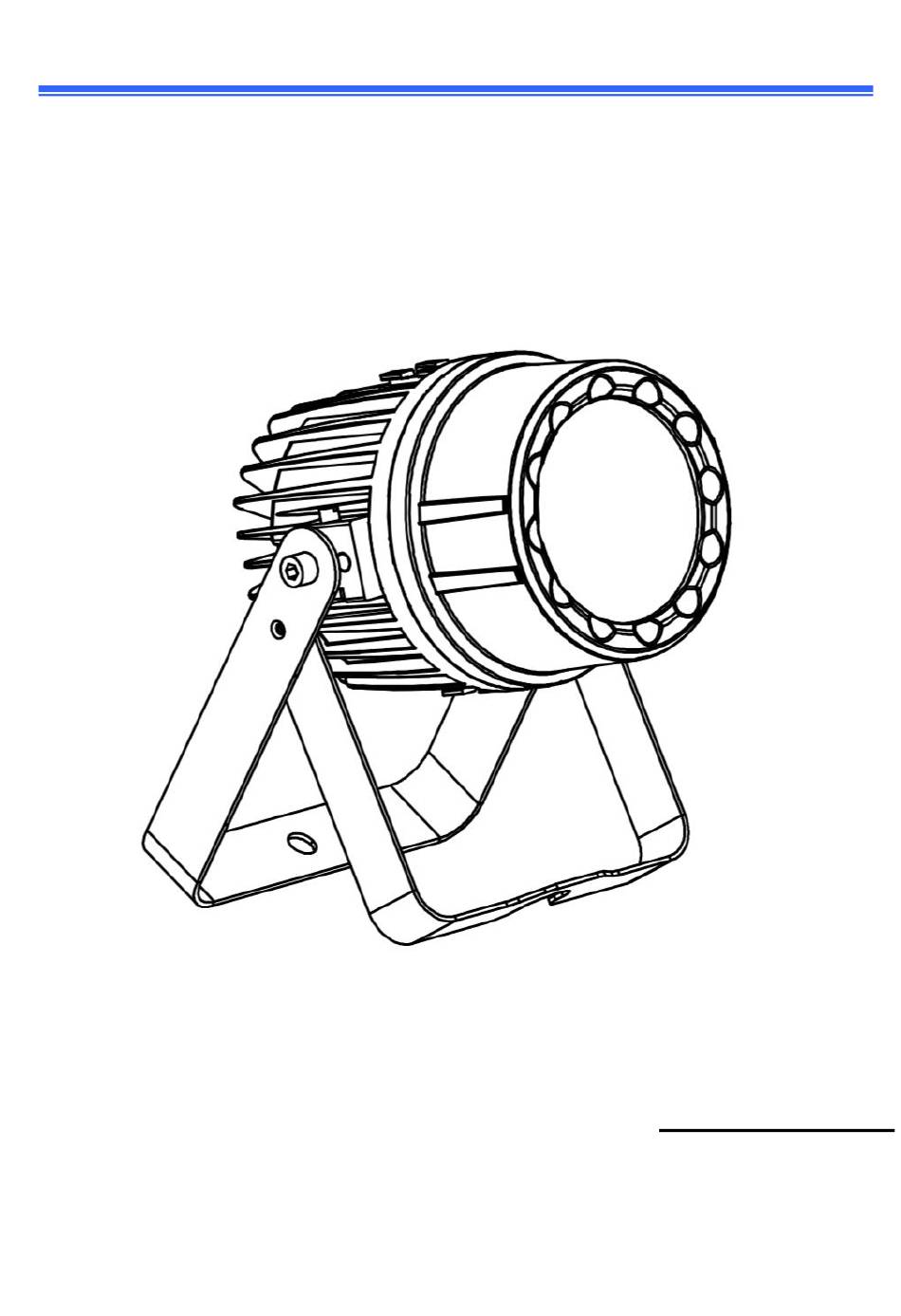

  • Page 1 P60ZLW Waterproof IP65 LED 8*60w Zoom Par User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ..................3-4 2. Technical Specifications ..................5 3. LUX Date ........................6 4. How To Control The Unit ..................7-9 5. Control Box information…………………………………………………………...10 6. DMX Channel List..................11-25 7. Shape........................25-26 8. Trouble shooting ....................26-27 9. Fixture Cleaning ...................... 28 statement The product has well capability and intact packing when leave factory.

  • Page 3: Safety Instructions

    1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before  using the unit. Before operating, ensure that the voltage and frequency of power supply ...
  • Page 4 Do not touch any wire during operation as high voltage might be causing  electric shock. Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the  unit to rain or moisture. Do not open the unit within five minutes after switching off. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Light Sources: 8*60W RGBW 4-in-1 LED Beam Angle:3.5°- 45° Power Consumption: 500w Power Voltage: AC 100-240V, 50/60Hz Control box weight: 2.55kgs Single lamp holder weight: 1.88kgs Single lamp holder with hanger weight: 2.55kg Single lamp head size: 181x140x140mm Control DMX Channel: 23/28/42/50/56 Channels Control Modes: DMX512/Master-Slave/Auto Run/Music/Manual/RDM...

  • Page 6: Lux Date

    3.Lux Date...

  • Page 7: How To Control The Unit

    4. How To Control The Unit Display: Connection control box use MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu"...
  • Page 8 High No Signal Black Out Select the state when the Hold luminaire has no Menu signal Reset Reset Default Reset Pass Word：**** Change the value of Pan/Tilt/Focus 1.Red：0--255 to correct the 2.Greed：0--255 angle; change 3.Blue：0--255 Adjust the value of R/G/B/W to 4.White ：...
  • Page 9 1.Master Sound Mode 2.Alone 1.Focus:0--255 Manual 2.Red：0--255 1.Master Manual control 3.Greed：0--255 2.Alone 4.Blue：0--255 5.White：0--255 6.Strobe：0-255 1. 23Channels 23 CH Select channel 2. 28Channels 28CH Channel mode 3. 42Channels 42CH 4. 50Channels 50CH 5. 56Channels 56CH...

  • Page 10: Control Box Information

    5.Control Box information...

  • Page 11: Dmx Channel List

    6.DMX Channel List Model 1 - CH23 Channel Function DMX value Description CH -1 Focusing 1 CH -2 Focusing 2 CH -3 Focusing 3 0--255 Beam angle from small to CH -4 Focusing 4 large CH -5 Focusing 5 CH -6 Focusing 6 CH -7 Focusing 7...
  • Page 12 56--75 R0%,G100%,B UP 76--95 R0%,G DOWM,B100% 96--115 R UP,G0%,B100% 116--135 R100%,G0%,B DOWM 136--155 R100%,G UP,B UP 156--175 DOWM,G DOWM,B100% 176--195 100%,G CH -16 Color 100%,B100%,W100%R temperature 100%,G 100%,B100%,W100% 196--200 2800K 201--205 3200K 206--210 3500K 211--215 4000K 216--220 4500K 221--225 5000K 226--230 5500K 231--235...
  • Page 13 selection CH -19 Pattern Pattern effect red background R CH -20 Pattern Pattern effect green 0--255 background G CH -21 Pattern Pattern effect blue background B CH -22 Pattern Pattern effect white background W CH -23 Reset 0--250 No function 251--255 Reset 5s is valid Model 2 - CH28...
  • Page 14 136--155 R100%,G UP,B UP 156--175 DOWM,G DOWM,B100% 176--195 100%,G 100%,B100%,W100%R 100%,G 100%,B100%,W100% 196--200 2800K 201--205 3200K Color 206--210 3500K CH -9 temperature 211--215 4000K 216--220 4500K 221--225 5000K 226--230 5500K 231--235 6000K 236--240 6500K 241--245 7000K 246--250 7500K 251--255 8000K 0--9 No effect 10--19...
  • Page 15 CH -12 Dimming 0--255 Linear dimming dark to light CH -13 Dimming fine 0--255 Dimming fine-tuning tuning control 0--49 Mode 1 CH -14 Dimming mode 50--99 Mode 2 100--149 Mode 3 150--255 Mode 4 CH -15 Zoom 0--255 Zoom 0--9 No effect 10--14 Monochrome...
  • Page 16 numbers) 160--164 Monochrome dynamic CH -16 Pattern change pattern 9 (5effects) 165--169 Mixed color dynamic pattern 1 170--174 Mixed color dynamic pattern 2 ...(5 ..numbers) 180--184 Mixed color dynamic pattern 4 Random change 185--255 Random change 0--9 No effect 10--132 Forward, from fast to slow CH -17...
  • Page 17 CH -25 Background Background 0-100% dimming dimming 0--255 CH -26 Strobe Strobe in the foreground foreground CH -27 Background Background strobe strobe CH -28 Reset 0--250 No function 251--255 Reset 5s is valid Model 3 - CH42 Channel Function DMX value Description CH -1 Focusing 1...
  • Page 18 0--49 Mode 1 CH -15 Dimming mode 50--99 Mode 2 100--149 Mode 3 150--255 Mode 4 0--15 No effect 16--35 R100%,G UP,B0% 36--55 R DOWM,G100%,B0% 56--75 R0%,G100%,B UP 76--95 R0%,G DOWM,B100% 96--115 R UP,G0%,B100% 116--135 R100%,G0%,B DOWM 136--155 R100%,G UP,B UP 156--175 DOWM,G DOWM,B100%...
  • Page 19 10--19 Macro color 1 20--29 Macro color 2 CH -17 Macro color ...(10 ..numbers) 240--249 Macro color 23 250--255 Macro color 24 CH -18 R1LED dimming R1LED dimming CH -19 G1LED dimming G1LED dimming 0--255 CH -20 B1LED dimming B1LED dimming CH -21 R2LEDdimming...
  • Page 20 CH -7 Focusing 7 CH -8 Focusing 8 Dimming Linear dimming dark to CH -9 0--255 light 0--3 Lighting Synchronous strobe Strobe CH -10 4--203 speed from slow to fast (1HZ-25HZ) 204--255 Random strobe CH -11 Red dimming 0--255 Linear dimming from dark CH -12 Green dimming to light...
  • Page 21 206--210 3500K 211--215 4000K 216--220 4500K 221--225 5000K CH -16 Color 226--230 5500K temperature 231--235 6000K 236--240 6500K 241--245 7000K 246--250 7500K 251--255 8000K 0--9 No effect 10--19 Macro color 1 20--29 Macro color 2 CH -17 Macro color ...(10 ..
  • Page 22 Channel Function DMX value Description CH -1 LED 1 Dimming 0--255 Linear dimming from dark to light 0--3 Lighting CH -2 Synchronous strobe speed LED 1 Strobe 4--203 from slow fast (1HZ-25HZ) 204--255 Random strobe CH -3 R1 LED Dimming 0--255 R1 LED Dimming CH -4...
  • Page 23 204--255 Random strobe CH -17 R3 LED Dimming 0--255 R3 LED Dimming CH -18 G3 LED Dimming 0--255 G3 LED Dimming CH -19 B3 LED Dimming 0--255 B3 LED Dimming CH -20 W3 LED 0--255 W3 LED Dimming Dimming CH -21 LED 3 Focusing 0--255 LED 3 Focusing...
  • Page 24 CH -36 LED 6 Dimming 0--255 LED 6 Dimming 0--3 Lighting Synchronous strobe speed CH -37 LED 6 Strobe 4--203 from slow fast (1HZ-25HZ) 204--255 Random strobe CH -38 R6 LED Dimming 0--255 R6 LED Dimming CH -39 G6 LED Dimming 0--255 G6 LED Dimming CH -40...

  • Page 25: Shape

    CH -53 G8 LED Dimming 0--255 G8 LED Dimming CH -54 B8 LED Dimming 0--255 B8 LED Dimming CH -55 W8 LED 0--255 W8 LED Dimming Dimming CH -56 LED 8 Focusing 0--255 LED 8 Focusing 7.Shape...

  • Page 26: Trouble Shooting

    8. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse.

  • Page 27: Fixture Cleaning

    2. Measure the mains voltage on the main connector. 3. Check the power on LED. B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.
  • Page 28  Clean with soft cloth using normal glass cleaning fluid.  Always dry the parts carefully.  Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
