Summary of Contents for U.S. Solid JFESM00012

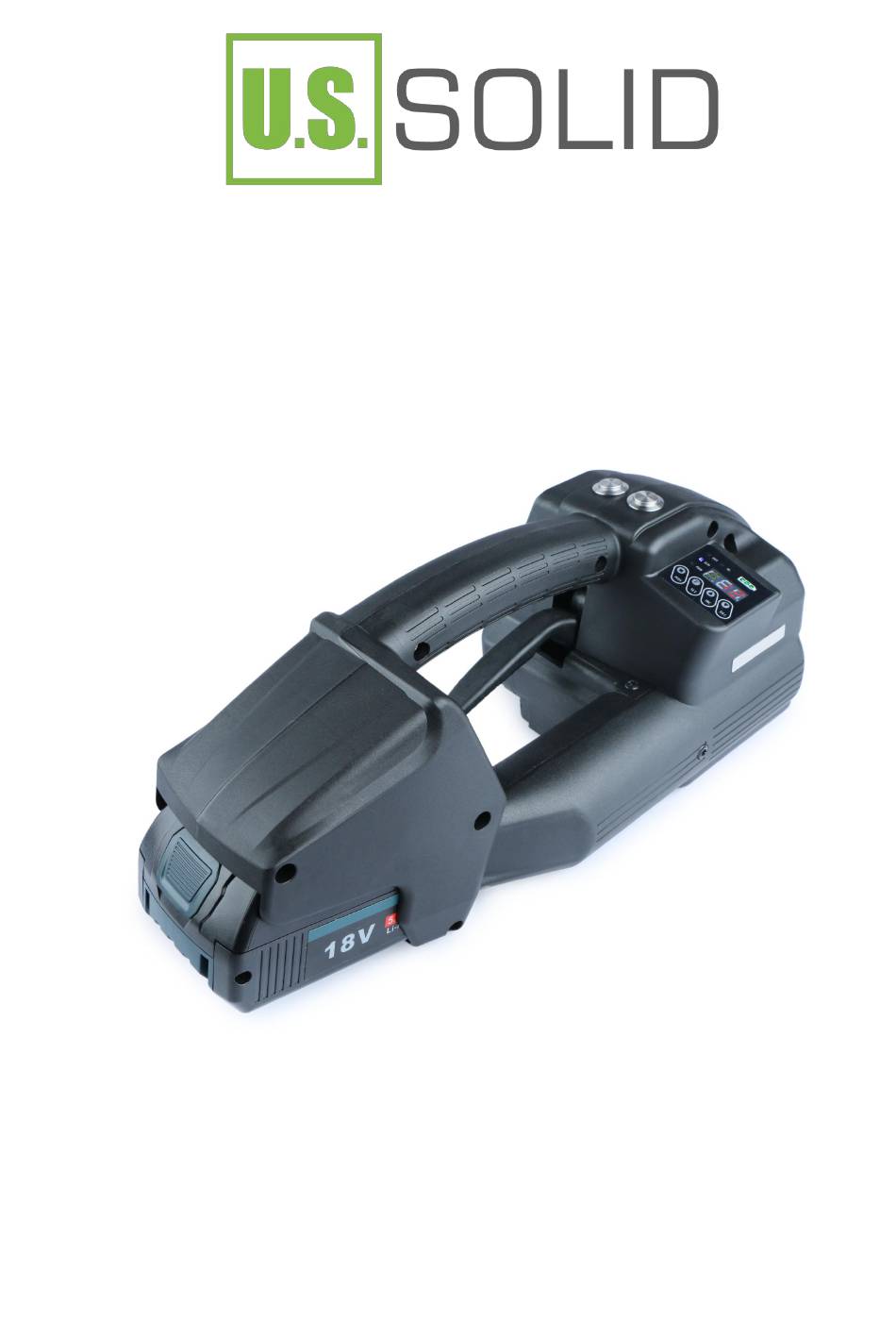

- Page 1 ELECTRIC STRAPPING MACHINE MANUAL NO. 8336...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTION .............1 TECHNICAL PARAMETERS ..........5 ACCESSORY ..............7 OPERATING ELEMENTS ...........8 OPERATION ...............9 WORN PARTS REPLACEMENT ........18 COMMON FAULTS ............20... -
Page 3: Safety Instruction
SAFETY INSTRUCTION Please read the matters carefully, if not follow this prompt, it is possible to cause operator injury during operation. 1.1 Battery operation Environmental protection: 1) Please do not put used batteries into household trash can, waste water tank, or burn them. 2) Dealers provide battery environmental treatment services. - Page 4 1.3 Operation Personnel who are not properly trained are not allowed to operate the strapping tool. Before straining straps read and correctly understand the operating instructions. If you do not follow the operating instructions or improperly load the straps, it will cause straps damaged.
- Page 5 1.6 Straps warning Do not use straps to drag or lift load, which easily lead to personal injury. 1.7 Straps broken hazard Improper operation, excessive tensioning, using straps not as requires, load sharp corner will cause tightening force lose, or straps broken could eventually: The operator loses his balance and falls down.
- Page 6 1.8 Tensioning straps shearing When shearing straps, please use a suitable shearing tool, and ensure a safe distance with people, and do not stand on the same straight line with straps, and keep away from the straps loose direction. Please use the special tool for shearing the straps. It is not allowed to use a hammer, pliers, hacksaw, axes and so on.
-
Page 7: Technical Parameters
TECHNICAL PARAMETERS 2.1 Description Manufactured strapping tool is using plastic straps. Manually use strap feeding device to wind the plastic straps around the box (bag). Straps end is inserted into strapping tool and automatically tensioned, separate after friction adhesion. 2.2 Size of strapping tool with battery Length: 370mm width: 140mm... - Page 8 2.4 Straps strength Tensile strength: 400-3500N adjustable. (Maximum value depends on the quality of straps.) Tensioning speed: 100-200mm/s Adhesive strength: about 75%of plastic straps. (Depending on the quality of straps) 2.5 Working temperature Ambient air temperature is 41℉— 113℉. Optimum working temperature is 59℉ — 68℉.
-
Page 9: Accessory
ACCESSORY Please use the parts and accessories that mentioned in the operating instructions. To use other accessories may hurt you and others. 3.1 Battery powered strapping tool As some strapping tools may use NiCd (nickel cadmium) or NiMH (nickel metal hydride) batteries, please purchase the battery for this tool according to the following parameters. -
Page 10: Operating Elements
OPERATING ELEMENTS Diode status indication Green Normal working Red flashing Low battery, please charge Red on Machine failure, power off inspection Purple on Work finish... -
Page 11: Operation
OPERATION 5.1 Installation 1) Please do not put the strapping tools in the rain! 2) For security, the battery is not charged when delivery. 3) Before using, please charge. Insert the battery: 1) Push the battery box cover assembly upward by arrow direction, and insert the battery into slot from up to down. - Page 12 5.2 Operation function description 5.2.1 Switching between normal mode and flexible mode: in normal mode (H--)：press the tightening gear button for 3s to enter the flexible mode (L--). There are 9 gears in the flexible mode, with the tension range of 400-1600N; in the flexible mode, press the tension gear button for 3s to switch into the normal mode (H--).
- Page 13 5.2.2.3 when manual mode (MAN) is used, the tension button shall be pressed and pressed all the time. When the set pull value is reached, the fusion button must be pressed, and the beft shall be fused and cut manually. 5.2.3 Tension adjustment: press SET key briefly to adjust the tension gear (9 gears are used in a total, the tension in the first gear is the minimum and the tension in the ninth gear is the...
- Page 14 accumulated welding times, press MODE to cycle the display of values, and press any other key to return to the main interface. Note: The machine settings: 1. In the no-packing operation state after 120 seconds , the machine will get into sleep. If you want to wake it up, please press the tensioning button gently (the silver button on the right side of the handle).
- Page 16 a. Straps winding Wind the straps as shown in the figure. Warning! Keep away from oil, grease and other dirt when welding plastic straps. Dirty straps can't be welded. b. Straps inserting Lift the handle with your right hand, insert straps with left hand stack the two pieces horizontally, release the handle.
- Page 17 c. Straps tensioning Press the tensioning button, after reaching straps tensioning strength, then release the switch knob. Remark: Press tensioning button all the time until the LED displays in purple, tightening protection doesn't affect next step. Keep strapping tools equilibrium shifting when tensioning. So please do not obstruct moving direction of the strapping tool.
- Page 18 e. Remove strapping tool Lift the handle and loose straps, pull the machine to right side and away from the straps. Remark: Automatic mode, only need to operate a, b, c, e. When the strapping machine is stuck and not moving, you must first pull out the battery, then cut the strapping strap, remove the panel screws, and then remove the strapping strap.
- Page 19 5.3 Adhesion control Correct adhesion: Weld the entire width of strap, the welding length is about 19 mm. A small amount of molten plastic is allowed to overflow the edge. Welding time is too short: The entire width is not welded and the adhesion is insufficient. WARNING! Straps with insufficient welding must be removed.
-
Page 20: Worn Parts Replacement
WORN PARTS REPLACEMENT Every time maintenance, please remove the battery. Cutter: first remove the left shield screw and remove it. Then remove the screw on the cutter and remove il. Take out the cutter, Keep the cutter spring; install in reverse order. Welding tooth plate: remove the fixing screw of the fusion lower tooth plate to remove the fusion lower tooth plate;... -
Page 22: Common Faults
COMMON FAULTS 1. Special reason: If the machine stuck in strapping process, which results straps stuck in the machine and can't be removed. Immediately cut off power, cut the straps, remove the screws on the left and right panel covers and move, remove the straps, and check the machine. - Page 23 Machine fault code description: E0.2 Tape take-up and tensioning motor timeout fault (not completed for more than 10 seconds) E0.3 Belt take-up and tensioning motor short circuit fault E0.4 Abnormal hall fault of take-up and tensioning motor / abnormal current induction fault of take-up and tensioning motor E0.5 Bonding and welding motor short circuit fault E0.6...
- Page 24 Contact Feel free to visit our website: www.ussolid.com You can also email us at: service@ussolid.com...
