ELECTRIC STRAPPING MACHINE
MANUAL NO. 8439

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JFESM00016 and is the answer not in the manual?

Questions and answers

Related Manuals for U.S. Solid JFESM00016

Summary of Contents for U.S. Solid JFESM00016

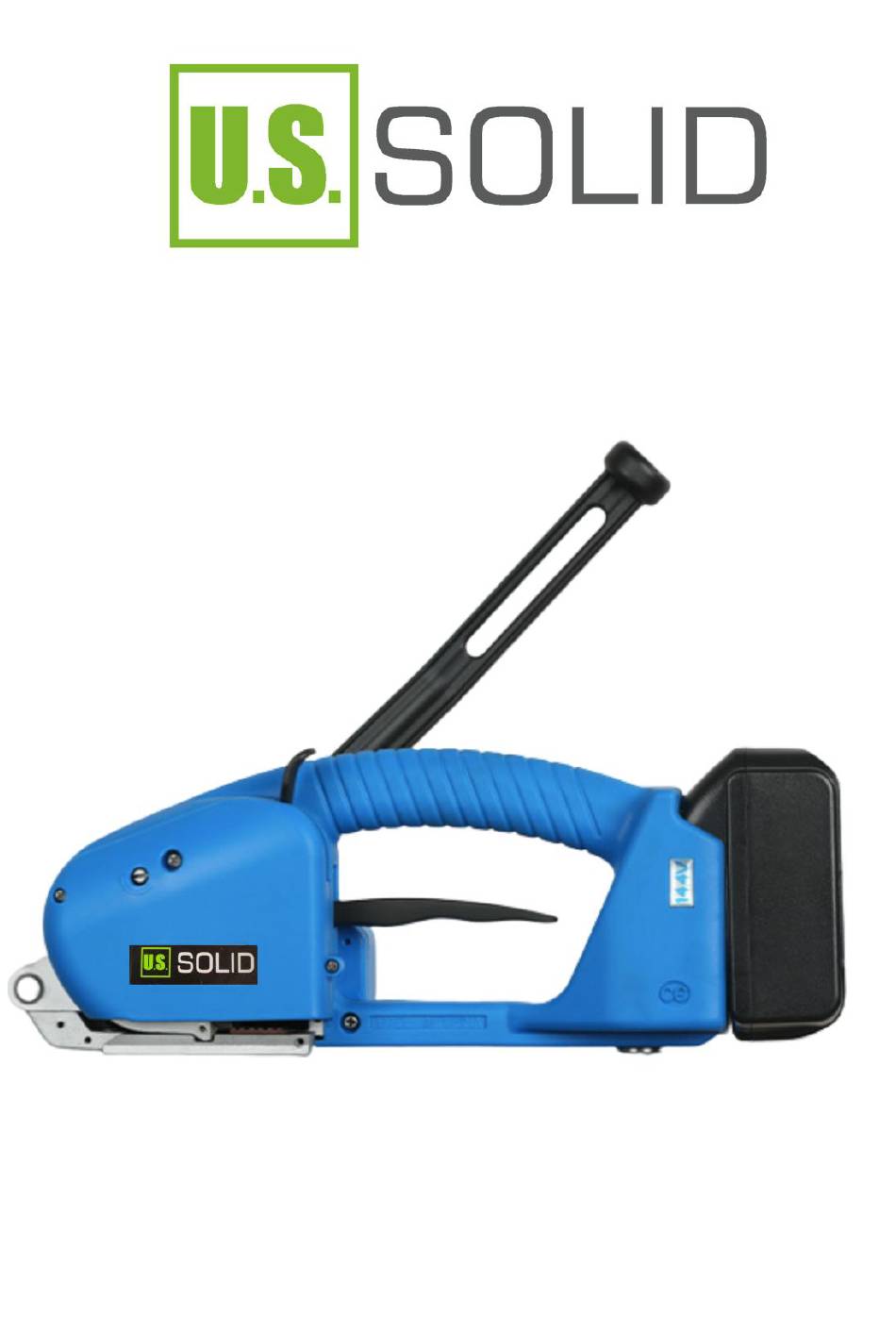

  • Page 1 ELECTRIC STRAPPING MACHINE MANUAL NO. 8439...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTION ......1 TECHNICAL PARAMETERS ......5 ACCESSORY ..........7 OPERATING ELEMENTS ......8 OPERATION ..........9...

  • Page 3: Safety Instruction

    SAFETY INSTRUCTION Please read the instructions carefully. Not following this prompt could result in operator injury during the operation. 1. BATTERY OPERATION Environmental protection 1) Please do not burn used batteries or put them into a household trash can or waste water tank. 2) Dealers provide environment-friendly battery recycling services.
  • Page 4 3. OPERATION Improperly trained personnel are not allowed to operate the strapping tool. Carefully read and understand the operating instructions before using the strapping tool. If you do not follow the operating instructions or improperly load the straps, it will cause strap damage. If you are not familiar with the strapping tool, please keep your fingers far away from the squeezing or cutting areas.
  • Page 5 7. BROKEN STRAP HAZARD Improper operation, excessive tensioning, or improper use of straps will loosen the tightened parts of the machine and eventually lead to straps breakdown. When this happens, the operator loses balance and falls, and the strapping tool and straps quickly fly to the operator's face. Attention: 1) If the load angle is very sharp, please add edge protection.

  • Page 6: Fall Hazard

    straps, and keep away from the straps loosening direction. Please use the special tool for shearing straps. Do not use a hammer, plier, hacksaw, axe, and so on. 9. FALL HAZARD Keep your work area clean and tidy. An untidy work area is likely to cause an accident.

  • Page 7: Technical Parameters

    Weight: 2.75 kg Battery weight: 0.46kg 3. STRAP MATERIAL Quality: flat or embossed PET (Recommended to use with U.S. SOLID PET strapping). You can search for polyester PET strapping roll and PP (polypropylene) straps in our store. Straps specifications: width 13-16mm, thickness 0.4-1.2mm.

  • Page 8: Working Temperature

    4. STRAP STRENGTH Tensile strength: 60-2100N adjustable (Maximum value depends on the quality of the straps) Tensioning speed: 66mm/s Adhesive strength: about 75% of the plastic strap (Depending on the quality of the straps) 5. WORKING TEMPERATURE • Ambient air temperature is 5 to 45 (41℉...

  • Page 9: Battery Charger

    ACCESSORY Please use the parts and accessories specified in the operating instructions. Using other accessories may hurt you and others. 1. BATTERY POWERED STRAPPING TOOL Some strapping tools may use NiCd (nickel-cadmium) or NiMH (nickel metal hydride) batteries; please purchase the battery for this tool according to the following parameters.

  • Page 10: Operating Elements

    OPERATING ELEMENTS...

  • Page 11: Installation

    OPERATION 1. INSTALLATION 1) Please do not put the strapping tools in the rain! 2) For security, the battery is not charged before delivery. 3) Please charge the battery before using it. Refer to the battery charging instruction manual. Battery disassembly *Do not leave baler batteries in the rain or water.
  • Page 12 Insufficient Adhesion Warning: If the adhesion is not sufficient, please remove the straps ! The battery must be charged. BATTERY DISASSEMBLY DIAGRAM...
  • Page 13 Wind the straps as shown in the diagram (The strap that needs to be cut is stacked on top).This strapping machine is installed by default with a spring that fuses the PET strap (Recommended to use U.S. SOLID PET strapping, you can search for polyester PET strapping roll in our store). If you use PP straps, please replace another spring we have prepared for you.
  • Page 14 3.STRAP INSERTION When inserting the straps, the straps in the direction of tension must be stacked at the top end, the bottom straps should be stretched to the bottom of the binding wheel to cover the front of the tooth plate 5-10MM longer, when inserting the straps,please lift the handle with your right hand, insert the straps with your left hand, the upper and lower ends of straps must be stacked parallel to each other after...
  • Page 15 4.STRAP TENSIONING After the strap is installed well, hold the baler handle in one hand, hold the tightening rocker in the other hand, while pulling the rocker backwards to the tail end limit mechanism, then push the tightening rocker forwards to the front section limit mechanism, repeat pulling the rocker backwards and forwards several times until the strap is tightened to the ideal state,then release the rocker .
  • Page 16 5.WELDING After pressing welding the button, the baler automatically seals and bonds straps(the time is preset by the system and can be increased or decreased clockwise or counterclockwise as required). The welding will be completed after the machine indicator light stops flashing.The excess straps is automatically cutting off.
  • Page 17 6.REMOVE STRAPPING TOOL Lift the handle and loosen the straps; pull the machine to the right side and away from the straps.
  • Page 18 7.ADHESION CONTROL Normal adhesion control is necessary. You can see the quality of the adhesion with the eyes as shown in the following diagrams:...
  • Page 19 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com...
