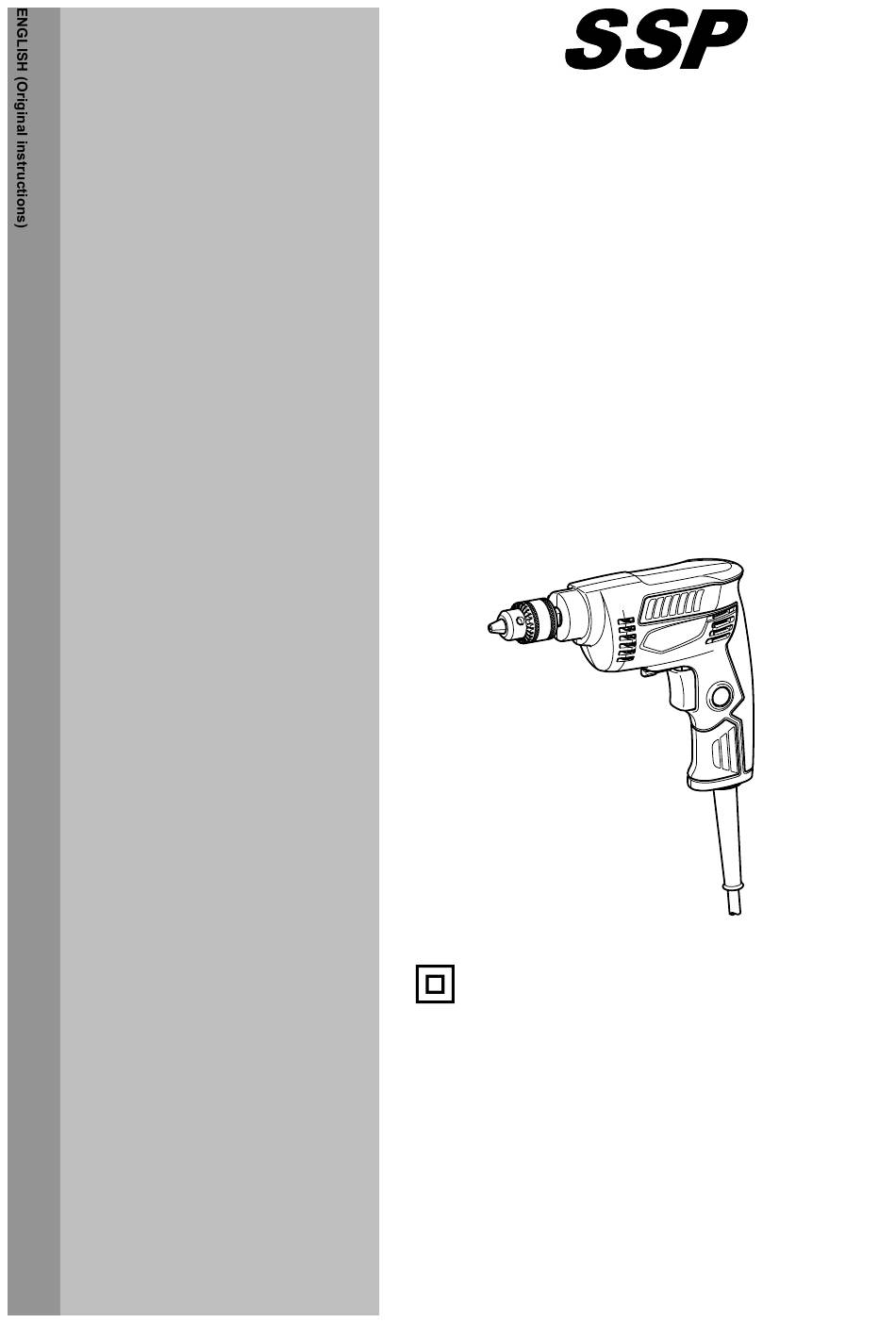

- Page 1 INSTRUCTION MANUAL High Speed Drill MDP204 MDP205 013474 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MDP204 MDP205 Steel 6.5 mm Capacities Wood 9 mm No load speed (min 4,500 0 - 4,500 Overall length 200 mm 203 mm Net weight 0.92 kg 0.95 kg Safety class • Due to our continuing program of research and development, the specifications herein are subject to change without notice. -
Page 3: Drill Safety Warnings
If operating a power tool in a damp location is accessories, or storing power tools. Such unavoidable, use a residual current device preventive safety measures reduce the risk of (RCD) protected supply. Use of an RCD starting the power tool accidentally. reduces the risk of electric shock. -
Page 4: Functional Description
To stop the tool from the locked position, pull the switch trigger fully, then release it. Reversing switch action (For Model MDP205) 1. Reversing switch lever 013477 This tool has a reversing switch to change the direction of rotation. -
Page 5: Operation
Always hold the tool only by the handle when • If you need any assistance for more details regarding performing an operation. Do not touch the metal these accessories, ask your local Makita Service Center. part. Chuck key • Drilling operation Chuck key holder •... - Page 8 Makita Corporation www.makita.com 885186A922...
