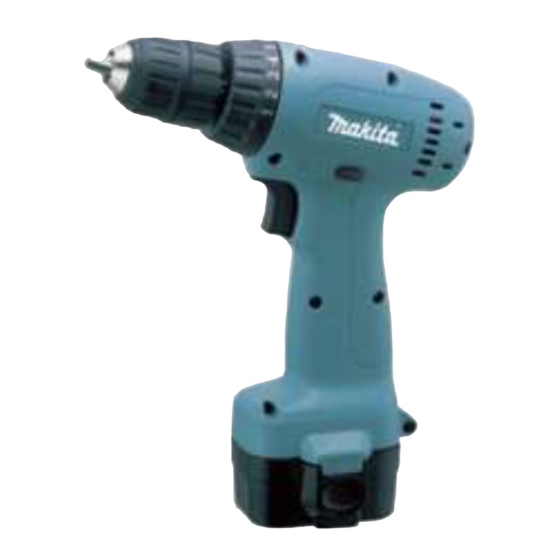

- Page 1 INSTRUCTION MANUAL Cordless Driver Drill MDF320D MDF330D 003347 WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 2 ENGLISH SPECIFICATIONS Model MDF320D MDF330D Steel 10 mm 10 mm Wood 21 mm 24 mm Capacities Wood screw 5.1 x 38 mm 5.1 x 63 mm Machine screw 6 mm 6 mm High: 0 - 1,000 High: 0 - 1,000...
- Page 3 Avoid accidental starting. Ensure the switch is conditions and the work to be performed. Use in the off-position before plugging in. Carrying of the power tool for operations different from power tools with your finger on the switch or those intended could result in a hazardous plugging in power tools that have the switch on situation.
- Page 4 Keep hands away from rotating parts. Do not incinerate the battery cartridge even if Do not leave the tool running. Operate the tool it is severely damaged or is completely worn only when hand-held. out. The battery cartridge can explode in a fire. Do not touch the drill bit or the workpiece Be careful not to drop or strike battery.
- Page 5 Do not use force when inserting the battery Speed change • cartridge. If the cartridge does not slide in easily, it 1. Speed change is not being inserted correctly. lever Switch action 1. Switch trigger 003353 To change the speed, first switch off the tool and then slide the speed change lever to the upper side for high 003351 speed ("2"...
- Page 6 NOTE: Nominal diameter of wood screw Recommended size ofpilot hole (mm) (mm) Do not operate the tool with the adjusting ring set • 2.0 - 2.2 between the number 19 and the marking. The 2.2 - 2.5 tool may be damaged. 2.5 - 2.8 ASSEMBLY 2.9 - 3.2...
- Page 7 Always be sure that the tool is switched off and the • battery cartridge is removed before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.
- Page 8 Makita Corporation Anjo, Aichi, Japan 884743-0...
