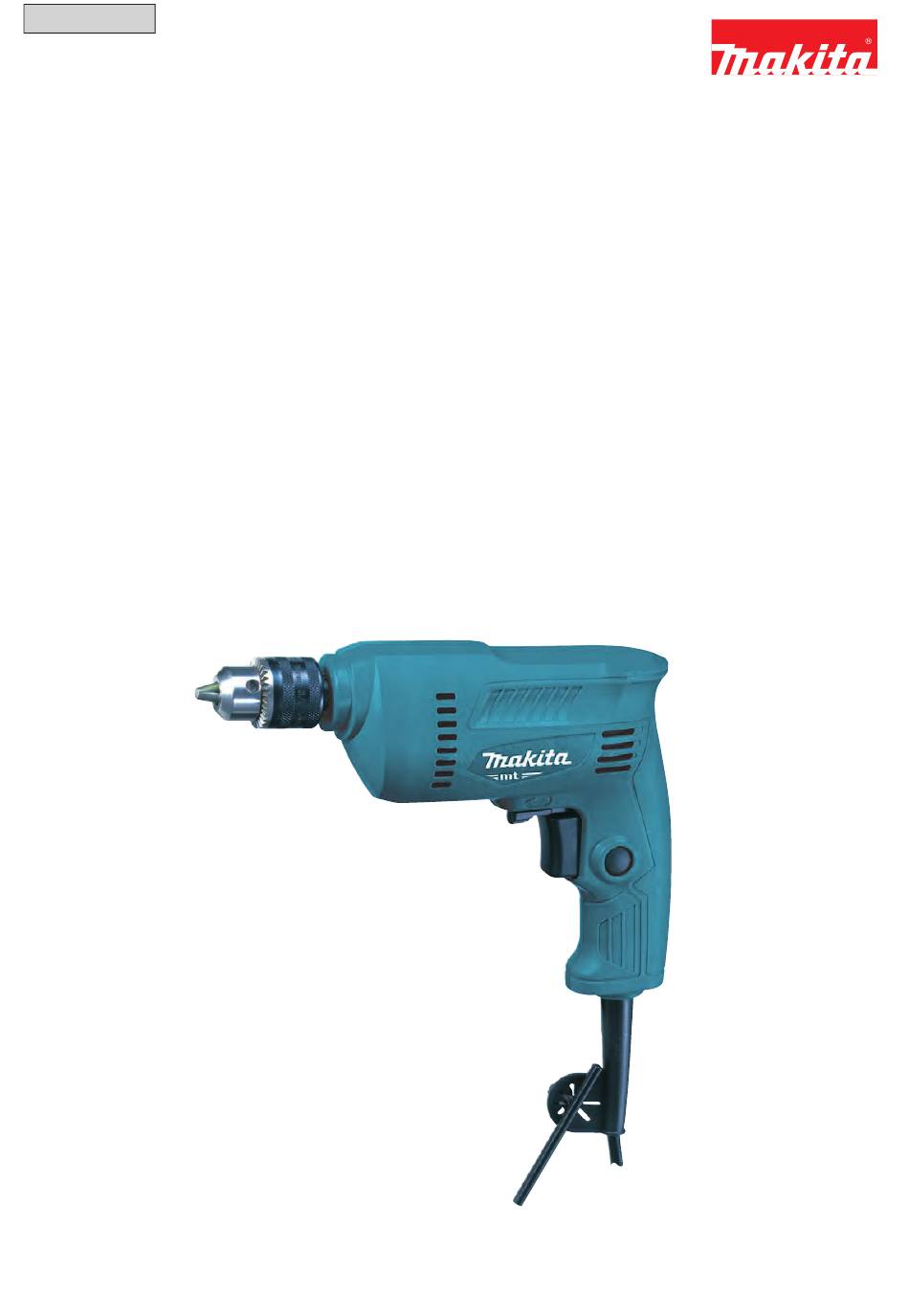

- Page 1 OFFICIAL USE For ASC Drill M0600B REPAIR MANUAL...
- Page 2 Housing set Gear room where Helical gear 35 rotates Makita grease FA No.2 Fig. 1 : Makita grease FA No.2 (3g) [3] DISASSEMBLY/ASSEMBLY [3]-1. Drill Chuck DISASSEMBLING Remove Drill chuck using Hex wrench and Hammer as described in Fig. 2.
-
Page 3: Drill Chuck
P 3/ 7 epair [3] DISASSEMBLY/ASSEMBLY [3]-1. Drill Chuck ASSEMBLING Do the reverse of the disassembling steps. [3]-2. Spindle and Helical Gear 35 DISASSEMBLING (1) Remove Drill chuck. (Fig. 2) (2) Remove Spindle section from Housing (L), then disassemble Spindle from Helical gear 35. (Fig. 3) Fig. - Page 4 P 4/ 7 epair [3] DISASSEMBLY/ASSEMBLY [3]-2. Spindle and Helical Gear 35 DISASSEMBLING (3) Remove Ball bearing 6001ZZ. Fig. 4 Fig. 4 7. Remove Ring spring 11 with 1R004 8. Remove Ball bearing 6001ZZ with 1R269. or 1R003 by replacing their tips with 1R212-A and 1R212-B.
-
Page 5: Circuit Diagram
P 5/ 7 ircuit diagram For High voltage countries Color index of lead wires' sheath Insulated terminal (M3.5) Black 18 AWG* White Orange 20 AWG* Purple Choke coil (if used) Field viewed from Commutator end 20 AWG* [Housing L side] [Housing R side] 18 AWG* Insulated terminal (M3.5) - Page 6 P 6/ 7 ircuit diagram For Low voltage countries Color index of lead wires' sheath Insulated terminal (M3.5) Black 18 AWG* White Orange 18 AWG* Purple 18 AWG* Field viewed from Commutator end 18 AWG* 18 AWG* [Housing L side] [Housing R side] F/R Change Trigger...
- Page 7 P 7/ 7 ircuit diagram Wiring to Brush Holder Housing L side For easy wiring, set Brush holders on Housing L as instructed below: *Brush holder on Switch side - Face the window of Brush holder towards Housing R side. Brush holder *Brush holder on the opposite side - Face the window of Brush holder towards...
