2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427

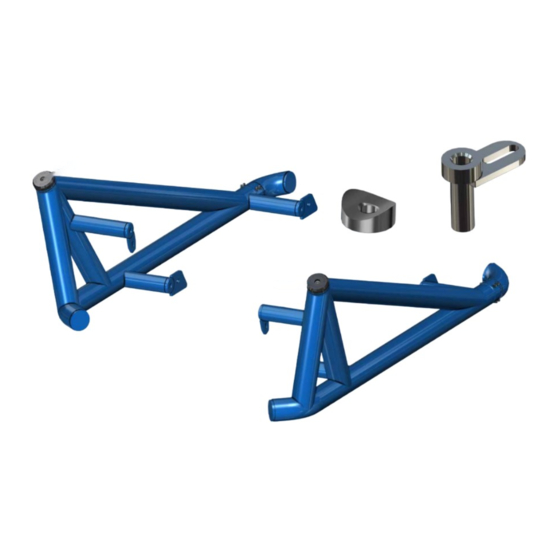

End Cap
Left Nerf Bar
6x
M6-1.0 x 35mm Lg. BHCS
4x
M10-1.50 x 70mm Lg. FHCS
Need help with your installation?
sales@superatv.com
1-855-743-3427
© 2016 SuperATV.com. All Rights Reserved.
Nerf Bars:
End Cap
Right Nerf Bar
4x
www.superatv.com
8:00am - 9:00pm EST M-Th
8:00am - 7:00pm EST Friday
9:00am - 2:00pm EST Saturday

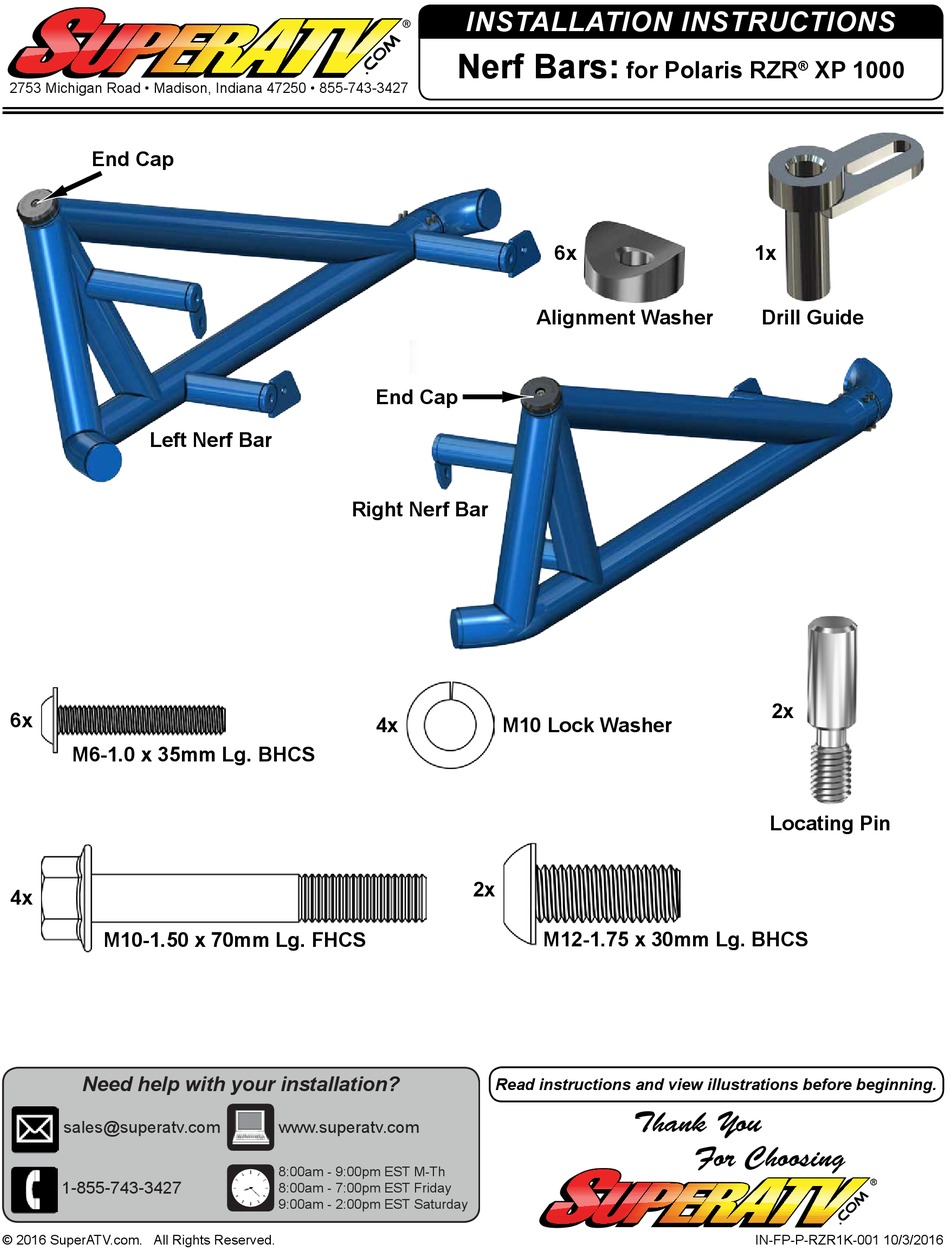

INSTALLATION INSTRUCTIONS
for Polaris RZR
6x
Alignment Washer
M10 Lock Washer
2x
M12-1.75 x 30mm Lg. BHCS
Read instructions and view illustrations before beginning.
Thank You
XP 1000
®
1x
Drill Guide
2x
Locating Pin
For Choosing
IN-FP-P-RZR1K-001 10/3/2016
