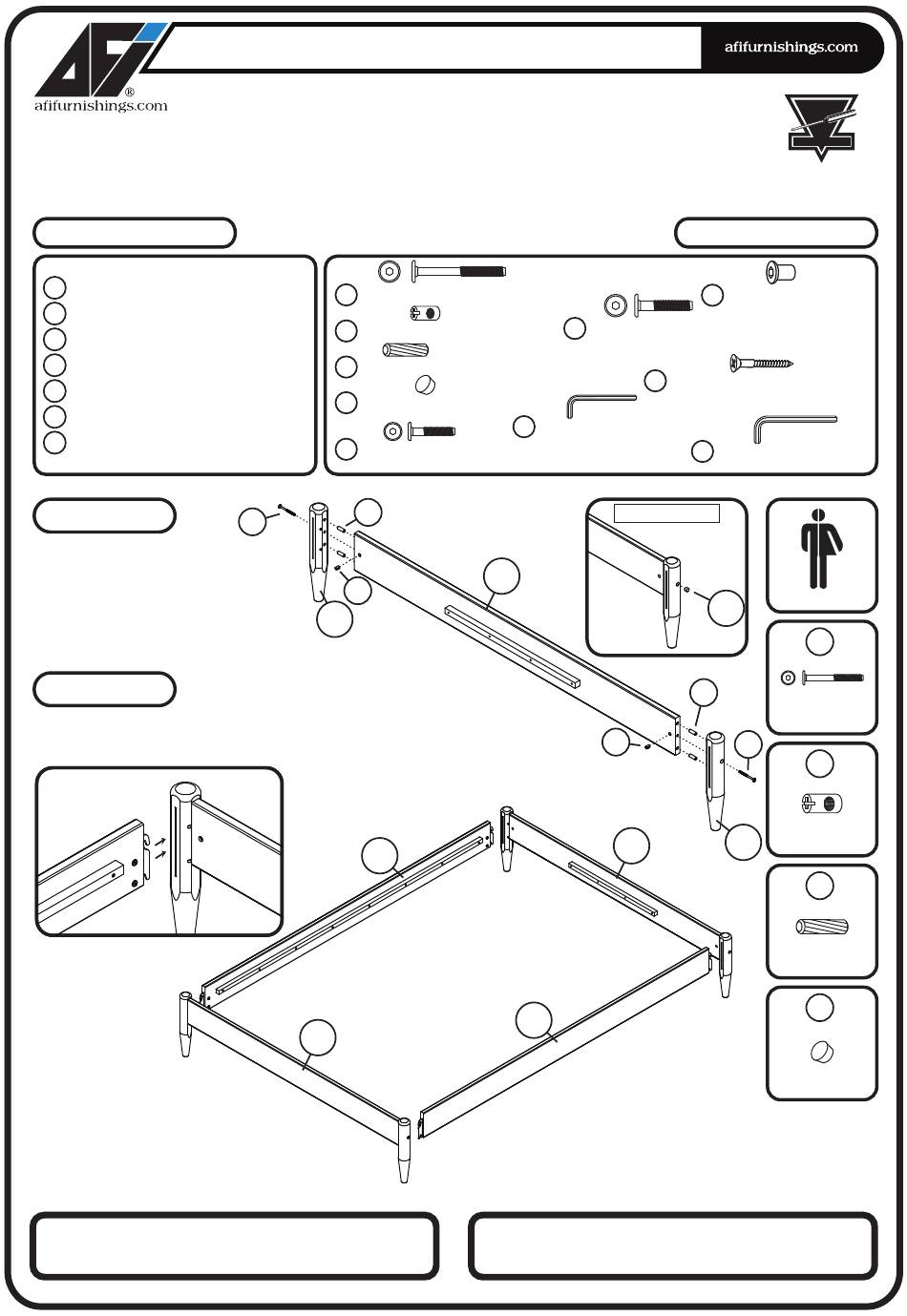

AFi BD-PDA-ST Assembly Instructions

please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1 FOOT RAIL
2 LEFT LEG
3 RIGHT LEG
4 SIDE RAILS
5 SLAT KIT
6 SUPPORT RAIL
7 SUPPORT LEG
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Attach the legs (2) and (3)
to foot rail (1), using wood dowel
(C) JCB M6 X 70mm (A) and
barrel nut (B).
Tighten with the Allen wrench (I).
Cover holes with wood button (D) as shown.
Step 2
Attach the side rails (04) to the foot rail (1) using
the bed hook as shown below.
PO:
BED FRAME
ASSEMBLY INSTRUCTIONS
Before assembling your bed frame, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
2 PCS
A
JCB M6 X 70mm (2 3/4") - 4 pcs
2 PCS
B
Barrel nut - 4 pcs
2 PCS
2 PCS
C
Wood dowel 10 X 30mm( 1 1/4") - 8 pcs
2 SET
D
Wood button - 4 pcs
2 PCS
2 PCS
E
JCB M6 X 30mm ( 1 1/8") - 6 pcs
C
A
B
2
4
1
QUEEN
Spare - 1 pc
G
Spare - 1 pc
Spare - 1 pc
I
Allen wrench M4 - 1pc
Spare - 1 pc
1
4
BD-PDA-ST
HARDWARE
F
Cap Nut - 6 pcs
JCB M8 X 40mm ( 1 5/8") - 2 pcs
Spare - 1 pc
H
Wood screw(1 1/4") - 16 pcs
Spare - 1pc
J
Allen wrench M5 - 1pc
wood button
D
C
B
A
3
1
CODE ITEM
R-21134X
READY
TO
ASSEMBLE
Spare - 1 pc
Adult assembly
A
JCB M6 X 70mm
B
Barrel nut
C
Wood dowel
D
Wood button
Page 1 of 2
