AFi BD-KEW-LO Assembly Instructions

please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726

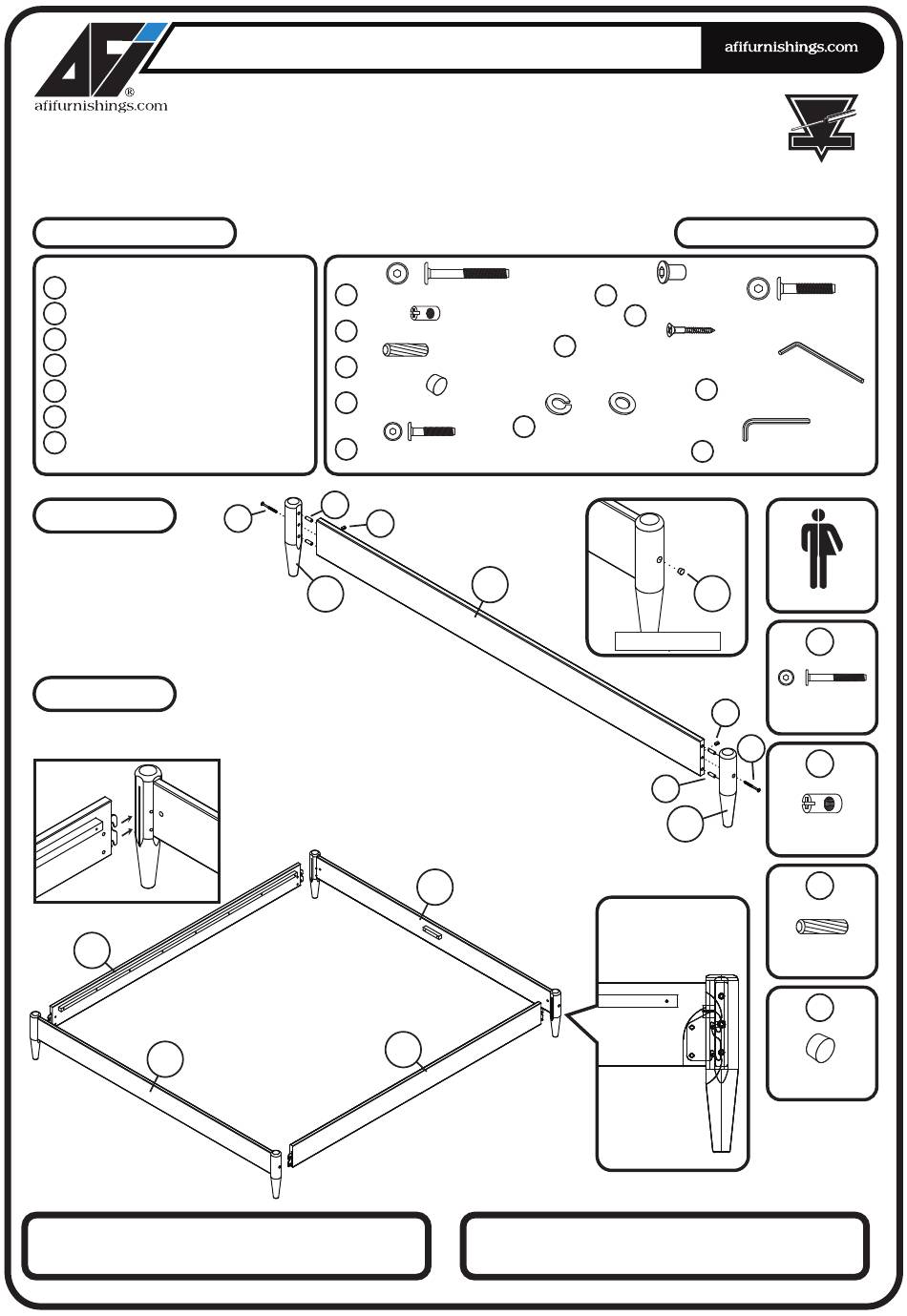

PARTS LIST
1 FOOT RAIL
2 LEFT LEG
3 RIGHT LEG
4 SIDE RAILS
5 SLAT KIT
6 SUPPORT RAIL
7 SUPPORT LEG
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Attach the legs (2) and (3)
to foot rail (1), using wood dowel
(C) JCB M6 X 70mm (A) and
barrel nut (B).
Tighten with the Allen wrench (J).
Cover holes with v wood button (D) as shown.
Repeat the other.
Step 2
Attach the side rails (4) to the headboard / footboard (1) using
the bed hook as shown below.
4
1
PO:
BED FRAME
ASSEMBLY INSTRUCTIONS
Before assembling your bed frame, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
2 PCS
A
JCB M6 X 70mm (2 3/4") - 4 pcs
2 PCS
B
Barrel nut - 4 pcs
2 PCS
2 PCS
C
Wood dowel 10 X 30mm( 1 1/8") - 8 pcs
2 SET
D
V Wood button - 4 pcs
2 PCS
2 PCS
E
JCB M6 X 30mm ( 1 1/8") - 6 pcs
C
A
B
2
KING
Spare - 1 pc
H
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
I
Split & Flat Washer
Spare - 1 pc
1
1
4
HARDWARE
F
Cap Nut - 6 pcs
G
JCB M8 X 40mm ( 1 5/8") - 2 pcs
Wood screw(1 1/4") - 16 pcs
Spare - 1 pc
J
Allen wrench M4 - 1pc
2pcs 2pcs
Spare - 1pc
K
Allen wrench M5 - 1pc
D
wood button
B
C
3
CODE ITEM
BD-KEW-LO R-22125X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1pc
Adult assembly
A
JCB M6 X 70mm
A
B
Barrel nut
C
Wood dowel
D
V Wood button
