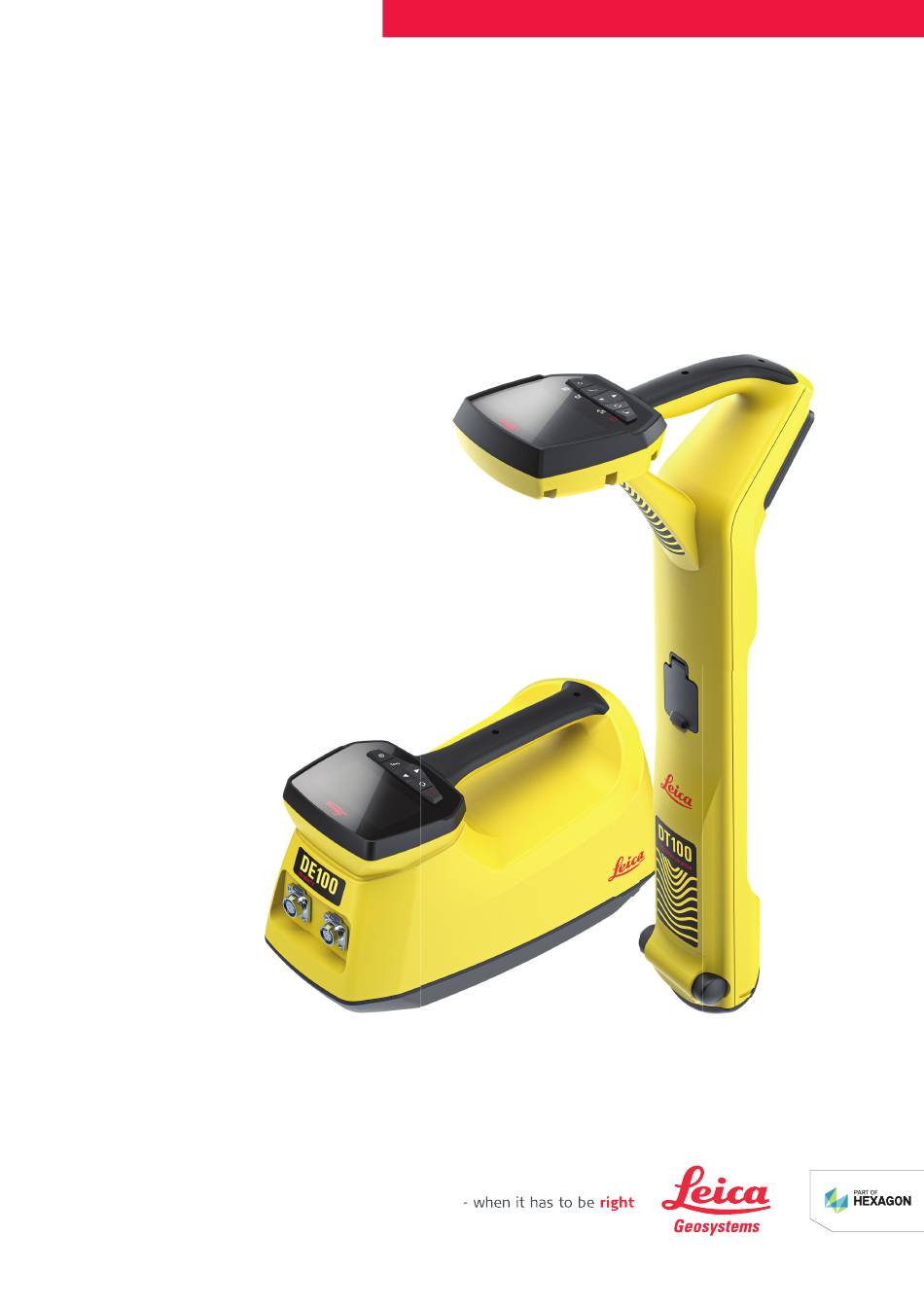

- Page 1 Leica DT100 Locator, DE100 Transmitter Quick Guide Version 1.0 English...
-
Page 2: Table Of Contents
Table of Contents Important Information about your Instrument Conformity to National Regulations Instrument Components DT100 Locator Overview DE100 Transmitter Overview Technical Data Care and Transport Operation Table of Contents... -
Page 3: Important Information About Your Instrument
Product The model and serial number of your product are indicated on the type label. identification Always refer to this information when contacting your agency or Leica Geo- systems authorised service centre. ☞ The content of this document is subject to change without prior notice. - Page 4 WARNING Presence of utilities without a detectable signal The absence of a positive indication does not guarantee the non-existence of a utility. Without the use of appropriate accessories, the locators cannot locate non- metallic utilities such as plastic pipes, typically used by the water and gas utilities.
-
Page 5: Conformity To National Regulations
(1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 29840_002 Labelling DT100 Locator Model: Leica DT100 Precision Locator P/N: 1005571 Power: Leica Geosystems AG CH - 9435 Heerbrugg 11.1V... - Page 6 Valid for DT100 in EU: Hereby, Leica Geosystems AG declares that the radio equip- ment type DT100 is in compliance with Directive 2014/53/EU and other applicable European Directives. The full text of the EU declaration of conformity is avail- able at the following Internet address: http://www.leica-geo-...
-
Page 7: Instrument Components
Instrument Components DT100 Locator Overview Overview Accessory port USB-C port 29831_001 Locator keypad Power ON/OFF and volume Up/Down Settings menu and depth - long press and alternate func- tion Antenna Mode Frequency selection 29832_001 and background check Keypad buttons perform several functions depending on operating mode. - Page 8 Main Screen Key Functions (Long Press) Power Press or press and hold to power off. Transmitter N/A on this model. Control Frequency Determines best frequency options based on Analyzer environmental interference. Data Logger N/A on this model. Increase gain repeatedly. Down Decrease gain repeatedly.
- Page 9 Main Screen Key Functions (Short Press) Volume Change the audio volume. Inlcuded are three levels and mute. Antenna Change the mode of the receiver. Mode There are five modes that correspond to antenna signals used. Increase gain Down Decrease gain Frequency Change the operating frequency.
-
Page 10: De100 Transmitter Overview
User Interface on Locator System Gain USB connection Estimated depth Speaker Volume Battery level Signal bar graph Mode Frequency Estimated current Compass Guidance arrows 30004_002 There are two main contexts for the Locator: Locate screens • Menu screens • Screen Information Mode Select Trace Modes, Twin Peak or Single Peak, Sweep Modes, Twin Sweep or Single... -
Page 11: Transmitter Keypad
USB-C port Output port 1 Output port 2 29833_001 Transmitter keypad Power ON/OFF and volume Up/Down Settings menu Mode switch Frequency 30003_001 Keypad buttons perform several functions depending on operating mode. To activate most functions, press and release the button. For other functions, press and hold the button until the function activates. -
Page 12: Screen Information
Menu Key Press Functions Power Press exits to main screen. Mode Exit the menu or submenu. Move the selection up. Down Move the selection down. Frequency Change a setting or enter a submenu. Settings Open the settings. User Interface The transmitter display shows the status of selected options as well as the active frequency and meter reading. - Page 13 Voltage Measured output voltage [in V]. Impedance Measured Output Impedance [in Ω]. Instrument Components...
-
Page 14: Technical Data
Technical Data Environmental Temperature specifications Operating Operating Product temperature [°C] temperature [°F] Locator DT100, −20 to +50 −4 to +122 Transmitter DE100 Protection against water, dust and sand. Product Protection Locator DT100, IP65 (IEC 60529) Transmitter DE100 Humidity Product Humidity Locator DT100, Max 95% RH non condensing. -
Page 15: Care And Transport
Care and Transport Transport in a road Never carry the product loose in a road vehicle, as it can be affected by vehicle shock and vibration. Always carry the product in its container and secure it. Care and Transport... -
Page 16: Operation
Operation Changing the Bat- teries – Locator: 29878_001 Release by pressing battery pack downward and turning away from the top. Remove batteries. Changing the Bat- tery – Transmitter: 29879_001 Press and hold button. Pull out battery. Operation... - Page 17 Turning on and off the instrument 2s > ON 2s > ON > OFF 29837_001 Press and hold the speaker button for 2 seconds to power up the locator. Turning on and off the instrument 2s > ON 2s > ON >...
- Page 18 1016481-1.0.0en Original text (1016481-1.0.0en) Published in Switzerland, © 2024 Leica Geosystems AG Leica Geosystems AG Heinrich-Wild-Strasse 9435 Heerbrugg Switzerland www.leica-geosystems.com...
