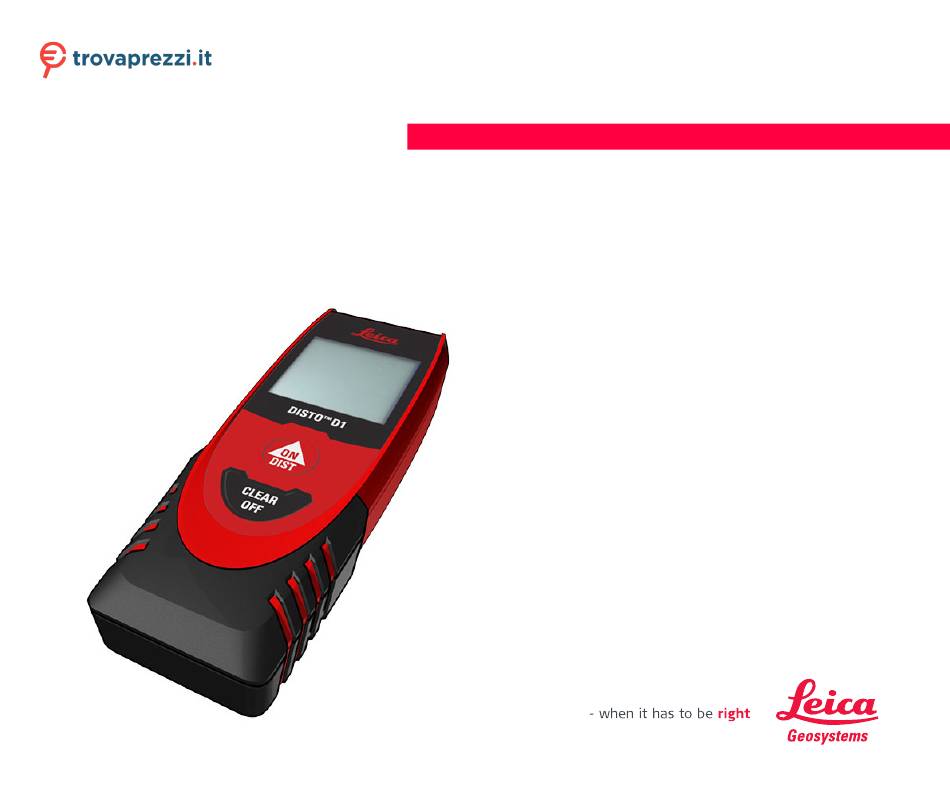

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Leica Disto D1 cerca il tuo prodotto tra le migliori offerte di Elettroutensili Leica DISTO The original laser distance meter...
- Page 2 Overview Technical data Instrument Set-up Operations Message Codes Care Warranty Safety instructions Leica DISTO™ D1...
- Page 3 Overview Ov e r v i e w The Leica DISTO™ is a laser distance meter oper- ating with a class 2 laser. See chapter Technical data for scope of use. 1 Display 2 ON/ Measure 3 Clear/ OFF Leica DISTO™ D1...
- Page 4 *** Tolerances apply from 0.05 m to 5 m with a confidence level of 95%. With favourable conditions the tolerance may deteriorate by 0.10 mm/m for distances above 5 m. With unfavourable conditions the tolerance may deteriorate by 0.15 mm/m for distances above 5 m. Leica DISTO™ D1...
- Page 5 Technical data Functions Distance measuring Permanent measuring Beep Illuminated display Bluetooth® Smart Leica DISTO™ D1...
- Page 6 Indicates a potentially hazardous situ- understand these directions and ation or an unintended use which, if adhere to them. not avoided, may result in minor injury and/or appreciable material, financial and environmental damage. The symbols used have the following meanings: Leica DISTO™ D1...
- Page 7 Instrument Set-up Insert batteries To ensure a reliable use, we recom- mend using high quality Alkaline bat- teries. Change batteries when battery symbol is flashing. Leica DISTO™ D1...
- Page 8 Instrument Set-up Switching ON/OFF Device is turned OFF. Leica DISTO™ D1...
- Page 9 Instrument Set-up Clear Undo last action. Leave actual function, go to default operation mode. Leica DISTO™ D1...
- Page 10 Instrument Set-up Message Codes If the message "i" appears with a number, observe the instruc- tions in Message Codes section. Example: Leica DISTO™ D1...
- Page 11 Instrument Set-up Settings Press both keys simultaneousley. Switch between the following units: 0.000 m 0'00" 1/16 0.0000 m 0.000 in 0.00 ft 0 in 1/16 Leica DISTO™ D1...
- Page 12 Aim active laser at target. Target surfaces: Measuring errors can occur when meas- uring to colourless liquids, glass, styrofoam or permeable sur- faces or when aiming at high gloss surfaces. Against dark Leica DISTO™ D1...
- Page 13 Operations Permanent measuring The last value measured is displayed Stops permanent measuring. in the main line. Leica DISTO™ D1...
- Page 14 Bluetooth® Smart module (with use of the free software and we the new Bluetooth® standard are not obliged to provide cor- V4.0) works together with all rections nor to develop Bluetooth® Smart Ready Leica DISTO™ D1...
- Page 15 Received signal too high Change target surface (e.g. white paper) . Too much background light Shadow target area. * If other message codes are displayed frequently even the instrument has been switched off and on, please contact your dealer. Leica DISTO™ D1...
- Page 16 Care Ca r e Clean the device with a damp, soft cloth. Never immerse the device in water. Never use aggressive cleaning agents or solvents. Leica DISTO™ D1...
- Page 17 Warranty under PROTECT by Leica Geosystems Lifetime Manufacturer´s Warranty Warranty coverage for the entire usage time of the product under PROTECT according to Leica Geosystems International Limited Warranty and PROTECT General Terms & Conditions set out under www.leica-geosystems.com. Free of...
- Page 18 Safety instructions Sa f e t y i n s t r u c t i o n s The person responsible for the instrument must ensure that all users understand these directions and adhere to them. Leica DISTO™ D1...
- Page 19 CAUTION Indicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor injury and/or appreciable material, financial and environmental damage. Leica DISTO™ D1...
- Page 20 Safety instructions Permitted use Measuring distances Data transfer with Bluetooth® Leica DISTO™ D1...
- Page 21 (e.g. when measuring on roads, con- struction sites, etc.) Deliberate or irresponsible behaviour on scaffolding, when using ladders, when measuring near machines which are run- ning or near parts of machines or install- ations which are unprotected Aiming directly in the sun Leica DISTO™ D1...
- Page 22 CAUTION Never attempt to repair the product yourself. In case of damage, contact a local dealer. WARNING Changes or modifications not expressly approved could void the user´s authority to operate the equipment. Leica DISTO™ D1...
- Page 23 Safety instructions Limits of use Refer to section Technical data. The device is designed for use in areas permanently hab- itable by humans. Do not use the product in explosion hazardous areas or in aggressive environments. Leica DISTO™ D1...
- Page 24 Safety instructions Areas of responsibility Responsibilities of the manufacturer of the ori- ginal equipment: Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Internet: www.leica-geosystems.com The company above is responsible for supplying the product, including the User Manual in a com- pletely safe condition.
- Page 25 Dispose of the product appropriately in accordance with the national regulations in force in your country. Adhere to the national and coun- try specific regulations. Product specific treatment and waste man- agement can be downloaded from our homepage. Leica DISTO™ D1...
- Page 26 Japanese Radio Law Compliance This device is granted pursuant to the Japanese Radio Law 電 波 法 . This device should not be modified otherwise the granted designation num- ber will become invalid. Leica DISTO™ D1...
- Page 27 Consult the dealer or an experienced radi- o/TV technician for help This device complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: This device may not cause harmful inter- ference, and Leica DISTO™ D1...
- Page 28 The radiated rf output power of the instrument is below the Health Canada's Safety Code 6 exclu- sion limit for portable devices (radiated element separation distance between the radiating ele- ment and user and/or bystander is below 20 cm). Leica DISTO™ D1...
- Page 29 Do not use the product near medical equipment. Do not use the product in airplanes. Do not use the product near your body for extended periods. Leica DISTO™ D1...
- Page 30 Looking directly into the beam with optical aids (e.g. binoculars, telescopes) can be hazardous. CAUTION Looking into the laser beam may be hazardous to the eyes. Wavelength 620 - 690 nm Maximum radiant output power for classification < 1 mW Leica DISTO™ D1...
- Page 31 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Leica DISTO™ D1...
