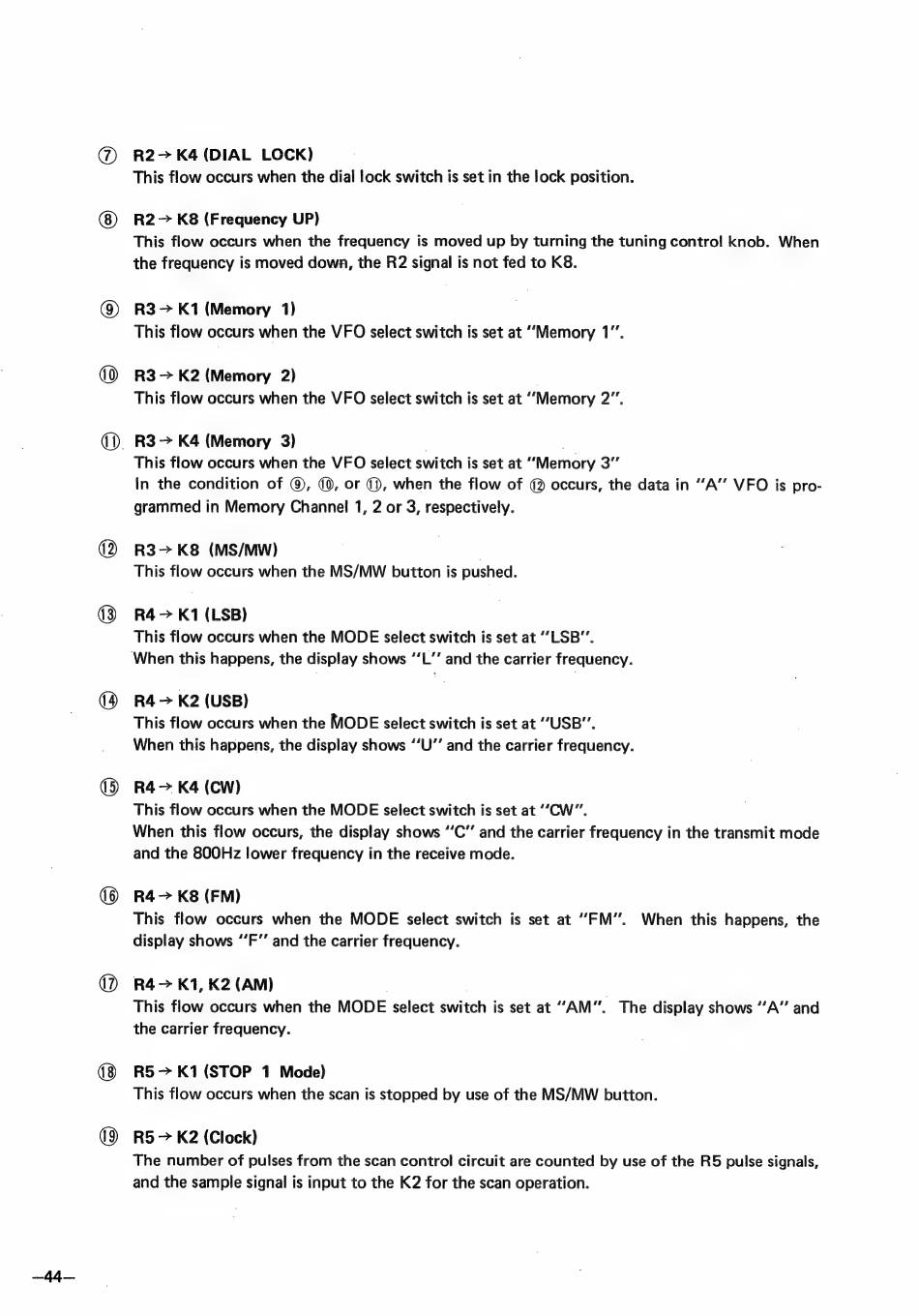

82 > КА (ПІЛІ. LOCK)
This flow occurs when the dial lock switch is set in the lock position.
82 > K8 (Frequency UP)
This flow occurs when the frequency is moved up by turning the tuning control knob. When
the frequency is moved down, the R2 signal is not fed to K8.
23 > K1 (Memory 1)
This flow occurs when the VFO select switch is set at "Метогу 1".
83 > K2 (Memory 2)
This flow occurs when the VFO select switch is set at "Memory 2".
R3 > КА (Memory 3)
This flow occurs when the VFO select switch is set at "Memory 3"
In the condition of (9), (9, ог 7, when the flow of (2 occurs, the data іп "A" VFO is pro-
grammed in Memory Channel 1, 2 or 3, respectively.
R3 K8 (MS/MW) |
This flow occurs when the MS/MW button is pushed.
R4 > K1 (LSB)
This flow occurs when the MODE select switch is set at "LSB".
When this happens, the display shows "'L'' and the carrier frequency.
R4 > K2 (USB)
This flow occurs when the MODE select switch is set at "USB".
When this happens, the display shows ''U'' and the carrier frequency.
R4 > КА (CW)
This flow occurs when the MODE select switch is set at "CW".
When this flow occurs, the display shows "С" and the carrier frequency in the transmit mode
and the 800Hz lower frequency in the receive mode.
R4 > K8 (FM)
This flow occurs when the MODE select switch is set at "FM". When this happens, the
display shows "F" and the carrier frequency.
R4 ^ K1, K2 (AM) |
This flow occurs when the MODE select switch is set at "AM". The display shows "A" and
the carrier frequency.
85 > K1 (STOP 1 Mode)
This flow occurs when the scan is stopped by use of the MS/MW button.
R5 > K2 (Clock)
The number of pulses from the scan control circuit are counted by use of the R5 pue signals,
and the sample signal is input to the K2 for the scan operation.
