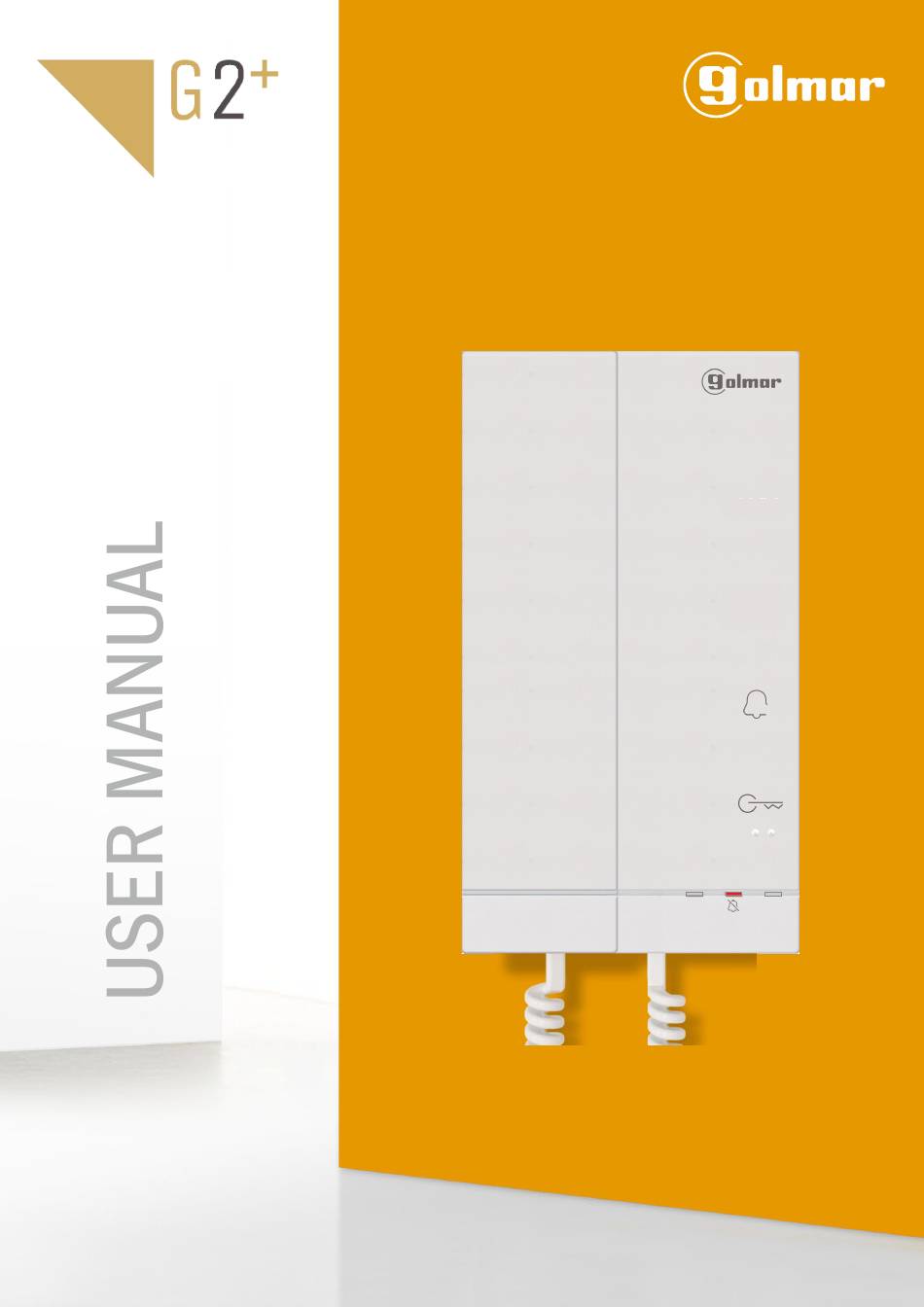

- Page 1 TECHNOLOGY T-ART LITE /G2+ LEPHONE TTART LITE/G2+ EN REV.01 4 01...
-
Page 2: Table Of Contents
T-ART LITE /G2+ TELEPHONE INTRODUCTION First of all, we thank and congratulate you for purchasing this product. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased. Its advanced technology and strict quality control will ensure that customers and users enjoy the numerous features that this device offers. -
Page 3: Characteristics
T-ART LITE /G2+ TELEPHONE CHARACTERISTICS T-ART LITE/G2+ telephone with simplified installation (non-polarised 2 wire bus). - Up to 4 T-ART LITE/G2+ telephones/monitors per apartment (master, slave 1, slave 2 and slave 3). - Up to 32 apartments/T-ART LITE/G2+ telephones in mixed installations with monitors (EL632 G2+ SE module) - Up to 128 apartments/T-ART LITE/G2+ telephones per installation (EL6 2 G2 sound module required). -
Page 4: Description
10 - Slave 1 DIP 10 01 - Slave 2 End of line resistor 11 - Slave 3 GOLMAR S.A. C/ Silici, 13. 08940-SPAIN Handset. Wall mounting connector fixing (x4). Function push buttons. Gol,ar use. Raised dots for the visually impaired people. -
Page 5: Dip Switch
T-ART LITE /G2+ TELEPHONE TELEPHONE DESCRIPTION: Description of the DIP switch and configuration of the T-ART LITE/G2+ telephone address (code): Building / Villa (Nexa door panel) Dip1 Dip : Sets the telephones address (addresses to Note: Mixed installations with monitors (addresses 1 to 32). The switches set to OFF have a zero value. - Page 6 T-ART LITE /G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
- Page 7 T-ART LITE /G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
- Page 8 T-ART LITE /G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. 1 11 Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code 1 19 Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
-
Page 9: "Automatic Door Opening" Mode
T-ART LITE /G2+ TELEPHONE TELEPHONE DESCRIPTION: “Automatic door opening” mode : The T-ART LITE/G2+ telephone allows you to activate/deactivate the "automatic door opening" mode. Activate "automatic door opening" mode: ith the telephone in standby mode (handset on or off the hook) , press the button for sec , 3 confirmation beeps... -
Page 10: Configuration & Selection Of The Call Tone
T-ART LITE /G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. Configuration & selection of the call tone: - Then the ring tone to be changed will be for Monitor Guard calls: 1- Select a ring tone for door panel calls by short pressing the push button , each short press on the push button... -
Page 11: In Wall Mounting Connector
T-ART LITE /G2+ TELEPHONE INSTALLING THE TELEPHONE IN A WALL MOUNTING CONNECTOR: Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the wall mounting connector should be located at a height of 1.60m from the ground. The minimum distance between the wall mounting connector and the closest object must be 5 cm. - Page 12 T-ART LITE /G2+ TELEPHONE INSTALLATION OF THE TELEPHONE IN AN EMBEDDING BOX: Avoid dusty or smoky environments or locations near sources of heat. Positioning the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5 cm.
-
Page 13: Wiring Diagrams
T-ART LITE /G2+ TELEPHONE WIRING DIAGRAMS: Audio door entry system with 128 apartments / T-ART LITE/ G2+ telephones Golmar d.c lock release T-ART LITE/G2+ T-ART LITE/G2+ Master Master Make the connections in electrical junction box. APARTMENT 128 APARTMENT 127 T-ART LITE/G2+... -
Page 14: Cleaning The Telephone
T-ART LITE /G2+ TELEPHONE CLEANING THE TELEPHONE: - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp lint-free cloth with water. - Always wipe the telephone in the same direction, from top to bottom. - After cleaning the telephone , remove any moisture with a soft dry lint-free cloth. -
Page 15: Not S
T-ART LITE /G2+ TELEPHONE NOT S:... -
Page 16: Compliance
C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
Need help?
Do you have a question about the T-ART LITE/G2+ and is the answer not in the manual?
Questions and answers
How do I turn the ringer volume down
To turn down the ringer volume on the Golmar T-ART LITE/G2+:
1. Make sure the telephone is in standby mode and the handset is off-hook.
2. Press the pushbutton briefly to hear the current call tone volume.
3. Each short press changes the volume level (minimum, medium, maximum).
4. Stop pressing when the desired lower volume is selected.
This answer is automatically generated

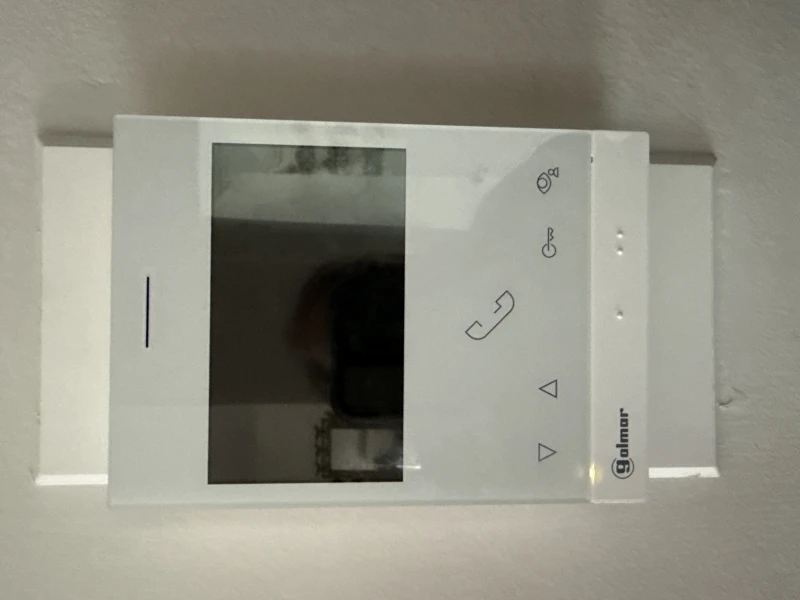

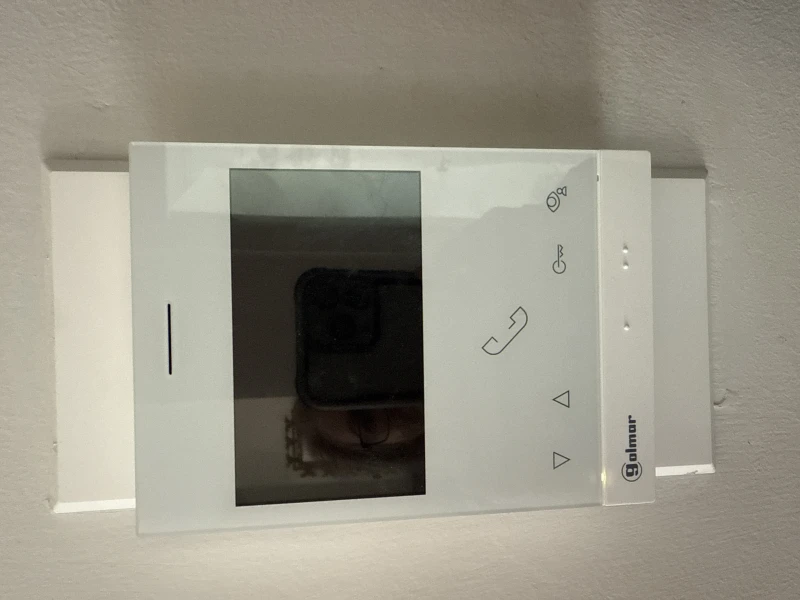

@Mr. Anderson I have the model without a telephone. There is only a wall mounted unit
