- Page 1 ART G2+ TE LEPHONE TECHNOLOGY Cód. 5012 71 T ART G2+ E N REV.01 1...
-
Page 2: Table Of Contents
T-ART/G2+ TELEPHONE INTRODUCTION First of all, we thank and congratulate you for purchasing this product. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased. Its advanced technology and strict quality control will ensure that customers and users enjoy the numerous features that this device offers. -
Page 3: Characteristics

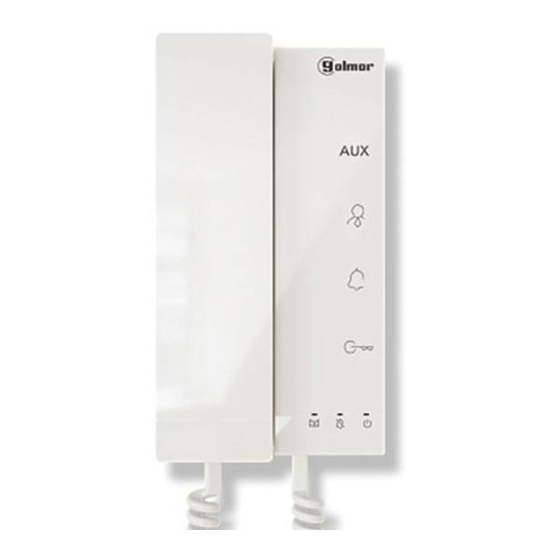

T-ART/G2+ TELEPHONE CHARACTERISTICS T-ART telephone with simplified installation (non-polarised 2 wire bus). - Up to 4 T-ART telephones/monitors per apartment (master, slave 1, slave 2 and slave 3). - Up to 32 apartments/T-ART terminals in mixed installations with monitors (EL632 G2+ SE module) - Up to 128 apartments/ T-ART terminals per installation... -
Page 4: Description
10 - Slave 1 DIP 10 01 - Slave 2 End of line resistor 11 - Slave 3 GOLMAR S.A. C/ Silici, 13. 08940-SPAIN Handset. Wall mounting connector fixing (x4). Function push buttons. Gol,ar use. Raised dots for the visually impaired people. - Page 5 T-ART/G2+ TELEPHONE TELEPHONE DESCRIPTION: Description of the DIP switch and configuration of the T-ART/G2+ telephone address (code): Edificio / Chalet (Placa Nexa) Dip1 Dip : Sets the telephones address (addresses to Note: Mixed installations with monitors (addresses 1 to 32). The switches set to OFF have a zero value.
- Page 6 T-ART/G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
- Page 7 T-ART/G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
- Page 8 T-ART/G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. 1 11 Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code 1 19 Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
-
Page 9: Autoswitch-On Function
T-ART/G2+ TELEPHONE TELEPHONE DESCRIPTION: Autoswitch-on function: With the T-ART/G2+ telephone in standby mode , you can establish an audio communication and the handset off the hook with the master door panel. It is only operative if there is no communication in progress. With the telephone in standby mode and handset off the hook , press the button... -
Page 10: Configuration & Selection Of The Call Tone
T-ART/G2+ TELEPHONE TELEPHONE DESCRIPTION: Continued from previous page. Configuration & selection of the call tone: The telephone must be in standby (handset off the hook) for the configuration and selection of the desired call tone. To modify the call tones, press the button for 3 seconds until you hear 2 confirmation tones that indicate that the telephone is in configuration mode. -
Page 11: In Wall Mounting Connector
T-ART/G2+ TELEPHONE INSTALLING THE TELEPHONE IN A WALL MOUNTING CONNECTOR: Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the wall mounting connector should be located at a height of 1.60m from the ground. The minimum distance between the wall mounting connector and the closest object must be 5 cm. - Page 12 T-ART/G2+ TELEPHONE INSTALLATION OF THE TELEPHONE IN AN EMBEDDING BOX: Avoid dusty or smoky environments or locations near sources of heat. Positioning the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5 cm.
-
Page 13: T-Art/G2
T-ART/G2+ TELEPHONE WIRING DIAGRAMS: Audio door entry system with 128 apartments / T-ART-G2+ telephones Golmar d.c lock release T-ART/G2+ T-ART/G2+ Master Master Make the connections in electrical junction box. APARTMENT 128 APARTMENT 127 T-ART/G2+ T-ART/G2+ Master Master APARTMENT 4 APARTMENT 3... -
Page 14: Cleaning The Monitor
T-ART/G2+ TELEPHONE CLEANING THE TELEPHONE: - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp lint-free cloth with water. - Always wipe the telephone in the same direction, from top to bottom. - After cleaning the telephone , remove any moisture with a soft dry lint-free cloth. -
Page 15: Not S
T-ART/G2+ TELEPHONE NOT S:... -
Page 16: Compliance
C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
