T562 G 2 TELEPHONE
B
TECHNOLOGY
Code 50121599
REV.0 1
2 7
T
562 B
G 2 EN

Advertisement

Table of Contents
loading

Related Manuals for golmar T562 G 2

Summary of Contents for golmar T562 G 2

  • Page 1 T562 G 2 TELEPHONE TECHNOLOGY Code 50121599 REV.0 1 562 B G 2 EN...

  • Page 2: Table Of Contents

    T562 GB2 TELEPHONE INTRODUCTION First and foremost we would like to thank you for purchasing this product. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased. Its advanced technology and strict quality control will ensure that customers and users enjoy the numerous features that this device offers.

  • Page 3: System Operation

    T562 GB2 TELEPHONE SYSTEM OPERATION To make a call, the visitor needs to press the button for the apartment, an audible tone indicates that the call is being made and LED on the door panel illuminates. If vocal synthesis is enabled, a 'Call is in progress' message appears indicating that a call is being made.

  • Page 4: Configuration Dip Switch

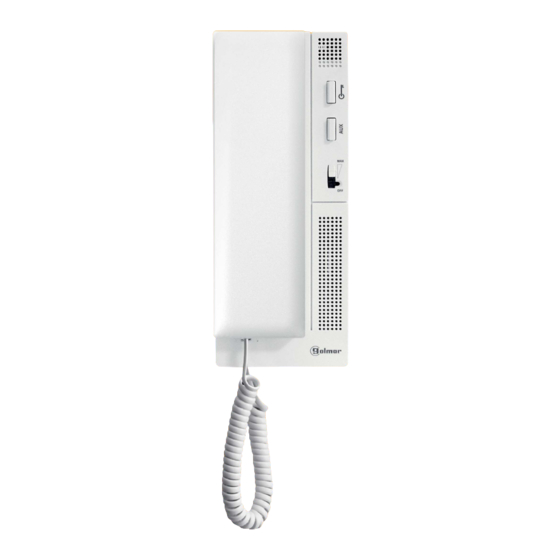

    T562 GB2 TELEPHONE DESCRIPTION OF THE TELEPHONE Description of DIP switch and configuration of telephone address (code): DIP 1 to DIP 5: Configure telephone address (up to 32 addresses). DIP 1 to DIP 7: With DIP 10 set to ON , it enables the telephone address to be configured (up to 128 addresses).

  • Page 5: Configuration Of Telephone Address Codes (Up To 128 Addresses)

    T562 GB2 TELEPHONE DESCRIPTION OF THE TELEPHONE Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
  • Page 6 T562 GB2 TELEPHONE DESCRIPTION OF THE TELEPHONE Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...
  • Page 7 T562 GB2 TELEPHONE DESCRIPTION OF THE TELEPHONE Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...

  • Page 8: Doctor Mode' Function

    T562 GB2 TELEPHONE DESCRIPTION OF THE TELEPHONE Continued from previous page. Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code Apartment code...

  • Page 9: Configuration Of Ringtones

    T562 GB2 TELEPHONE DESCRIPTION OF THE TELEPHONE Setting the ringtones: Description The telephone's ringtones (door panel, intercom and apartment door) can be changed by using the configuration button located in the top left part of the inside of the telephone. There are three ringtone selection groups and each consists of three fixed tones.

  • Page 10: Installing The Telephone

    T562 GB2 TELEPHONE INSTALLING THE TELEPHONE Fixing the telephone to the wall: Avoid dusty or smoky environments or locations near sources of heat. The telephone can be fixed to an electrical embedding box or directly to the wall. It is necessary to open the telephone for wiring and fixing purposes.

  • Page 11: Wiring Diagrams

    T562 GB2 TELEPHONE WIRING DIAGRAMS Installation with 32 apartments/T562 GB2 telephones and Golmar DC lock release: T-562 GB2 Master APARTMENT ( ) ( ) IMPORTANT: With a coded panel system: T-562 GB2 EL632 GB2A/EL642 GB2A sound module is required Master and must be set to 'operating mode 5'.

  • Page 12: Wiring Diagrams

    T562 GB2 TELEPHONE WIRING DIAGRAMS Audio door entry system with 128 apartments/T562 GB2 telephones and Golmar DC lock release: T-562 GB2 Master ( ) ( ) APARTMENT IMPORTANT: Up to 128 apartments/telephones per installation 'audio only': ( ) ( )

  • Page 13: Notes

    T562 GB2 TELEPHONE NOT S:...
  • Page 14 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
