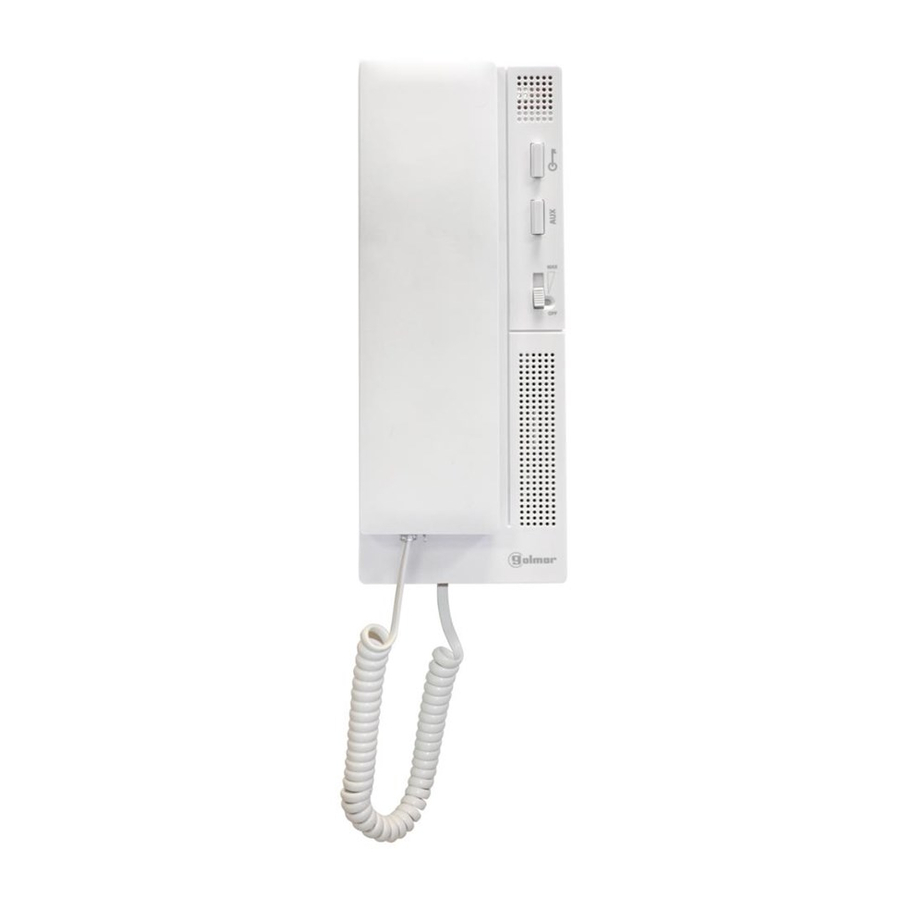

T562 GB2 TELEPHONE
Code 50121599
N REV.0 1
1 6
T
562 B
G 2 E

Advertisement

Table of Contents
loading

Related Manuals for golmar T562 GB2

Summary of Contents for golmar T562 GB2

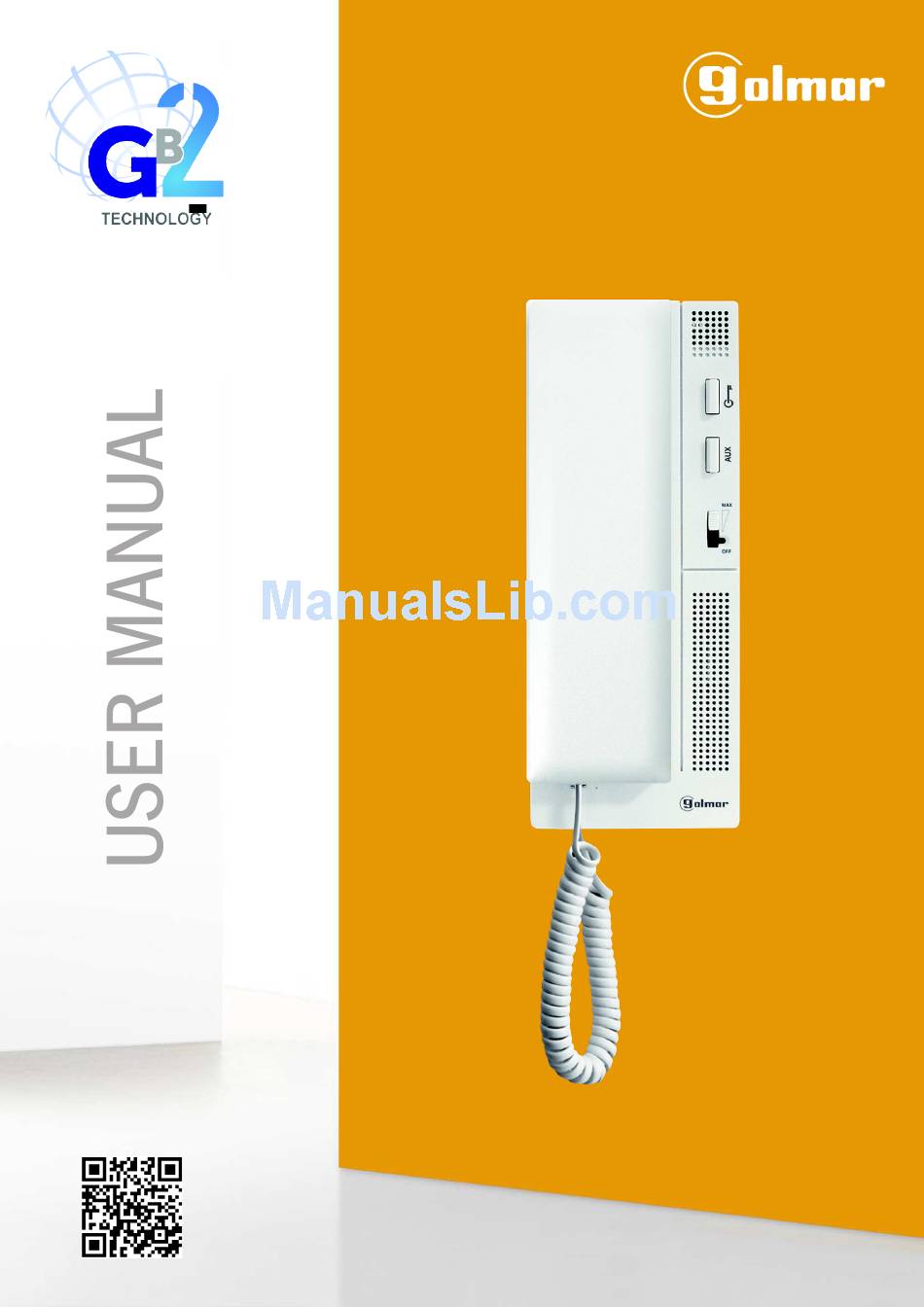

  • Page 1 T562 GB2 TELEPHONE Code 50121599 N REV.0 1 562 B G 2 E...

  • Page 2: Table Of Contents

    T562 G 2 TELEPHONE INTRODUCTION First and foremost we would like to thank you for purchasing this product. Our commitment to satisfying our customers can be seen from our ISO-9001 certification and from the manufacturing of products like this one. Its advanced technology and exacting quality control will ensure that customers and users enjoy the many features this system offers.

  • Page 3: System Operation

    T562 G 2 TELEPHONE SYSTEM OPERATION - To make a call the visitor should press the button corresponding to the desired apartment; an audible tone indicates that the call is being made and the door panel LED will turn on If the vocal synthesis enabled message...

  • Page 4: Configuration Dip Switch

    T562 G 2 TELEPHONE TELEPHONE DESCRIPTION Description of dip switch and setting of telephone address (code): Dip1 Dip5: Set the telephone address (addresses 0 to 31). Dip6 Dip7: Leave OFF. Switches set to OFF have a value of zero. The values of the switches set to ON are shown in the enclosed chart. The telephone code will be the sum of the values of the switches set to ON.

  • Page 5: Octor D Mode Function

    Intercom function: Intercom functionality between two points in the same apartment comes as standard in the T562 GB2 telephone. The telephone must be in standby to make intercom calls. To communicate over the intercom, lift the handset and press the intercom push button.

  • Page 6: Setting The Ring Tones

    T562 G 2 TELEPHONE TELEPHONE DESCRIPTION Setting the ring tones: Description Ring tones (door panel, intercom and apartment door) can be modi ed by pressing the settings button located to the upper left, inside the telephone. There are three tone groups and each group comprises three set tones. The rst tone of each group that is heard during selection, corresponds to door panel calls, the second tone to intercom calls and the third tone to apartment door calls.

  • Page 7: Installing The Telephone

    T562 G 2 TELEPHONE TELEPHONE INSTALLATION: Securing the telephone to the wall: Avoid placing the telephone near sources of heat, in dusty locations or smoky environments. The telephone can be secured using an electrical embedding box or directly to the wall. It is necessary to open the telephone for wiring and fixing purposes.

  • Page 8: Installation Diagrams

    T562 G 2 TELEPHONE INSTALLATION DIAGRAMS Installation for 32 apartments/T562 GB2 telephones and Golmar D.C. lock release: T-562 GB2 Master CODE 31 APARTMENT 32 T-562 GB2 Master CODE 1 APARTMENT 2 T-562 GB2 Master CODE 0 APARTMENT 1 Distances and Cross-Sections:...

  • Page 9: Not S

    T562 G 2 TELEPHONE NOT S:...
