Playcore BigToys MEC-620 Installation Instructions Manual

Metal overhead ladder

Advertisement

Quick Links

MEC-620
Installation Instructions
DET. QTY. PART#
A
A008B_
4
B
G385_
1
C
401767
1
D
401773
1
E
G614
2
F
402121
2
G
M000
8
E972_
1
H
801206
8
I
G034_
8
J
G036_
8
D614_
1
K
8876
8

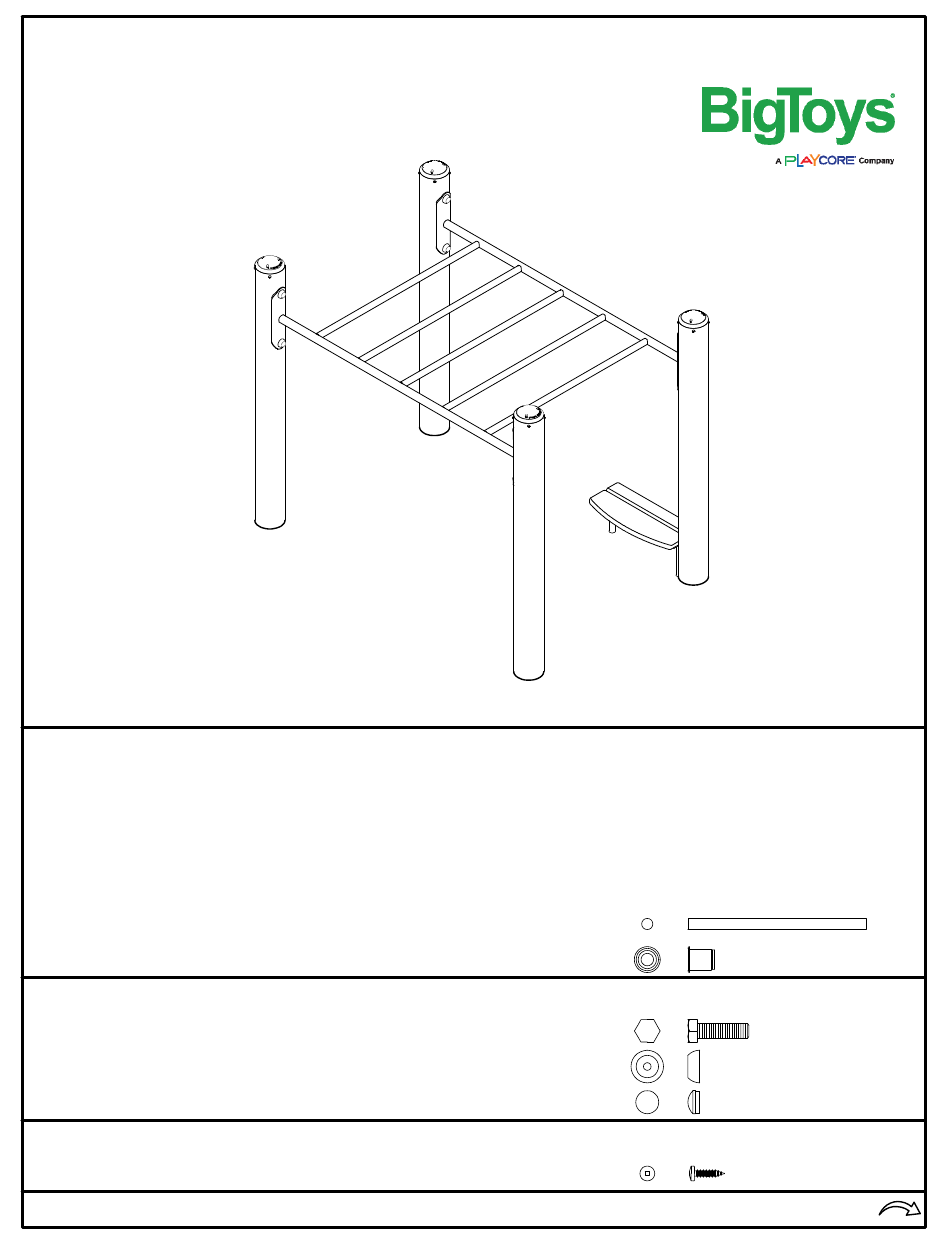

Overhead Ladder - Metal
Overhead Ladder - Metal
DESCRIPTION
Column, Alum 8'-0" - End Drill 2H
Overhead Ladder 5 Rung
Seat Board - M
Seat Edge Board - M
Welcome Mat Leg
Anchor Rod 3/8" x 6" Round Bar Plain
Threaded Insert 1/2"
Connector, Overhead Ladder - Metal
Bolt Tap 1/2-13 x 1-3/4" Grd 2 Nc Pltd
Do-Nut Base (No Boss) 12mm
Do-Nut Cap 12mm
Connector Package
#14 x 1" Sq Dr Pn Hd SS
ICON (NOT TO SCALE)
1 7
/
Copyright © BigToys
Continued
iMEC-620
07/31/13
JRL

Advertisement

loading
Need help?

Need help?

Do you have a question about the BigToys MEC-620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Playcore BigToys MEC-620

  • Page 1 Overhead Ladder - Metal MEC-620 Installation Instructions DET. QTY. PART# DESCRIPTION ICON (NOT TO SCALE) A008B_ Column, Alum 8'-0" - End Drill 2H G385_ Overhead Ladder 5 Rung 401767 Seat Board - M 401773 Seat Edge Board - M G614 Welcome Mat Leg 402121 Anchor Rod 3/8"...
  • Page 2 DET. QTY. PART# DESCRIPTION ICON (NOT TO SCALE) E010_ Free Column Connector Package 805301 Rivet, Alum Drive 1/4 x 11/32 806051 Drive Screw #14 x 1/2" Rnd Hd Type "U" 810062 Screw Sheet Metal FH Sq Dr SS #10x1/2" G010 End Cap M600 Column End Fitting, Alum...
  • Page 3 1. Refer to your structure design for the location of the Overhead Ladder. 2. Locate and dig Column Footing Holes as shown. Deep Footing (EarlyWorks 2-5 yrs) Pipe Footing (2.4 to 3.1 cubic feet of concrete)** (EarlyWorks 2-5 yrs) (0.4 to 0.6 cubic feet of concrete)* * Metal Column Slope Below Grade...
  • Page 4 Make sure you have read the supplemental prolog (iM 1000) before moving on to the next step. 3. Attach Column End Fitting (P) and End Cap (O) to the top of Columns (A) using hardware (L) and (N) as shown. Note: Top of column has four small holes at approximately 5/8"...
  • Page 5 5. Attach Overhead Ladder (B) to columns (A) using hardware (G)(I)(H)(J). Refer to "Typical Threaded Insert Installation" in the supplemental prolog (iM1000) for installation procedures. Footing Hole Overhead Ladder - Metal Copyright © BigToys iMEC-620 07/31/13...
  • Page 6 6. Connect Welcome Mat Legs (E) to seat boards (C)(D) using hardware (K). 7. Insert Anchor Rod (F) into Welcome Mat Leg (E) as shown. Overhead Ladder - Metal Copyright © BigToys iMEC-620 07/31/13...
  • Page 7 8. Place Welcome Mat Legs (E) inside of Pipe Footing Hole as shown. Note: Adjust the Pipe Footing Hole depth to ensure that the top surface of the board is Adjust the Pipe Footing Hole depth 6 inches above the resilient surface. to ensure that the top surface of the board is 6 inches above the resilient surface.
