Playcore BigToys earlyworks MEC-007 Manual

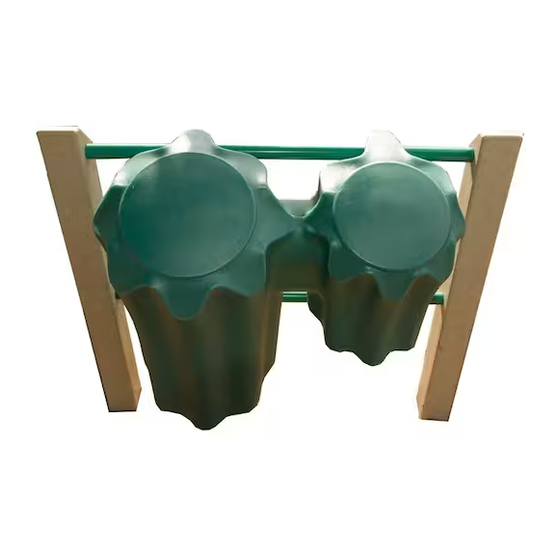

MEC-007 ROCKIN' DRUM (Recycled)
ROCKIN' DRUM
PIPE w/INSERTS
RECYCLED UPRIGHT
WOOD UPRIGHT
HARDWARE COMPLETE
3/8" x 5" HEX HEAD BOLT
3/8" INTERNAL TOOTH LOCKWASHER
ANCHOR ROD 3/8" X 6" ROUND BAR PLAIN
1/4" FLAT WASHER (5/8" O.D.)
#14 X 1 1/2" S.S. SELF DRILL SCREW
DO-NUT CAP 10MM
DO-NUT BASE 10MM
Items listed below Hardware Complete line are included with Hardware Complete Number
Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store
Unused Parts Appropriately Until Assembly Is Completed. Once Assembly Is Completed, Remove Any
Unused Parts From The Play Environment And Dispose/Save Them In A Secure Location. Any bolt end
protruding more than two full threads beyond the face of the nut causes risk of clothing entanglement.
Note: Peen Tee-Nuts and Flatwashers to match radius of pipe after assembly is complete.
Note: Loctite (supplied by others) should be used on any non-patch hardware.

INSTALLATION INSTRUCTIONS:

1. Dig footing holes as shown in Elevation and Plan Views.
2. Insert Pipe w/Inserts through the holes in the sides of the Rockin' Drum.
3. Locate Uprights and attach the Rockin' Drum Assembly using 3/8" x 5" Hex Head Bolt , 3/8" Internal Tooth Lock Washer,
Do-Nut Base 10mm and Do-Nut Cap 10mm as shown in Detail 126. See Plan View for orientation.
4. Center the Rockin' Drum between the two Uprights. Attach Drum to the Pipe w/Inserts using #14 x 1 1/2" Self Drill Screw
and 1/4" Flat Washer. See Detail 127.
5. Insert Anchor Rods through the bottom hole of the Uprights.
6. Plumb and level the entire assembly and tighten all fasteners.
7. After entire unit is assembled, pour concrete footings within 4" to the top and taper away from post for water drainage. Allow
to cure at least 48 hours before use. Temporary bracing may be required until concrete cures.
8. When the structure is finished and satisfactory, eliminate sharp points and sharp edges (burring) on installed hardware like
bolts, nuts etc. Install resilient surfacing material within the use zone of play structure in accordance with ASTM
specifications F1292 appropriate for the fall height of each structure. Refer to the safety guidelines.
05/11/12
1-866-814-8697
EC-007 ROCKIN' DRUM (Wood)
DESCRIPTION
Unless Otherwise Specified, All Units of Measure are Each
Promptly cut-off flush, file smooth, and treat to prevent corrosion.

Parts List

MEC-007 EC-007
1 1
2 2
2 0
0 2
1 1
4 4
4 4
2 2
2 2
2 2
4 4
4 4
PART NUMBER
308045
402666
402612
402677
404294
801026*
817200*
402121*
817408*
809694*
G032*
G030*
SHEET 1 OF 4
