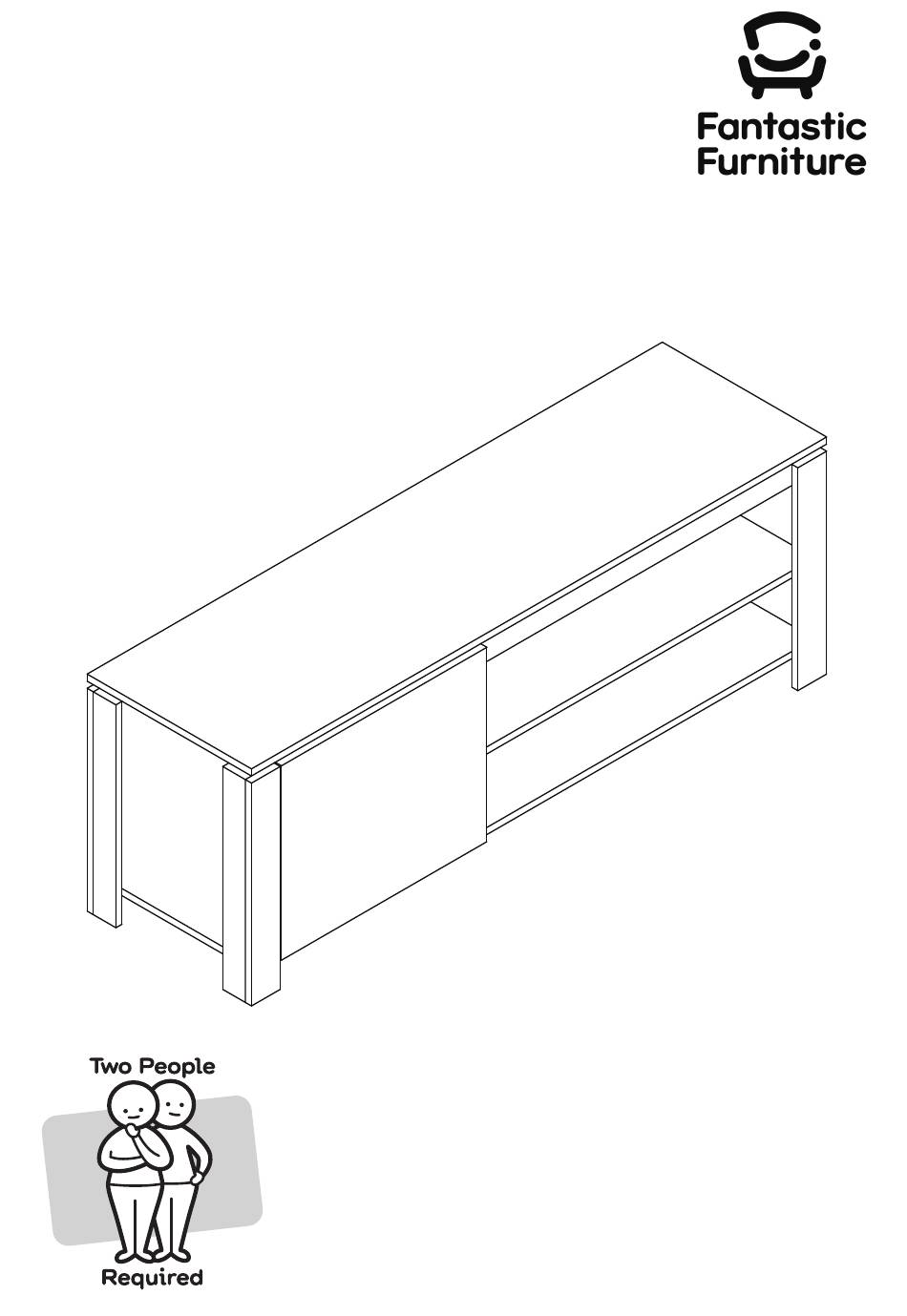

  • Page 1 Version 1.0 Nook Lowline 1400mm fantasticfurniture.com.au...
  • Page 2 Secure it! Reduce the risk of furniture tip-over accidents Please seek professional advice if you are in doubt of what fixing device to use. Recommended Weight Capacity :30kg on top • • • Do not • • Wall attachment guide (with available wood stud) (with available wood stud)
  • Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 3 fantasticfurniture.com.au...

  • Page 4: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 5: What You Need

    What you need to assemble the product (P14) Top Panel Rail (P1) DO NOT USE (P15) (P13) (P11) Other tools you need: Phillips head screwdriver; Rail Hammer (P16) Shelf (P4) Rail (P16) Divider (P12) (P5) (P10) Parts list Top Panel (P1); Bottom Panel (P2);...
  • Page 6 Step 1 You will need (P13) (P14) 10 x Cam Bolts 4 x Plastic (H3) Glides (H9) (P11) Phillips Head Hammer (P12) Screwdriver Attach 10 x Cam Bolts (H3) to Legs (P11, P12, P13 & P14) using the Phillips Head Screwdriver. Secure 4 x Plastic Glides (H9) to the bottom of each Leg (P11, P12, P13 &...
  • Page 7 Step 3 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P5) FLIP (P5) Attach 4 x Cam Bolts (H3) to Divider (P5), securing with the Phillips Head Screwdriver. Step 4 You will need 2 x Cam Bolts Phillips Head (H3) Screwdriver...
  • Page 8 Step 5 This is how a cam nut works..The head of the cam You will need bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the (P3) bolt. 4 x Dowels 4 x Cam Nuts (H1)
  • Page 9 Step 7 You will need 1 x Cam Bolt Phillips Head (H3) Screwdriver (P2) Attach 1 x Cam Bolt (H3) to Bottom Panel (P2), securing with the Phillips Head Screwdriver. Step 8 You will need 2 x Dowels 1 x Cam Nut (P18) (H1) (H4)
  • Page 10 Step 9 You will need (P3) 4 x Dowels 4 x Screws (H1) (H2) (P5) (P2) Phillips Head Screwdriver Insert 4 x Dowels (H1) into the holes of Side Panel (P3) and Divider (P5) as shown. Attach Bottom Panel (P2) to Side Panel (P3) and Divider (P5) with 4 x Screws (H2), tightening with the Phillips Head Screwdriver.
  • Page 11 Step 11 You will need 1 x Allen Key 4 x Cam Nuts (H4) (H8) (P4) (P14) (P2) Insert 4x Cam Nuts (H4) into Shelf (P4) and Bottom Panel (P2) as shown. Rotate (P11) the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 12 (P10) Step 13 You will need (P3) 4 x Dowels 6 x Cam Nuts (H1) (H4) (P13) Phillips Head Screwdriver (P14) (P2) Insert 4 x Dowels (H1) into Side Panel (P3) and Leg (P14) as shown. Insert 6 x Cam Nuts (H4) into Bottom Panel (P2), Side Panel (P3) and Leg (P14) as shown.
  • Page 13 Step 15 (P7) You will need (P3) (P9) 4 x Bolts 1 x Allen Key (H7) (H8) Attach Legs (P7 & P9) to Side Panel (P3) using 4 x Bolts (H7), tightening with the Allen Key (H8). Step 16 You will need 8 x Hinge 2 x Hinges Screws (H5)
  • Page 14 (P12) Step 17 You will need (P11) 4 x Dowels 6 x Cam Nuts (H1) (H4) (P8) Phillips Head (P2) Screwdriver Insert 4 x Dowels (H1) (P3) into Side Panel (P3) and Leg (P11) as shown. Insert 6 x Cam Nuts (H4) into Bottom Panel (P2), Side Panel (P3) and Leg (P11) as shown.
  • Page 15 Step 19 You will need 12 x Cam Bolts Phillips Head (H3) (P1) Screwdriver Attach 12 x Cam Bolts (H3) to Top Panel (P1), tightening with the Phillips Head Screwdriver. Step 20 You will need (P15) (P1) 2 x Dowels 12 x Cam Nuts (H1) (H4)
  • Page 16 Step 21 (P14) You will need (P11) 4 x Stickers (H11) Cover the Cam Nut holes on Legs (P11 & P14) using 4 x Stickers (H11). Step 22 You will need 1 x Shim (H12) (P5) Attach 1 x Shim (H12) on Divider (P5) as shown. fantasticfurniture.com.au Page 16...

  • Page 17: Job Complete

    Step 23 You will need (P1) 1 x Safety 1 x Screw Strap (H13) (H14) 1 x Washer Phillips Head (H15) Screwdriver We strongly advise that you use the wall safety strap provided to Secure 1 x Safety Strap (H13) to Top Panel (P1) prevent the unit toppling.
