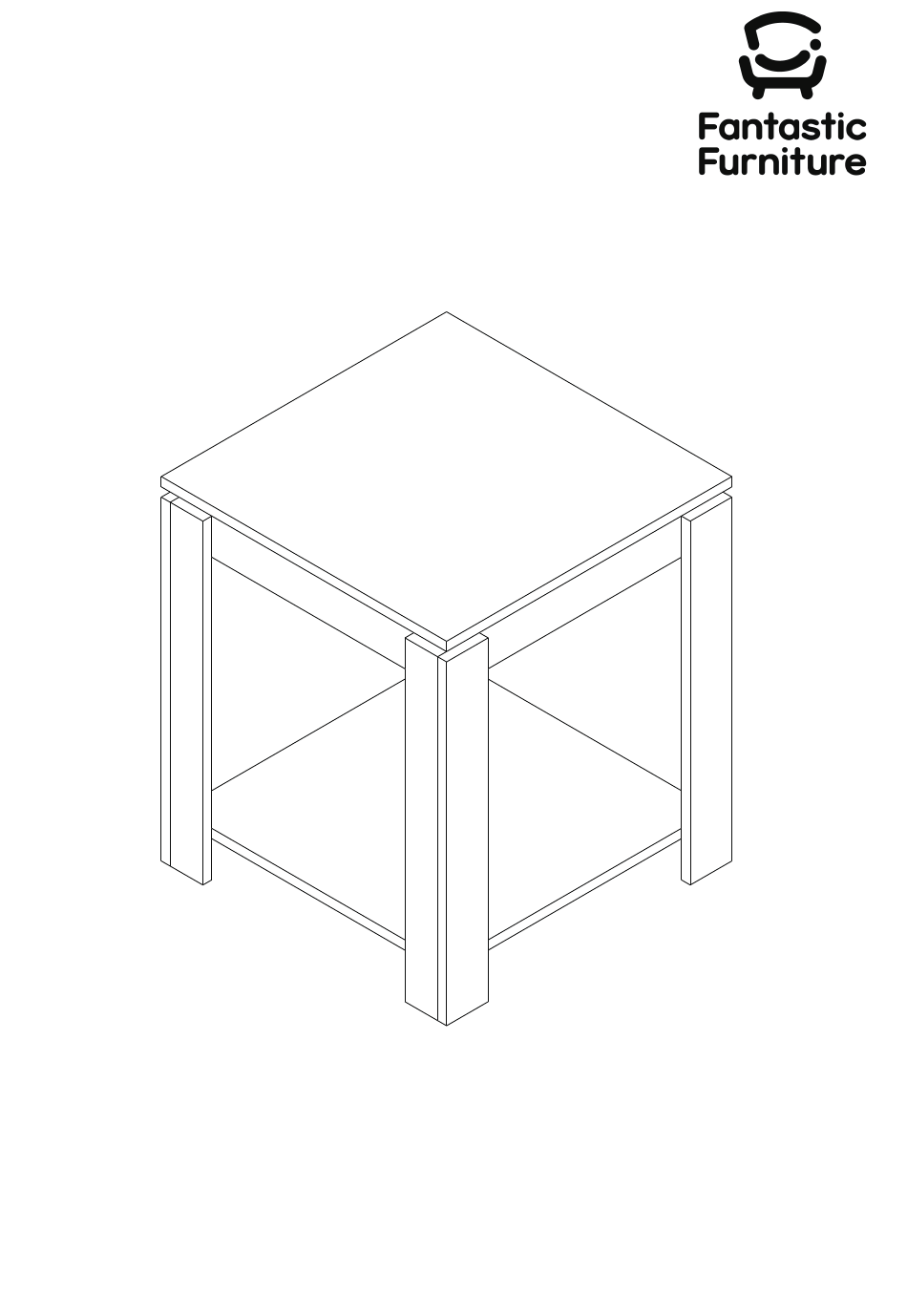

- Page 1 Version 1.0 Nook Side Table 1 Shelf fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Top Panel (P7) DO NOT USE (P1) (P8) Other tools you need: Phillips head screwdriver; Hammer; Rail Rail (P3) (P4) (P6) Rail (P5) (P4) Rail (P5) (P3) (P6) Parts list Bottom Panel Top Panel (P1); (P2) Bottom Panel (P2);... - Page 5 Step 1 You will need 12 x Cam Bolts Phillips head screwdriver (H3) (P5) (P7) Attach 12 x Cam Bolts (H3) to Legs (P5 x2 & P7 x2) as shown, tightening with the Phillips Head Screwdriver. Step 2 You will need 4 x Cam Bolts Phillips head (H3)
- Page 6 Step 3 You will need (P3) (P4) 8 x Dowels 4 x Screws (H1) (H2) (P4) Phillips Head Screwdriver (P3) Insert 8 x Dowels (H1) into Rails (P4 x 2). Attach Rails (P3 x 2) to Rails (P4 x 2) using 4 x Screws (H2), tightening with the Phillips Head Screwdriver.
- Page 7 Step 5 (P8) You will need (P4) 2 x Dowels 2 x Cam Nuts (P4) (H1) (H4) (P6) 2 x Bolts 1 x Allen key (H5) (H6) (P2) Phillips Head Screwdriver Insert 2 x Dowels (H1) and 2 x Cam Nuts (H4) into Bottom Panel (P2). Rotate the nuts so the arrows point towards the incoming bolts.
- Page 8 (P7) Step 7 You will need (P5) (P8) 4 x Dowels 6 x Cam Nuts (H1) (H4) (P6) Phillips Head Screwdriver (P2) Carefully turn the side table over. Insert 4 x Dowels (H1) into Legs (P6 & P8). Insert 6 x Cam Nuts (H4) into Legs (P6 &...
- Page 9 Step 9 You will need 8 x Cam Bolts Phillips head screwdriver (H3) (P1) Attach 8 x Cam Bolts (H3) to Top Panel (P1) as shown, tightening with the Phillips Head Screwdriver. Step 10 You will need 8 x Cam Nuts Phillips Head (H4) Screwdriver...
-
Page 10: Job Complete
Step 11 You will need (P5) (P6) (P8) (P7) 8 x Plastic Hammer Glides (H7) H7 H7 (P7) (P8) (P5) (P6) Secure 8 x Plastic Glides (H7) to Legs (P5 & P6 & P7 & P8) as shown using the Hammer. Step 12 You will need 8 x Stickers...
