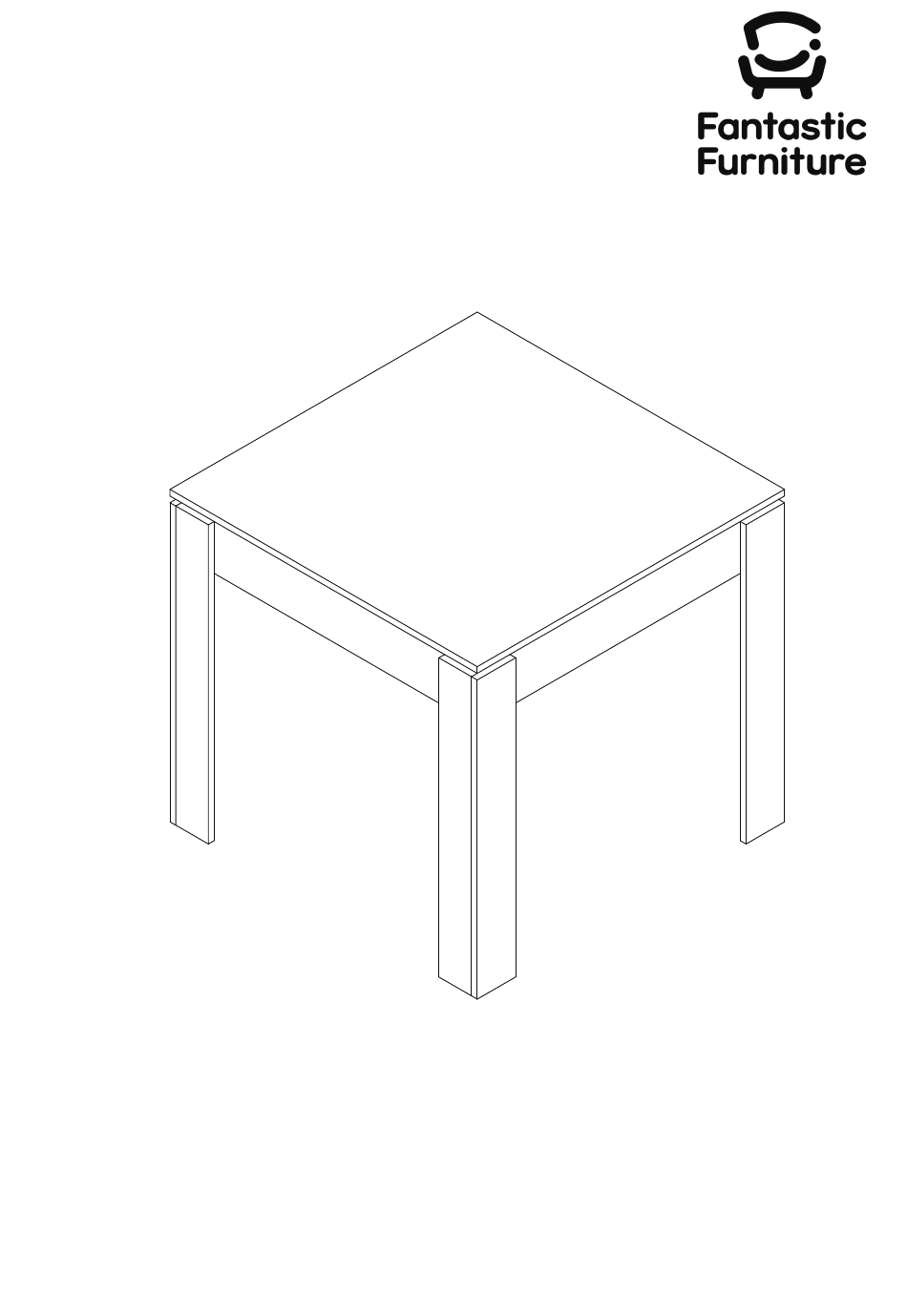

  • Page 1 Version 1.0 Nook Table D4 fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need to assemble the product Top Panel (P1) DO NOT USE Rail (P2) Other tools you need: Rail Phillips head screwdriver; (P3) Hammer; Rail (P3) (P7) Rail (P2) (P6) (P5) (P4) (P4) (P5) Parts list Top Panel (P1); (P6) 2 x Rails (P2);...
  • Page 5 Step 1 You will need 12 x Cam Bolts Phillips head (H3) screwdriver (P4) (P6) Attach 12 x Cam Bolts (H3) to Legs (P4 x2 & P6 x2) as shown, tightening with the Phillips Head Screwdriver. Step 2 This is how a cam nut works..The head of the cam You will need bolt goes into the...
  • Page 6 Step 3 You will need 4 x Dowels 8 x Long Bolts (P3) (H1) (H2) (P2) 1 x Allen key (H6) (P2) (P3) Insert 4 x Dowels (H1) into 2 x Rails (P2). Attach 2 x Rails (P3) to 2 x Rails (P2) with 8 x Long Bolts (H2) by tightening with the Allen Key (H6).
  • Page 7 Step 5 (P3) (P2) You will need Phillips head 12 x Cam Nuts screwdriver (H4) (P2) (P3) (P1) Insert 12 x Cam Nuts (H4) into Rails (P2 x 2 & P3 x 2). Rotate the nuts so the arrows point towards the incoming bolts.

  • Page 8: Job Complete

    H7 H7 Step 7 (P4) (P5) You will need (P7) (P6) 8 x Plastic 8 x Stickers Glides (H7) (H8) (P7) (P6) Hammer (P5) (P4) Cover the cam nut holes on Legs (P5 & P7) using 8 x Stickers (H8). Secure 8 x Plastic Glides (H7) to the Legs (P4 x2 &...
