Bticino LINEA 5000 Manual

LINEA 5000 - 7" vertical display module
with wide-angle camera (5 M Pixels)
Description
Display and audio/video module to be combined with one of the 5 frames in different
finishes for the creation of 2 wires systems. Equipped with an HQ camera with wide-
angle field of view (119° horizontal - 151° diagonal), white LEDs for lighting and twilight
sensor for night vision. High-resolution 7" touch screen display with shatter-proof glass
(IK08), anti-fingerprint and proximity sensor for automatic switching on. With a digital
microphone and echo eliminator for optimal sound performance. The flexible and
user-friendly graphic interface is adaptable to any type of apartment block and allows a
choice of 3 different call modes: address book call (list of residents' names), numeric or
alphanumeric code call and block-staircase-floor-apartment logic code call. The direct
call to the guard station and the customisation of the homepage logos also make it
suitable for solutions with concierge or for commercial establishments. With advanced
features such as voice feedback, automatic theme change (light/dark), customisation of
welcome messages or instructions and temporary access code forwarding, it is suitable
for residents and visitors of all ages and abilities. It also supports different modes for
accessing the building: lock release with display code, RFID badge or Bluetooth via the
Home + Security App, the resident's app. Programming and configuration requires
the use of Home + Project (App or PC), the digital tool for the professional. Using this
tool, it is possible to complete the entire configuration at the office, share it with other
professionals and upload it to the display module via Bluetooth. Changes to residents'
names and access codes are quick and smart, either on-site (via Bluetooth) or remotely
(if the module has an active WiFi or Ethernet connection). Installation with 3-module
flush mounted box 350030 or with wall mounted box 345331 or 345332. The book-like
opening of the module allows for easy wiring. It allows the activation of an electrical
door lock directly connected to clamps S+ and S- (18 V 4 A impulsive - 250 mA holding
current 30 Ohm max) and the connection of a local door lock release pushbutton on
clamps PL.
Related items
345101 LINEA 5000 - Cover plate aluminium
345102 LINEA 5000 - Cover plate nickel
345103 LINEA 5000 - Cover plate gold
345104 LINEA 5000 - Cover plate titanium
345105 LINEA 5000 - Cover plate steel
Technical data
Minimum required voltage: 23 V
Power supply from Bus: 23 – 27 Vdc
Stand by absorption: 45 mA
Max. absorption: 560 mA
Operating temperature: (-25) – (+ 70) °C
RFID: Badge reader Frequency 13.56 MHz;
Badge reader transmission power < 42 dBuA/m @ 10 m
Bluetooth: Frequency range: 2402 – 2480 MHz
Power level < 10 dBm
Wi-Fi: Frequency range 2.4 – 2.4835 GHz
Transmission power < 20 dBm
Wireless device in compliance with 802.11b/g/n s
tandard
WEP/WPA/WPA2 safety protocol. IPv4 protocol
Colour sensor 1/2.8 " Lens: F: 2.3; f: 2.5 mm
Resolution 625 TV lines (horizontal); Interlace 2: 1
Shooting field lighting with white LEDs; Automatic brightness adjustment.
This device includes the Open Source software. For license and software information,
connect your Windows/Linus PC to the device through the mini-USB port.
Warning: in case of a power failure, the device does not work and cannot be reached,
any collection of personal data is interrupted.
www.bticino.com
ST-00001800-EN

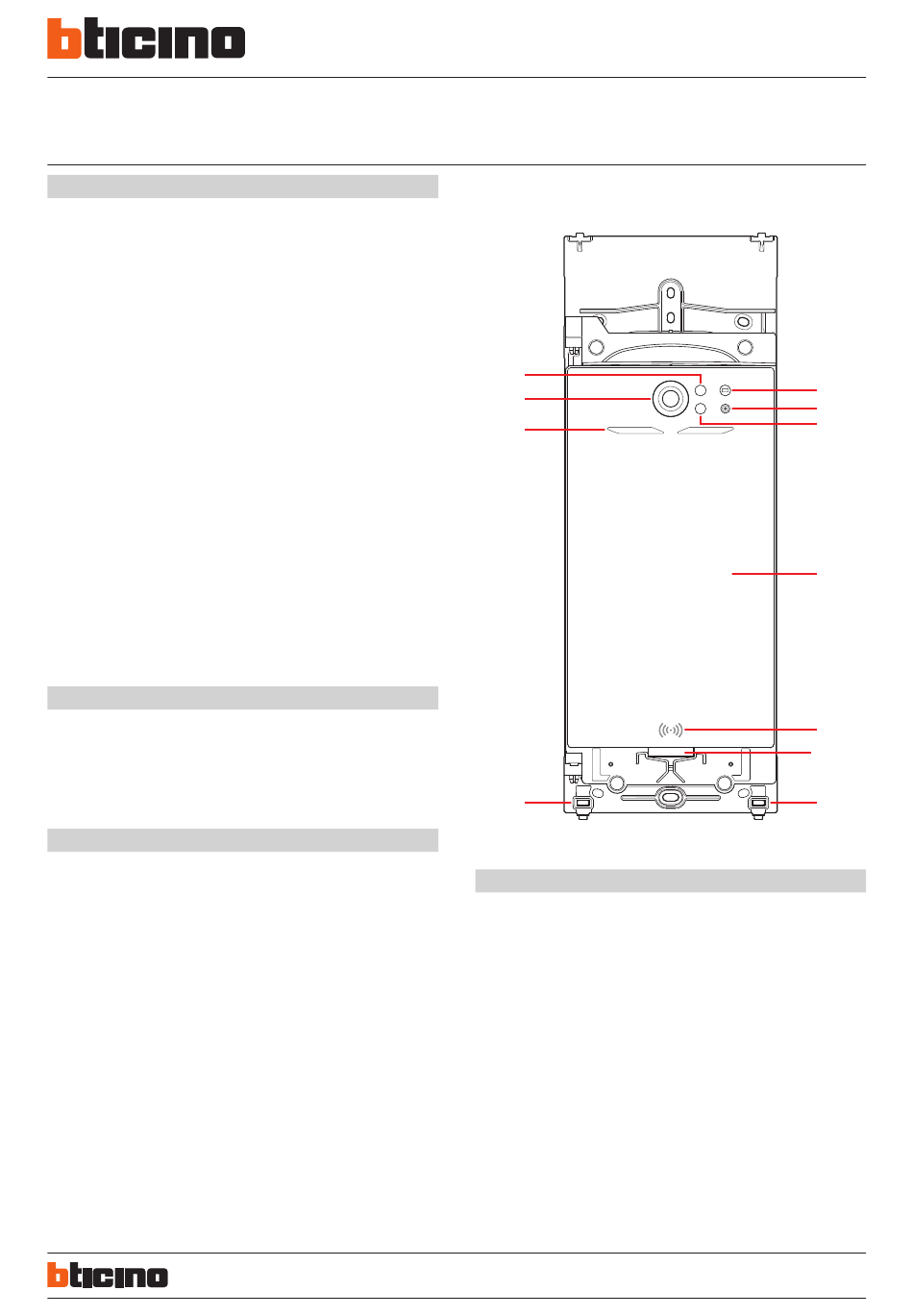

Front view
4
3
2
1
Legend
Locking screws for finishing frame
1.
2. Viewing field lighting LED
Camera
3.
Lighting sensor
4.
5. Sensore luminosità
Microphone
6.
Proximity sensor emitter
7.
Touch display 7"
8.
RFID badge reader
9.
Speaker
10.
01/10/2024
345000
5
6
7
8
9
10
1
1
