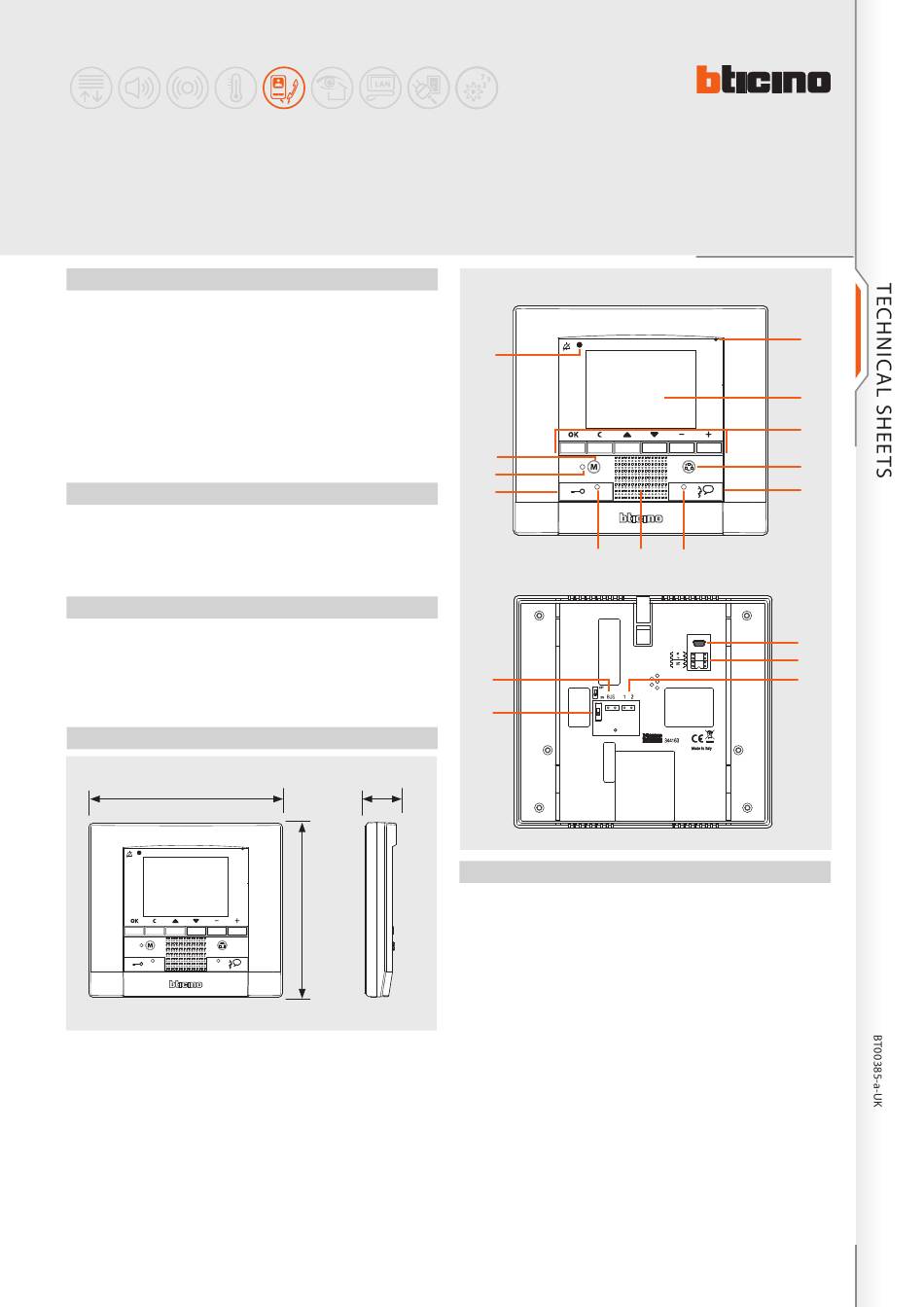

Bticino Polyx Memory 344163 Technical Sheet

Polyx Memory Display

Description

2 WIRE wall mounted speaker phone video handset with audio and video memory.
With 3.5" colour LCD display with PC customisable icons OSD navigation menu for
the management of the following MY HOME applications: Video door entry system,
temperature control, sound system, scenarios, burglar alarm. With video door entry
system answering machine with call memory function.
LED signalling for: call exclusion, door status, connection with entrance panel, and
answering machine status. It can be wall mounted using the appropriate bracket
(supplied).
Programming and configuration using the TiPolyxMemoryDisplay software supplied
with the product.

Related items

346020 (additional 2 DIN modules power supply) - optional, for local powering of the
video handset, when maximum installation distances are necessary.

Technical data

Power supply from SCS BUS:
Stand-by absorption:
Max. operating absorption:
Operating temperature:

Dimensional data

168 mm
18 – 27 Vdc
10 mA
330 mA
0 - 40 °C
30 mm
150 mm

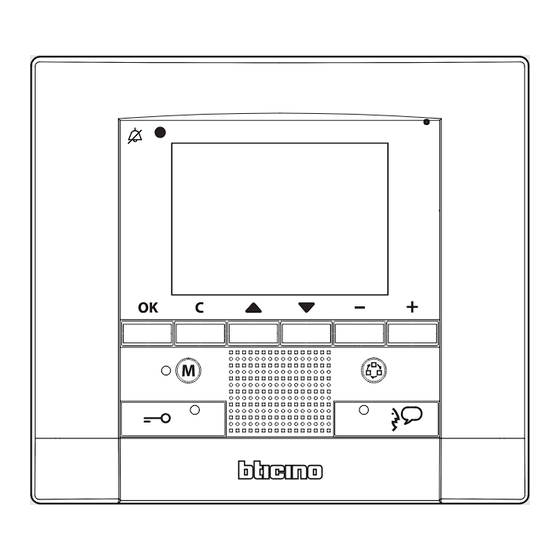

Front view
12
11
10
9
8
Back view
17
16

Legend

1. Microphone
2. 3.5 " LCD colour display
3. Navigation and confirmation keys in the icon menu
4. Entrance panel/camera scrolling activation key
5. Audio connection activation/deactivation key
6. Connection status LED
7. Loudspeaker
8. Door lock status LED
9. Door lock activation key
10. Audio video answering machine status LED
11. Answering machine key: enable/disable the answering machine function
(if enabled by the menu)
12. Bell exclusion notification LED
13. Mini USB connector for connection to the PC
14. Configurator socket
15. Additional power supply connector (1-2)
16. Line termination ON/OFF micro-switch
17. 2 WIRE SCS/BUS connection
344163
1
2
3
4
5
7 6
13
14
15
1
