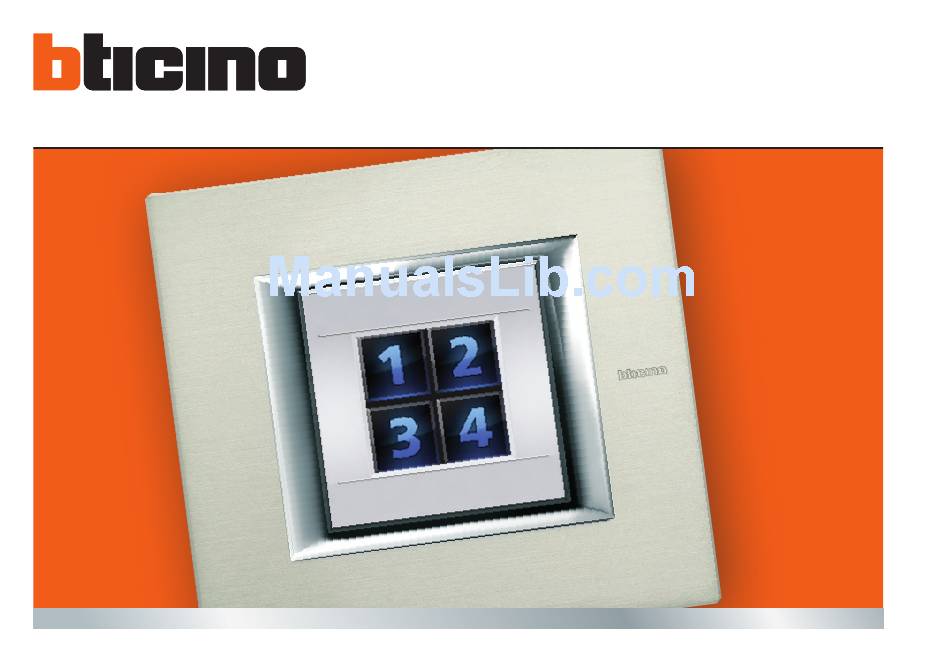

HC/HS/HD/L/N/NT 4891
Local Display
User Manual
10/14-01 PC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC 4891 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bticino HC 4891

Summary of Contents for Bticino HC 4891

  • Page 1 HC/HS/HD/L/N/NT 4891 Local Display User Manual 10/14-01 PC...

  • Page 3: Table Of Contents

    Local Display 1 Introduction 1.1 Your Local Display: use it immediately! 1.1.1 General description 1.1.2 Display notifications 2 Use 2.1 Operating mode 2.1.1 Scenarios 2.1.2 Sound system 2.1.3 Alarm clock, Date/Time, and Audio 2.1.4 Temperature control (4 zones) 2.1.5 Temperature control (99 zones) 2.1.6 Stand-alone temperature control (without central unit) 2.1.7 Consumption display...
  • Page 5 Local Display Introduction Your Local Display: use it immediately!

  • Page 6: Introduction

    1 Introduction Your Local Display: use it immediately! 1.1.2 Display notifications 1.1.1 General description In case of abnormal operation, the following notification icon will be displayed at the centre of the screen Local Display is a device for the control of up to four different functions. These can be selected among automation (scenarios), sound system, temperature control, consumption display, and load management functions of the MY HOME system.
  • Page 7 Local Display Operating mode...

  • Page 8: Use

    2 Use Operating mode Local Display has five operating mode: • Scenario mode: this mode can be used to check/change the four set scenarios. Sound Temperature • Sound system mode: this mode can be used to set a sound source system control for the sound system.

  • Page 9: Scenarios

    Local Display Scenario programming (for the scenario module) 2.1.1 Scenarios This mode is used to activate, set, or delete the scenarios saved in the To program a scenario, touch the icon the scenario must be associated scenario module, or in the scenario programmer. to for three seconds.
  • Page 10 2 Use Erasing a scenario To erase a scenario, touch the corresponding icon for 10 seconds. An audible signal will be heard, and the screen will display a message confirming that the scenario has been erased: ERASE Message Local Display will return to the Home Page. In the next page, your installer will fill the table of the scenarios associ- ated to your Local Display.
  • Page 11 Local Display SCENARIO SCENARIO ICONS CORRESPONDING SCENARIO ICONS CORRESPONDING SCENARIO...

  • Page 12: Sound System

    2 Use 2.1.2 Sound system This mode can be used to switch the system on or off, to control the Preset source – Radio: volume, to scroll through the selected sources (maximum four), and to manage them. Home page Radio frequency If the associated amplifier is off, the following page is displayed: 106.70...

  • Page 13: Alarm Clock, Date/Time, And Audio

    Local Display 2.1.3 Alarm clock, Date/Time, and Audio Alarm clock status setup To access to screen for setting the alarm clock and date/time function, touch the icon of the Home Page for 3 seconds. change the status of the alarm clock 00:00 The selected row appears in blue The following alarm clock function page will appear.
  • Page 14 2 Use Setting the alarm clock time Setting the Time ON BEEP 00:00 Alarm clock times are displayed Hours are displayed in blue in blue 00:00 01/01/00 ON BEEP increase and decrease 08:00 increase and decrease by one unit the alarm clock hour the hour by one unit confirm the selection and go 07:00...
  • Page 15 Local Display Setting the Date Audio programming This function is used to adjust the playback volume of the set alarm. 08:25 Days are displayed in blue AUDIO 01/01/00 The volume is displayed in blue VOL: 50% 08:25 increase and decrease the days by one unit AUDIO confirm the selection and go...

  • Page 16: Temperature Control (4 Zones)

    2 Use 2.1.4 Temperature control (4 zones) Temperature adjustment It can be used to set the local temperature, set anti-freeze/thermal Use the arrow icons to change the temperature locally (-3) – (+3) °C. protection, or switch the operating mode OFF. Home page Increase the Fan-Coil...
  • Page 17 Local Display Fan-coil speed Operating mode Touch the fan-coil icon on the screen to gradually increase the speed Touch the “change operating mode” icon , to select one of the of the fan-coil connected to the Local Display system. three operating modes, cycling through OFF, Anti-freeze/Thermal protection, and automatic.

  • Page 18: Temperature Control (99 Zones)

    2 Use 2.1.5 Temperature control (99 zones) Timed manual operation Differently from the 4 zone system, with the 99 zone central unit, in It is possible to set any temperature value, with 0.5 °C increase/ automatic mode it is possible to use Local Display to set the desired decrease steps.

  • Page 19: Stand-Alone Temperature Control (Without Central Unit)

    Local Display 2.1.6 Stand-alone temperature control (without central unit) Operating mode If Local Display has been installed as room thermostat (without tem- Touch and keep your finger on the icon to switch between perature control central unit), it is possible to simply use its icons to summer and winter.

  • Page 20: Consumption Display

    2 Use 2.1.7 Consumption display This function can be used to monitor energy consumptions by display- While scrolling through the display modes, the daily/monthly/yearly ing the following rows/items: electricity, water, gas, sanitary hot information shown is cumulative. water, heating/cooling. It is also possible to set two different thresholds, to warn the user when energy consumption reaches a certain level.
  • Page 21 Local Display Tariff setup Local Display gives the possibility of setting a tariff, so that consumption data may be displayed as financial costs. To access the tariff setup screen press the icon for a few seconds, until an audible signal is heard. The following page appears.
  • Page 22 2 Use Programming menu Threshold levels page The programming menu can be used to set the current date and time, set the electric consumption threshold levels, and enable/disable the audible signal that notifies the user when these thresholds are exceeded. To access the programming menu press the icon.
  • Page 23 Local Display Setting the time Setting the Date 00:00 08:25 Days are displayed in blue change the hour 01/01/00 01/01/00 00:00 08:25 increase and decrease Hours are displayed in blue the days by one unit 01/01/00 confirm the selection and go 10/01/00 to the month selection Months are displayed in blue...
  • Page 24 2 Use Threshold setup Beep setup 2000 BEEP The upper threshold is displayed The beep status is displayed in blue in blue 2500 2800 BEEP increase and decrease the threshold value by one unit enable / disable the beep confirm the selection and go 2500 to lower threshold selection confirm the selection...

  • Page 25: Load Management

    Local Display 2.1.8 Load management This function can be used to display the energy loads and the corre- sponding priorities, as well as to enable and disable them. If the load is disabled, the following page is displayed, showing the Home page icon, to indicate that the load management central unit has detected a system overload, therefore disabling the load.
  • Page 26 2 Use Load information display Menu Setup If an advanced actuator is connected to the system, Local Display gives The setup menu can be used to set the current date and time, and to the possibility to display the current load absorption. enable/disable the notification beep emitted to warn that the load To access this function press the icon.
  • Page 27 Local Display Setting the time Setting the Date 00:00 08:25 Days are displayed in blue change the hours 01/01/00 01/01/00 00:00 08:25 increase and decrease Hours are displayed in blue the days by one unit 01/01/00 confirm the selection and go 10/01/00 to the month selection Months are displayed in blue...
  • Page 28 2 Use Beep setup BEEP The beep status is displayed in blue BEEP enable / disable the beep confirm the selection 08:25 To return to the previous screen, slide your finger diagonally from the top right of the screen to the 10/08/08 bottom left.
  • Page 30 BTicino SpA Viale Borri, 231 21100 Varese - Italy www.bticino.com BTicino SpA reserves at any time the right to modify the contents of this booklet and to communicate in any form and modality, the changes brought to the same...
