Control Functions; Power Indicator Led - Icom IC-502A Instruction Manual

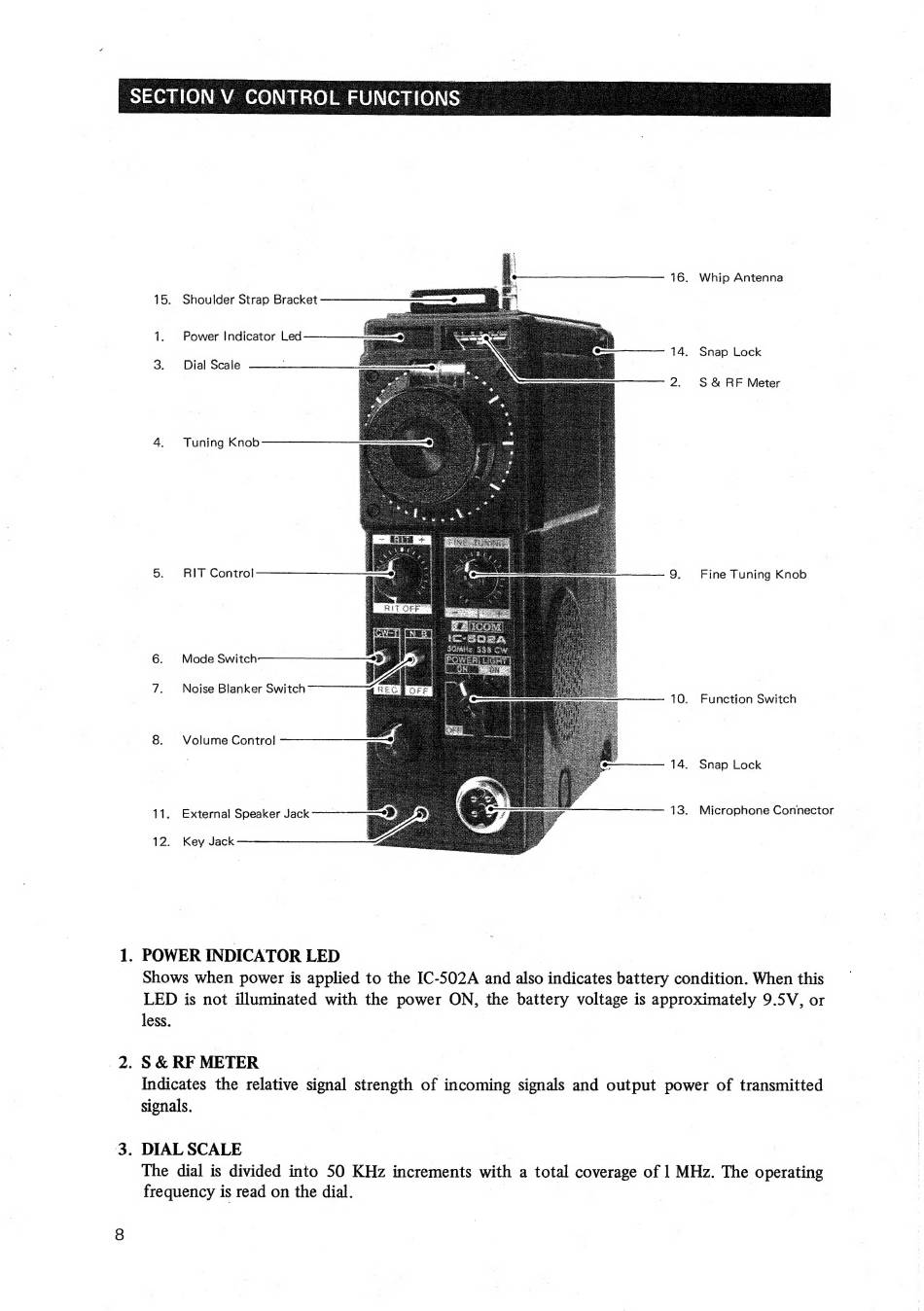

"SECTION V CONTROL FUNCTIONS 。
15.
11.
12.
16. Whip Antenna
Shoulder Strap Bracket 一 一 一 一 一 一 一 一 一 一 一 多
Power Indicator Led ——————— ==
e. — — 14. Snap Lock
Dial Scale — យ
2. S& RF Meter
Tuning Knob — —— — ——— sm うっ
RIT Control ——— — — — S
9. Fine Tuning Knob
Mode Switch- 一 一 一 ーーー デ ーー で
Noise Blanker Switch m T о 。 қ
10. Function Switch
Volume Control xe
ө-------- 14. Snap Lock
External Speaker Jack
Key Jack
1. POWER INDICATOR LED
Shows when power is applied to the IC-502A and also indicates battery condition. When this
LED is not illuminated with the power ON, the battery voltage is approximately 9.5V, or
less.
. 2. S& RF METER
Indicates the relative signal strength of incoming signals and output power of transmitted
signals.
3. DIAL SCALE
The dial is divided into 50 KHz increments with a total coverage of 1 MHz. The operating
frequency is read on the dial.
