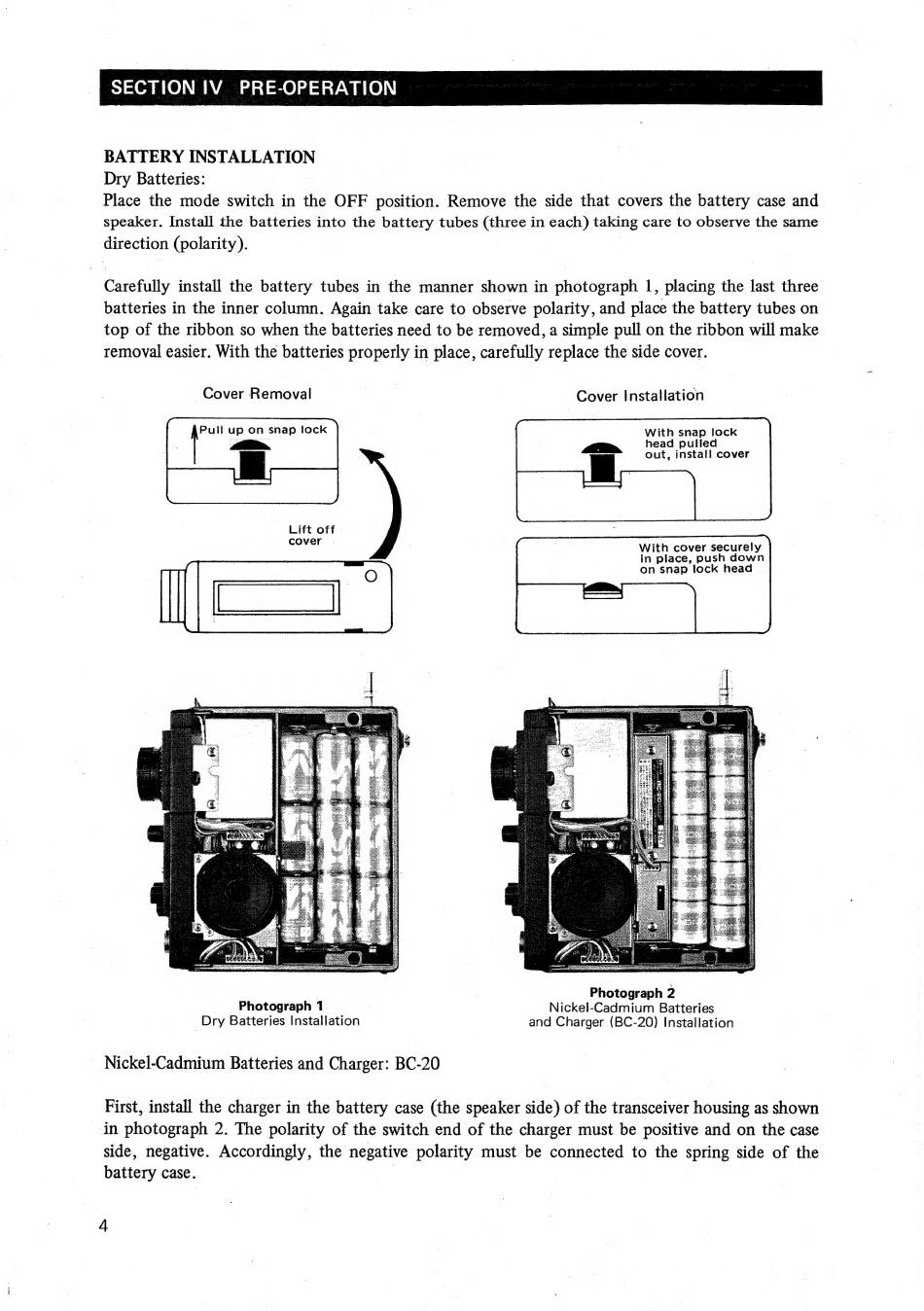

SECTION IV PRE-OPERATION
BATTERY INSTALLATION
Dry Batteries:
Place the mode switch in the OFF position. Remove the side that covers the battery case and
speaker. Install the batteries into the battery tubes (three in each) taking care to observe the same
direction (polarity).
Carefully install the battery tubes in the manner shown in photograph 1, placing the last three
batteries in the inner column. Again take care to observe polarity, and place the battery tubes on
top of the ribbon so when the batteries need to be removed, a simple pull on the ribbon will make
removal easier. With the batteries properly in place, carefully replace the side cover.
Cover Removal Cover Installation
Pull up on snap lock
と =
With snap lock
head pulled
out, install cover
Lift off
in place, push down
on snap lock head
Photograph 2
Photograph 1 Nickel-Cadmium Batteries
Dry Batteries Installation and Charger (BC-20) Installation
Nickel-Cadmium Batteries and Charger: BC-20
First, install the charger in the battery case (the speaker side) of the transceiver housing as shown
in photograph 2. The polarity of the switch end of the charger must be positive and on the case
side, negative. Accordingly, the negative polarity must be connected to the spring side of the
battery case. |
