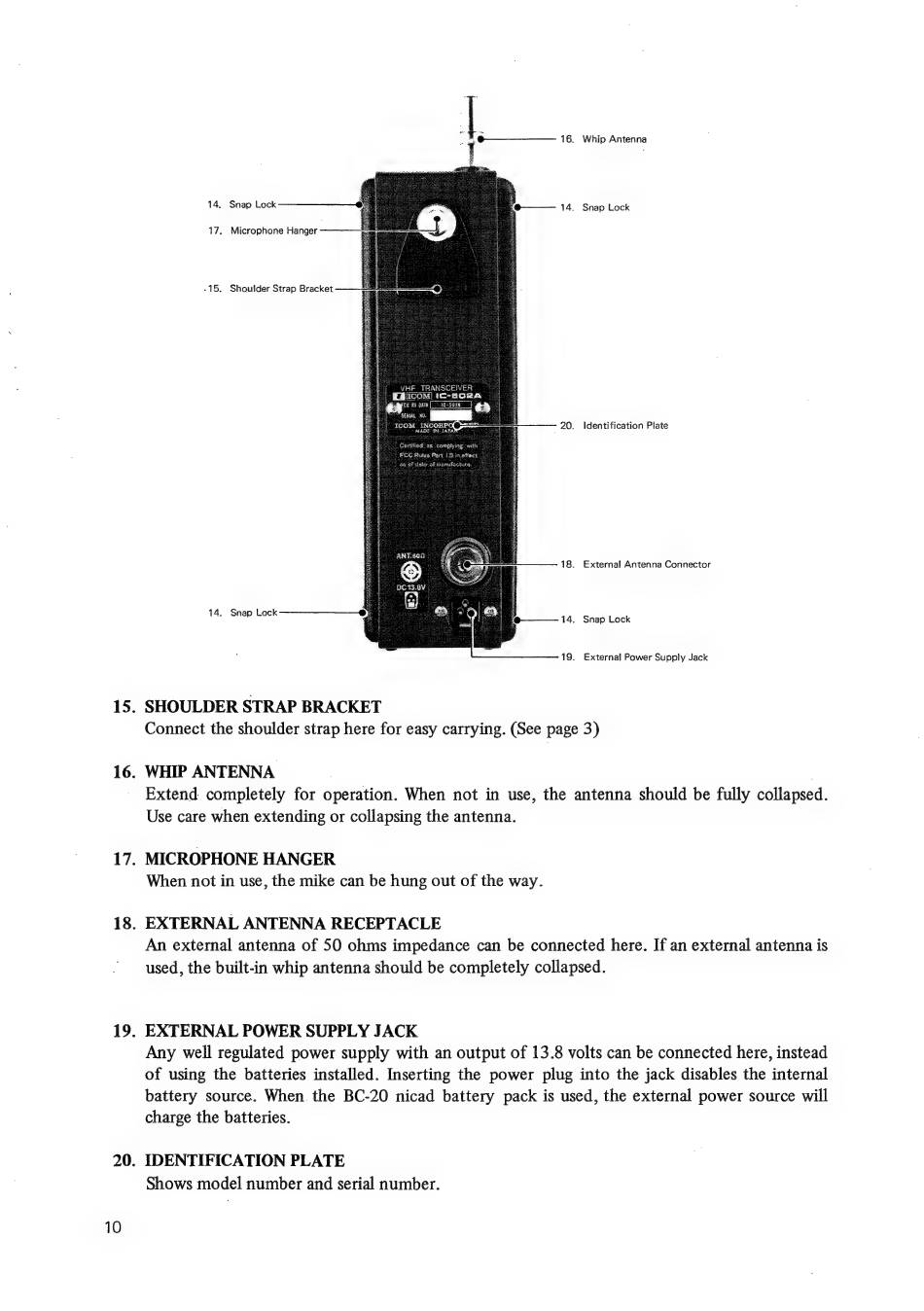

Whip Antenna; Microphone Hanger - Icom IC-502A Instruction Manual

15.
16.
17
18.
19.
20.
10
А | 16. Whip Antenna
1
17. Microphone Hanger
-15. Shoulder Strap Bracket
teou RE E - 20. Identification Plate
18. External Antenna Connector
А к--------ө 14.
Snap Loc
Ө----- 14.
Snap Lock
19. External Power Supply Jack
SHOULDER STRAP BRACKET
Connect the shoulder strap here for easy carrying. (See page 3)
WHIP ANTENNA |
Extend completely for operation. When not in use, the antenna should be fully collapsed.
Use care when extending or collapsing the antenna.
MICROPHONE HANGER
When not in use, the mike can be hung out of the way.
EXTERNAL ANTENNA RECEPTACLE
An external antenna of 50 ohms impedance can be connected here. If an external antenna is
used, the built-in whip antenna should be completely collapsed.
EXTERNAL POWER SUPPLY JACK
Any well regulated power supply with an output of 13.8 volts can be connected here, instead
of using the batteries installed. Inserting the power plug into the jack disables the internal
battery source. When. the BC-20 nicad battery pack is used, the external power source will
charge the batteries.
IDENTIFICATION PLATE
Shows model number and serial number.
