Next, install five nickel-cadmium batteries in the battery tubes in the same direction. Make certain
the (—) minus side is next to the spring. After installation of the charger and batteries in the case,
connect the connector from the transceiver housing to the socket of the charger. Make sure the
switch of the charger is ON, then install the side cover as before. |
АС ВАТТЕКҮ СНАКСЕК: ВС-15
` The BC-15 consists of ап 117/220 Volt AC charger, 10 900mAh nickel-cadmium batteries, and
a fuse box.
To install the BC-15 in the IC-502A, first put the Fuse Box into position, and then install the
nickel-cadmium batteries in accordance with Photograph 3. After installation is completed, con-
nect the output plug of the AC Adaptor to the External Power Supply Jack on the back of the
ІС-502А. For recharging, refer to the manual instructions for the AC adaptor.
After charging is completed, the batteries can be used in the same manner as dry cells. However,
the voltage of nickel-cadmium batteries drops rapidly just before they are exhausted, so when the
Power Indicator LED of the transceiver goes out, be sure to immediately stop using it, and charge
the batteries again.
For use of the other sections, please refer to the charger instruction manual.

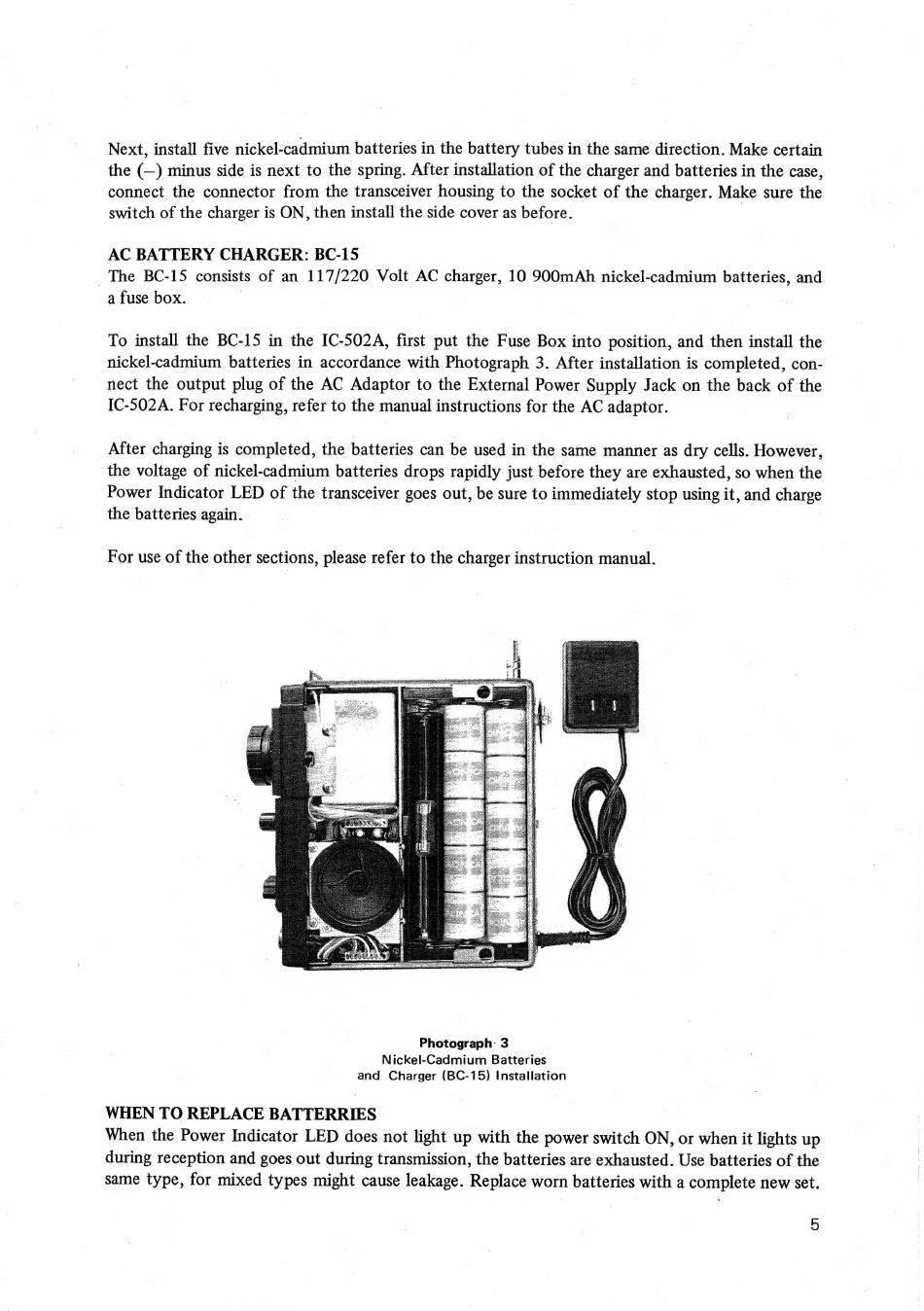

Photograph: 3
Nickel-Cadmium Batteries
and Charger (BC-15) Installation
WHEN TO REPLACE BATTERRIES
5
