FVC SP0146B Installation Manual

Sprinter van low pro roof rack - 170 ext” w/ f80 kit
Hide thumbs

Advertisement

Quick Links

Download this manual

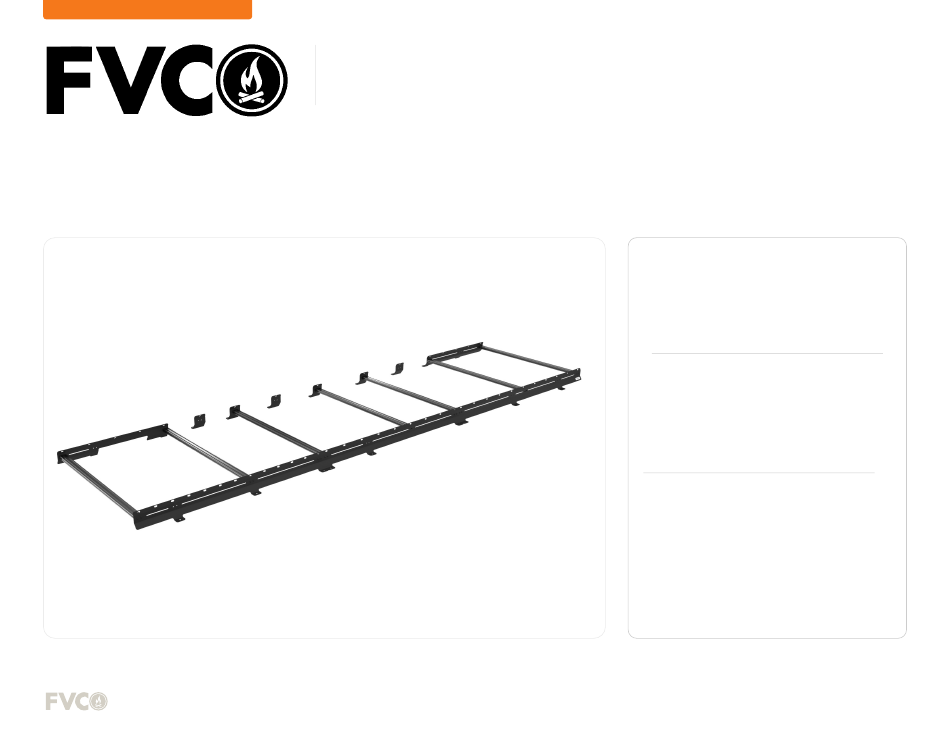

S PRI NTER VAN LOW PRO R OOF RACK - 170 E XT " W/ F80 KIT
SP0146 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
MEASURING TAPE
+
7/32" ALLEN WRENCH
+
3/16" ALLEN WRENCH
+
5/32" ALLEN WRENCH
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1-2 HOURS
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
