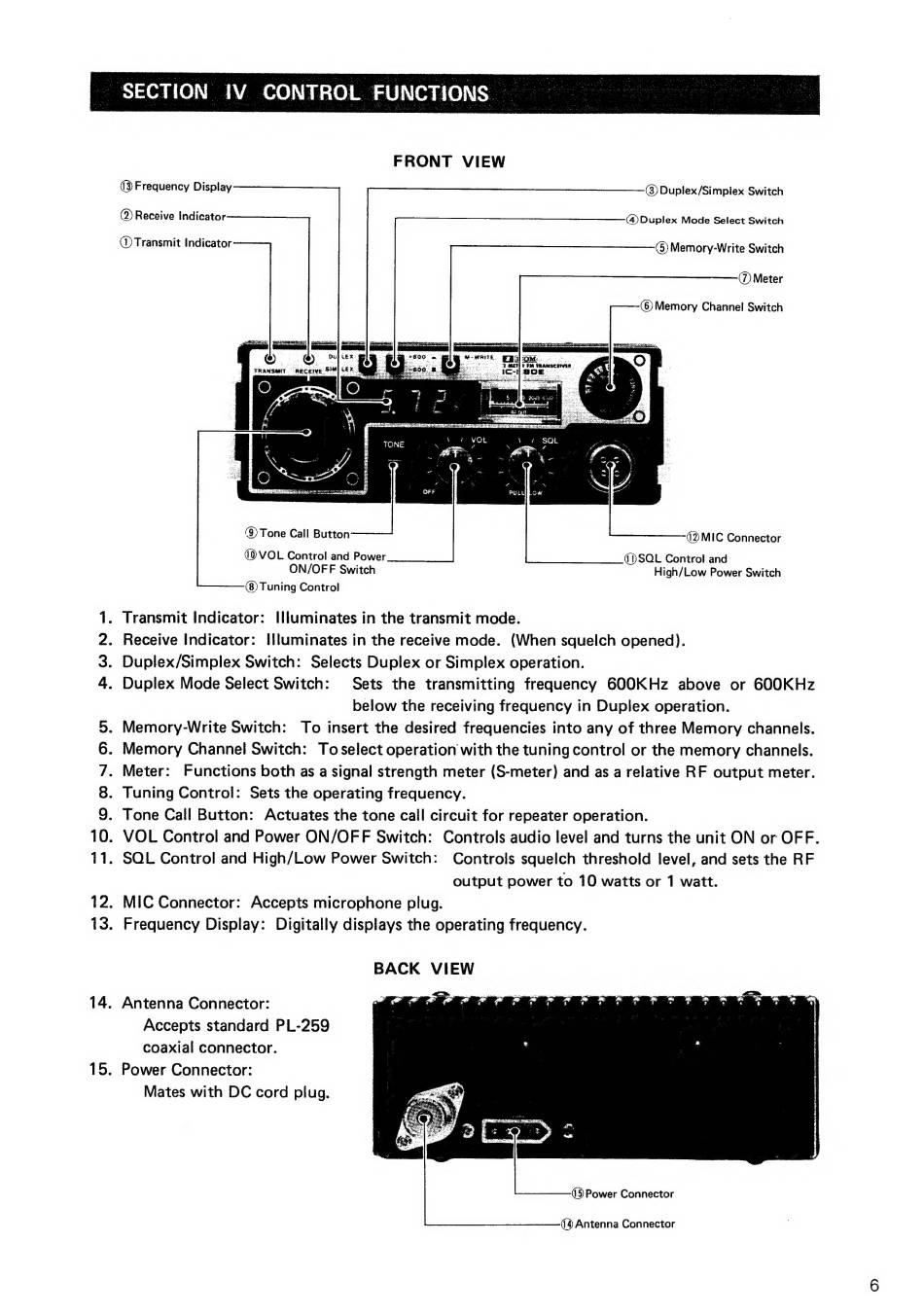

FRONT VIEW
(7) Meter
(6) Memory Channel Switch
1. Transmit Indicator: Illuminates in the transmit mode.
2. Receive Indicator: liluminates т the receive mode. (When squelch opened).
3. Duplex/Simplex Switch: Selects Duplex or Simplex operation.
4. Duplex Mode Select Switch: Sets the transmitting frequency 600KHz above or 600KHz
below the receiving frequency in Duplex operation.
5. Memory-Write Switch: To insert the desired frequencies into any of three Memory channels.
6. Memory Channel Switch: To select operation with the tuning control or the memory channels.
7. Meter: Functions both as a signal strength meter (S-meter) and as a relative RF output meter.
8. Tuning Control: Sets the operating frequency.
9. Tone Call Button: Actuates the tone call circuit for repeater operation.
0. VOL Control and Power ON/OFF Switch: Controls audio level and turns the unit ON or OFF.
1. SOL Control and High/Low Power Switch: Controls squelch threshold level, and sets the RF
output power to 10 watts or 1 watt.
12. MIC Connector: Accepts microphone plug.
13. Frequency Display: Digitally displays the operating frequency.
BACK VIEW
14. Antenna Connector:
Accepts standard PL-259
coaxial connector.
15. Power Connector:
Mates with DC cord plug.
{9 Power Connector
(4 Antenna Connector
