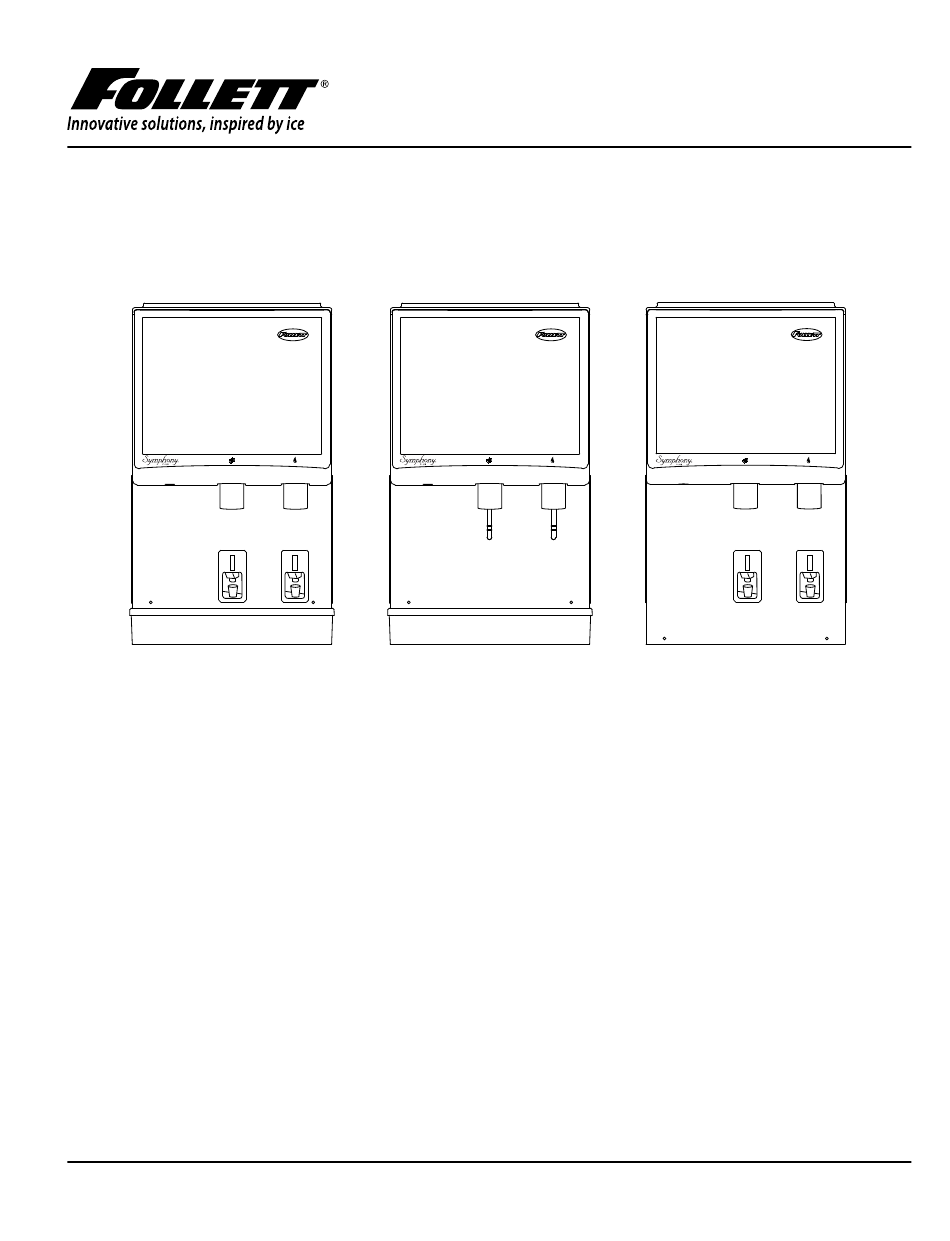

25/50CI425A/W-SI Countertop
Ice-only Dispenser with
SensorSAFE™ Dispensing
25/50CI425A/W-S Countertop Dispenser
with SensorSAFE™ Dispensing
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide carefully
before you begin your installation.
Should you have need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material. Inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Symphony Plus
25CI414A/W, 25HI414A, 50CI414A/W,
Please visit https://www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
25/50CI425A/W-LI Countertop Ice-only
Dispenser with Lever Dispensing
25/50CI425A/W-L Countertop Dispenser
with Lever Dispensing
25 and 50 Series
™
Ice and Water Dispensers
Installation Guide
25/50HI425A-SI Wall Mount
Ice-only Dispenser with
SensorSAFE Dispensing
25/50HI425A-S Wall Mount Dispenser
with SensorSAFE Dispensing
Installation and Service Videos:
www.follettice.com/servicevideolibrary
01568229R00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Symphony Plus 25CI414A
Summary of Contents for Follett Symphony Plus 25CI414A
- Page 1 If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
- Page 2 § This appliance must not be cleaned by a water jet. § User maintence should not be done by children. § Follett recommends a Follett water filter system be installed in the ice machine inlet water line (standard capacity, high capacity, carbonless high capacity).
-
Page 3: Specifications
Specifications Countertop Front View Right Side View Rear View 21" (53.4 cm) 24" (61 cm) 3/8" FPT condenser inlet (water- cooled only) 3/8" FPT 25CI414A condenser 36" outlet (water- (91.5 cm) cooled only) 3/4" FPT drain 50CI414A/W 40" (101.6 cm) NEMA 10.5"... - Page 4 Electrical § 115 V, 60 Hz, 1 phase, 11.0A § Connect to a 15A dedicated circuit. § Furnished with 7 ft (2 m) power cord with a 90° NEMA hospital grade 5-15 plug. Ambient Air temp* 100 F/38 C Max. 50 F/10 C Min.
-
Page 5: Compressor Data
Compressor data Compressor current draw Air-cooled Ambient air temp. 60 F/15.6 C 70 F/21.1 C 80 F/26.7 C 90 F/32.2 C Comp Amperage 5.4A 5.6A 6.0A 6.1A High side pressure (psi) Low side pressure (psi) Locked rotor amps Gearmotor data Split-Phase PSC (permanent split capacitor) Gearmotor current... -
Page 6: Installation
Installation Before you begin § All dispensers must be installed level in both directions to ensure proper operation. § Provide proper ventilation clearances. § Countertop units provide the option of taking utilities out bottom or back of dispenser (on wall mount units and countertop units with legs, utilities exit from back). - Page 7 Installing countertop dispensers with bottom Fig. 3 exiting utilities WARNING! § A sturdy work surface capable of supporting the entire dispenser must be used. § The work surface must be large enough to accommodate height of dispenser. § Failure to provide proper support may result in personal injury.
-
Page 8: Installing Wall Mount Dispensers
Installing wall mount dispensers Fig. 6 – Minimum sink requirements (without drain pan), front view Front View Front View WARNING! Sink centered Sink centered below dispenser below chutes § Wall mount dispensers are intended to be mounted above a sink, eliminating the need for a drain pan. §... - Page 9 1. Locate wall bracket mounting position relative Fig. 8 – Wall bracket location guide to wall studs (Fig. 8). Install the supplied wall bracket with six 3/8" diameter fasteners TOP VIEW (Fig. 10.1). WALL STUDS Note: Three holes are available at each fastening site to allow capture of studs or supports 1.00"...
- Page 10 7. Connect supplied 3/8" water line between Fig. 11 – Dispenser bottom view water supply and water inlet fitting (Fig. 11.1). 8. Using supplied 3/4" drain tubing and barbed fittings, connect 3/4" barbed drain elbow fitting on dispenser to 3/4" FNPT drain (Fig. 11.2). 9.
-
Page 11: Cleaning And Sanitizing
Follett recommends sanitizing the pressurized water lines prior to cleaning the ice machine/dispenser. Follett offers two kits: order P/N 01089572 when a Follett filter system with a pre-filter bowl is present, or P/N 01089580 when a Follett filter system is not present. Follow the instructions provided with the respective kits to sanitize the pressurized water lines immediately before cleaning the ice machine/dispenser. -
Page 12: Semi-Annually (More Often If Conditions Dictate)
§ [OPTIONAL] Nu-Calgon IMS-III no-rinse sanitizer (P/N 00979674 – 16 fl oz. bottle) SafeCLEAN Plus Solution: Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. - Page 13 11. While ice machine is cleaning, clean dispenser as follows: 11.1 Remove knurled nuts from front of storage hopper. 11.2 Remove stud assembly, baffle, wheel, and any remaining ice. 11.3 Remove dispense chutes from splash panel. 11.4 Submerse drain grill in SafeCLEAN Plus solution and allow to soak to remove any scale buildup. 11.5 Wipe inside of hopper lid, stud assembly, baffle, wheel, inside of storage area, dispense chutes, drain grill and drain pan with damp cloth wrung out in SafeCLEAN Plus solution.
-
Page 14: Dispenser Troubleshooting
19. Remove top bearing insulation. Loosen Phillips-head screw on nozzle connected to evaporator. Remove nozzle from evaporator side only, leave other side of nozzle connected to transport tube. 20. Soak one SaniSponge in remaining sanitizing solution. Insert the sponge soaked in sanitizing solution into nozzle, then insert a dry sponge into the nozzle. - Page 15 Ice machine runs Faulty or incorrectly positioned bin Check for proper positioning. If thermostat does not open continuously. thermostat. when ice is placed on capillary tube, replace thermostat. Does not dispense water. 1. Power switch off/faulty. 1. Turn on or replace the defective switch. 2.
- Page 16 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett ® equipment. Our goal is to deliver high value products and services that earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support.
