Kohler PURIST 10129T-C4 Installation Instructions

SERVICE PARTS

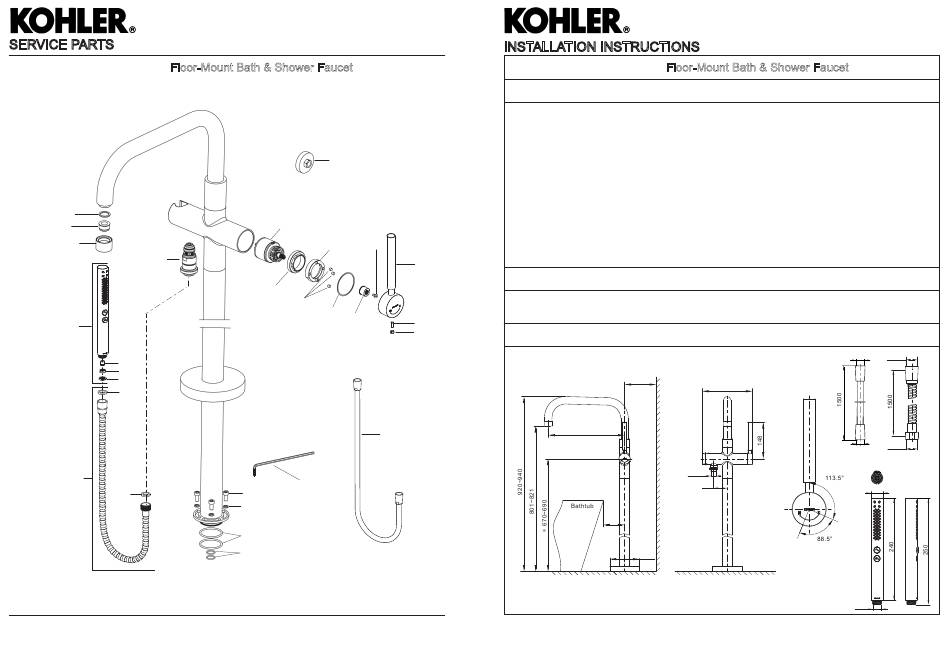

10129T-C4 Floor-Mount Bath & Shower Faucet
3002868
835894
1092931**
3008851**
1297467**
1240266
1030624
77420
880010
Other finishes:831727**
880010
**Color code must be specified when ordering
1338599-2A-B
PURIST
1093348**
(Use for uninstalling nut 1092926)
1092965
1093137** 1142534
1236624**
1092926
3013706
1093138
1229578
3015503
834705**
2BL/2BZ:1248781**
835598
1082901
1084120
1010167
77955
4
INSTALLATION INSTRUCTIONS
10129T-C4 Floor-Mount Bath & Shower Faucet
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
5. Check for leaks before covering the pipes, repairs as needed.
6. The highest working pressure for handshower & showerhead is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower,
showerhead and shower arm away from heater, or it may become damaged and cause injury to the user.
7. Please purchase the matched mounting base 97905T when install the faucet.
HANDLE OPERATION
Turn the handle gently. Turn for hot and cold water as shown below. Water flows out from spout when faucet
diverter is in the normal position and it's diverted to handshower when the diverter is pulled down.
ROUGH-IN DIMENSIONS
200
Min.
*307
*85
Min.
Ø120
* Please purchase the suitable bathtub according to the dimension.
1338599-2A-B
PURIST
G1/2˝
Handle
202
G1/2˝
Only for 2BL&2BZ For other finishes
G1/2˝
55
Cold
Hot
G1/2˝
G1/2˝
G1/2˝
Ø28
