Kohler PURIST 10129T-4 Installation Instructions

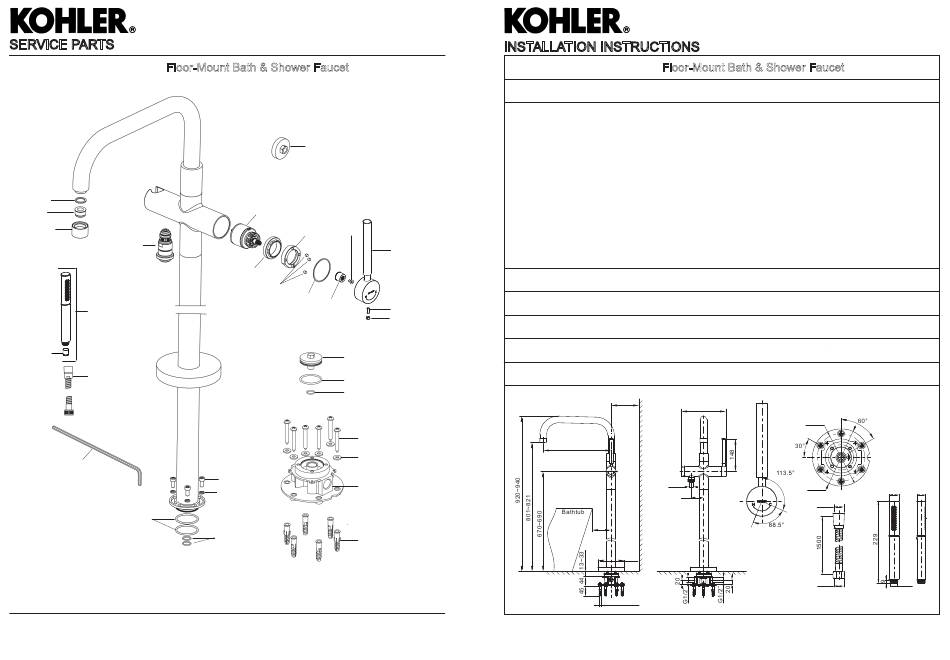

SERVICE PARTS

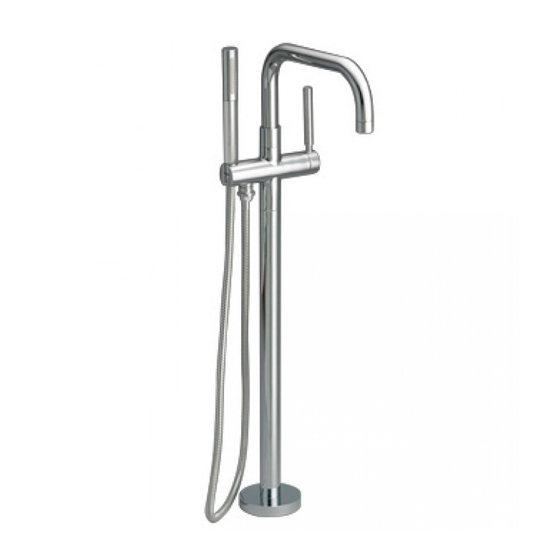

10129T-4 Floor-Mount Bath & Shower Faucet
3002868
835894
1092931**
3008851**
1096037**
79680
831727**
835598
1010167
**Color code must be specified when ordering
1221390-2A-B
PURIST
1093348**
(Use for uninstalling nut 1092926)
1092965
1102045** 1142534
1236624**
1092926
3013706
1093138
1229578
3015503
834705**
1092932
1010167
77955
1082902
1092935
1082901
1205291
1084120
77955
1082904
INSTALLATION INSTRUCTIONS
10129T-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
5. Check for leaks before covering the pipes, repairs as needed.
6. The highest working pressure for handspray is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer is
needed. The highest water and environment temperature is 60ºC. Please keep handspray, shower head and the
shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Turn the handle gently. Turning for hot and cold water as shown below.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
307
85
Min.
4 1221390-2A-B
Floor-Mount Bath & Shower Faucet
Handle
200
202
Min.
Cold
G1/2˝
55
Hot
Ø120
Pre-drill Ø10
PURIST
Base Assy
Ø100
Ø120
28 24
G1/2˝
G1/2˝ G1/2˝
1
