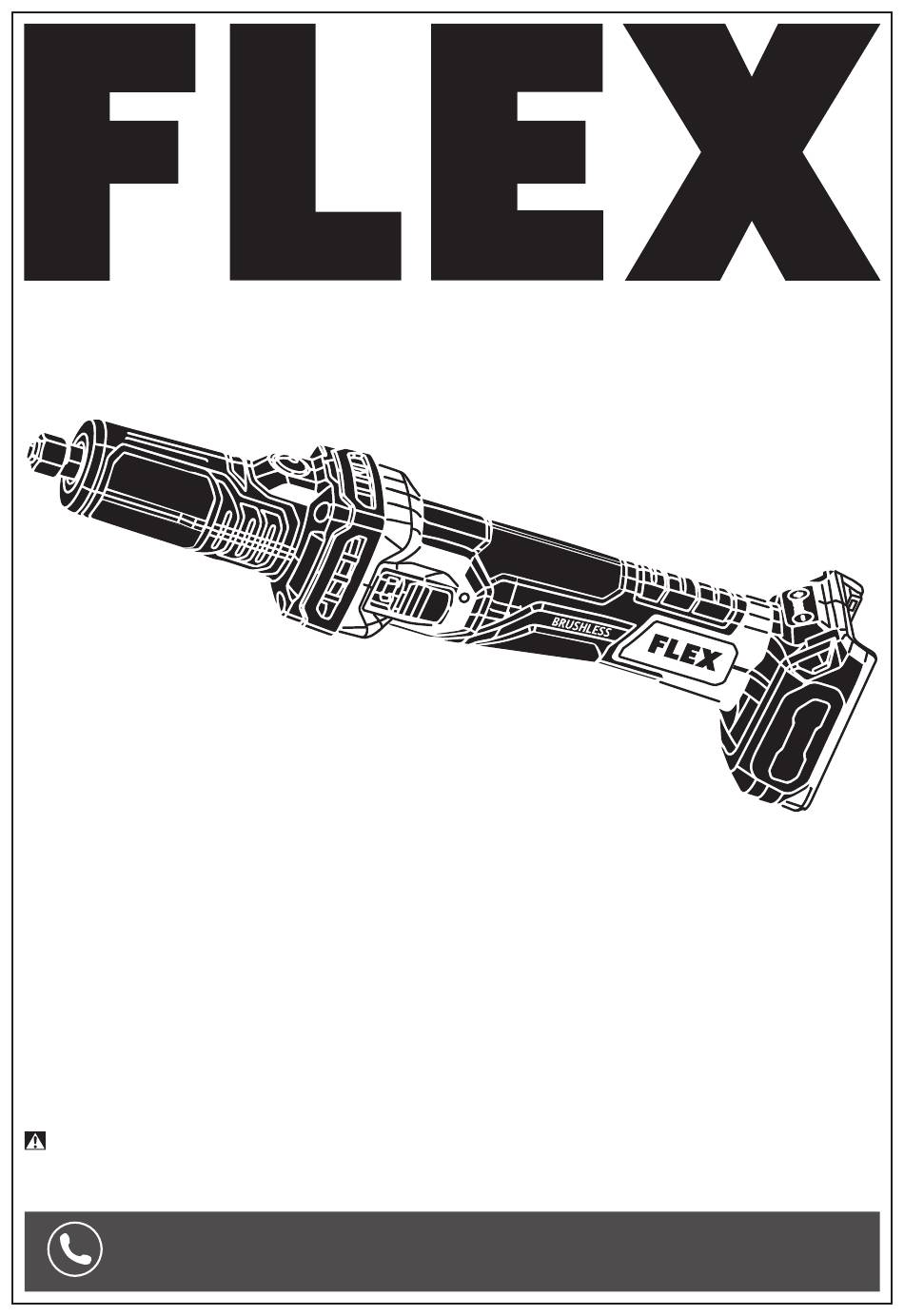

OPERATOR'S MANUAL
Model:
FXA3211
24V BRUSHLESS 1/4'' DIE GRINDER
WARNING: To reduce the risk of injury, the user must read and understand the
Owner's Manual before using this product. Save these instructions for future reference.
Please contact FLEX customer service in Australia 1300 000 346 or
New Zealand 0508 000 346 any time you have questions or warranty claims.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flex FXA3211
Summary of Contents for Flex FXA3211
- Page 1 WARNING: To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product. Save these instructions for future reference. Please contact FLEX customer service in Australia 1300 000 346 or New Zealand 0508 000 346 any time you have questions or warranty claims.
-
Page 2: Safety Symbols
SAFETY SYMBOLS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures. -
Page 3: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Read all safety warnings, instructions, illustrations and specifications WARNING provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term “power tool”... - Page 4 Power tool use and care Battery tool use and care Do not force the power tool. Use the correct Recharge only with the charger specified by power tool for your application. The correct the manufacturer. A charger that is suitable for power tool will do the job better and safer at the one type of battery pack may create a risk of fire rate for which it was designed.
- Page 5 SAFETY WARNINGS FOR DIE GRINDER Safety instructions for all operations undamaged accessory. After inspecting and installing an accessory, position Safety warnings common for grinding, yourself and bystanders away from the sanding, wire brushing, polishing, plane of the rotating accessory and run carving or abrasive cutting-off the power tool at maximum no-load speed for one minute.
- Page 6 After changing the bits or making any Maintain a firm grip on the power tool and • • adjustments, make sure the collet nut, position your body and arm to allow you chuck or any other adjustment devices to resist kickback forces. The operator can are securely tightened.
- Page 7 Additional safety instructions for wire Do not “jam” a cut-off wheel or apply • excessive pressure. Do not attempt to make brushing operations an excessive depth of cut. Overstressing the Safety warnings specific for wire wheel increases the loading and susceptibility brushing operations: to twisting or snagging of the wheel in the cut and the possibility of kickback or wheel...
- Page 8 SYMBOLS IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. Symbol Name Designation/Explanation Volts Voltage Amperes Current Hertz...
- Page 9 Symbol Name Designation/Explanation Wear ear protection symbol Alerts user to wear ear protection This product complies with applicable Regulatory compliance mark Australian standards.
- Page 10 Fig. 1 Spindle-Lock Speed Control Button Handle Panel Collet Nut Collet On/Off Switch Collet Wrench Filter Cover FXA3211 Model No. 24V d. c. Rated Voltage 10000/16000/22000/28000 /min (RPM) No-load Speed Collet Capacity 6.35 mm (1/4'') Recommended -20 – 40°C operating...
- Page 11 ASSEMBLY Detach the battery pack WARNING Fig. 2 from the tool before performing any assembly or adjustments, or Battery-Release changing accessories. Such preventive safety Button measures reduce the risk of starting the tool accidentally. TO ATTACH/DETACH BATTERY PACK (FIG. 2) To attach the battery pack: Align the raised rib on the battery pack with the grooves in the tool, and then slide the battery...
- Page 12 d. Insert the accessory all the way into the collet. Fig. 4 e. Exposed shaft length cannot be more than 10 mm. The shank of the accessory must be inserted at least 20 mm into the collet (Fig. 4). f. Press the spindle-lock button, securely tighten the clamping nut using the collect wrench and turning it clockwise (Fig.
- Page 13 FILTER COVER (FIG. 7) Fig. 7 Using the filter cover will protect the interior of the tool from debris and extend the life of the tool. a. Remove the battery pack. b. To attach the filter cover, snap the hook of one section of the filter cover into the groove at tool’s foot first, and then press the other end into the other groove.
- Page 14 ADJUSTMENTS Fig. 8 SPEED SELECTION (FIG. 8) Your tool features a speed control panel with LEDs memory function. After turning the tool off, the tool will revert to the previous setting the next time it is turned on. Use the + or – speed selection button to increase or decrease the speed.
- Page 15 This die grinder must be used only with the When pressure is released the switch button will FLEX 24V series battery packs and chargers. snap back to the “OFF” position. NOTICE: Please refer to the battery pack To lock the switch “ON”:...
- Page 16 ACCESSORIES c. Use a clamp, vise or other practical means to hold your workpiece. Points, cones, plugs, grinding wheels and cut- d. Firmly grasp the tool. off wheels should be protected from: e. Start the tool before applying it to workpiece Wetness and extreme humidity.
-
Page 17: Maintenance
Ventilation openings and hazard. We recommend that all tool service be switch levers must be kept clean and free of performed by a FLEX Factory Service Centre or foreign matter. Do not attempt to clean by Authorized FLEX Service Station. -
Page 18: Warranty Statement
If the Customer registers its purchase of the Product online at www.flex-tools.com.au or by calling • 1300 000 346 in Australia or www.flex-tools.co.nz or by calling 0508 000 346 in New Zealand within 30 days of the date of its purchase (Registration), the Warranty Period for the following Products is as follows: FLEX 24V Tools: 5 years;... -
Page 19: Warranty Claims
The Warranty does not apply if: a) the Product is not supplied in its final shape and form by Chervon or an authorised FLEX Dealer, which can be confirmed on the website store locator (for avoidance of doubt, third party online stores such as eBay, Gumtree, Amazon, etc. - Page 20 *Original purchaser must register the product(s) within 30 days of purchase and retain their receipt as proof of purchase. This warranty applies only to the original purchaser from an authorised FLEX dealer and may not be transferred. If original purchaser does not register their product within 30 days, the warranty will apply for the duration set out in table above in column ‘LIMITED...
