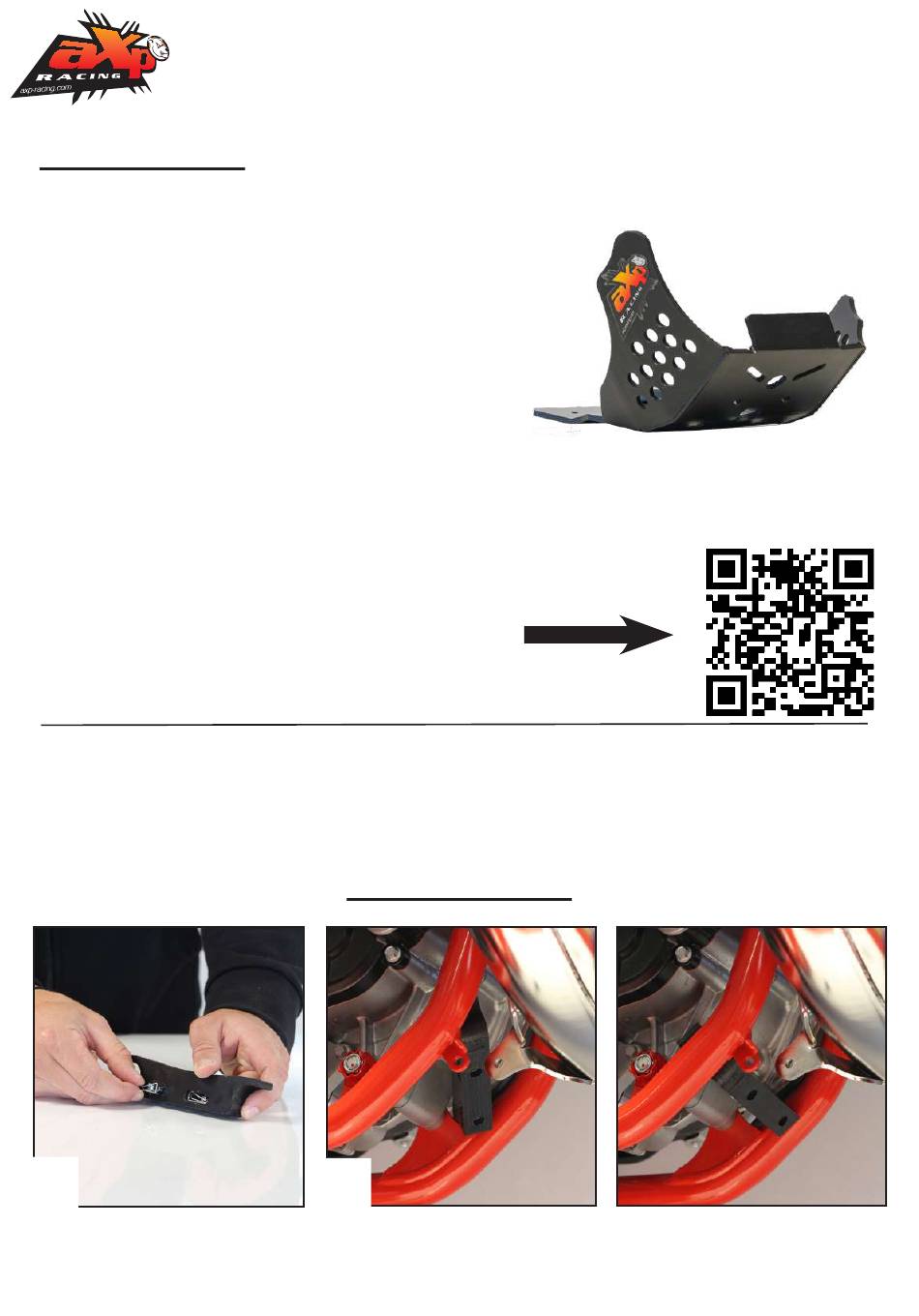

AX1764
Skid plate
Triumph TF250X
What's in the box ?
1 PM01-04-287 - Front fixation
2 NE01-04-002 - Clamped bolts
1 PM01-10-031 - Rear block 30mm
1 PM03-04-134 - Rear fixation aluminum
2 NE01-02-002 - TFHC 6x20mm screws
4 NE01-04-003 - EM6F bolts
4 NE01-03-001 - M6 washers
1 NE01-02-004 - TFHC 6x30mm screws
1 NE01-02-003 - TFHC 6x25mm screws
2 NE01-03-006 - M6 large washers
2 NE01-01-009 - TBHC 6x20mm screws
2 NE01-11-001 - THF 6x25mm screws
1 NE04-01-272 - Sticker
The paper instructions may be limitless, scan the QR
code to watch the tutorial video online.
This tutorial shows a different skid plate but the mounting
is the same.
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have a « life warranty ».
However, production default may happen and we cover it during the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Place the clamped bolts in the
front fixation.
Follow the steps !
2
Put the front fixation inside of the frame. For an easy assembly,
you can slide it on the side.
Note: this is not the Triumph frame but fitment is the same.
Assembling
instructions
Advertisement
Related Manuals for aXp RACING AX1764
Summary of Contents for aXp RACING AX1764
- Page 1 Assembling AX1764 Skid plate instructions Triumph TF250X What’s in the box ? 1 PM01-04-287 - Front fixation 2 NE01-04-002 - Clamped bolts 1 PM01-10-031 - Rear block 30mm 1 PM03-04-134 - Rear fixation aluminum 2 NE01-02-002 - TFHC 6x20mm screws...
- Page 2 Place the rear block on using Place the aluminum fixation Put the skid plate in position on one TFHC 6x30mm and one on the rear of the plate using the frame. TFHC 6x25mm screws + 2 TFHC 6x20mm screws + washers and bolts, and tighten.
