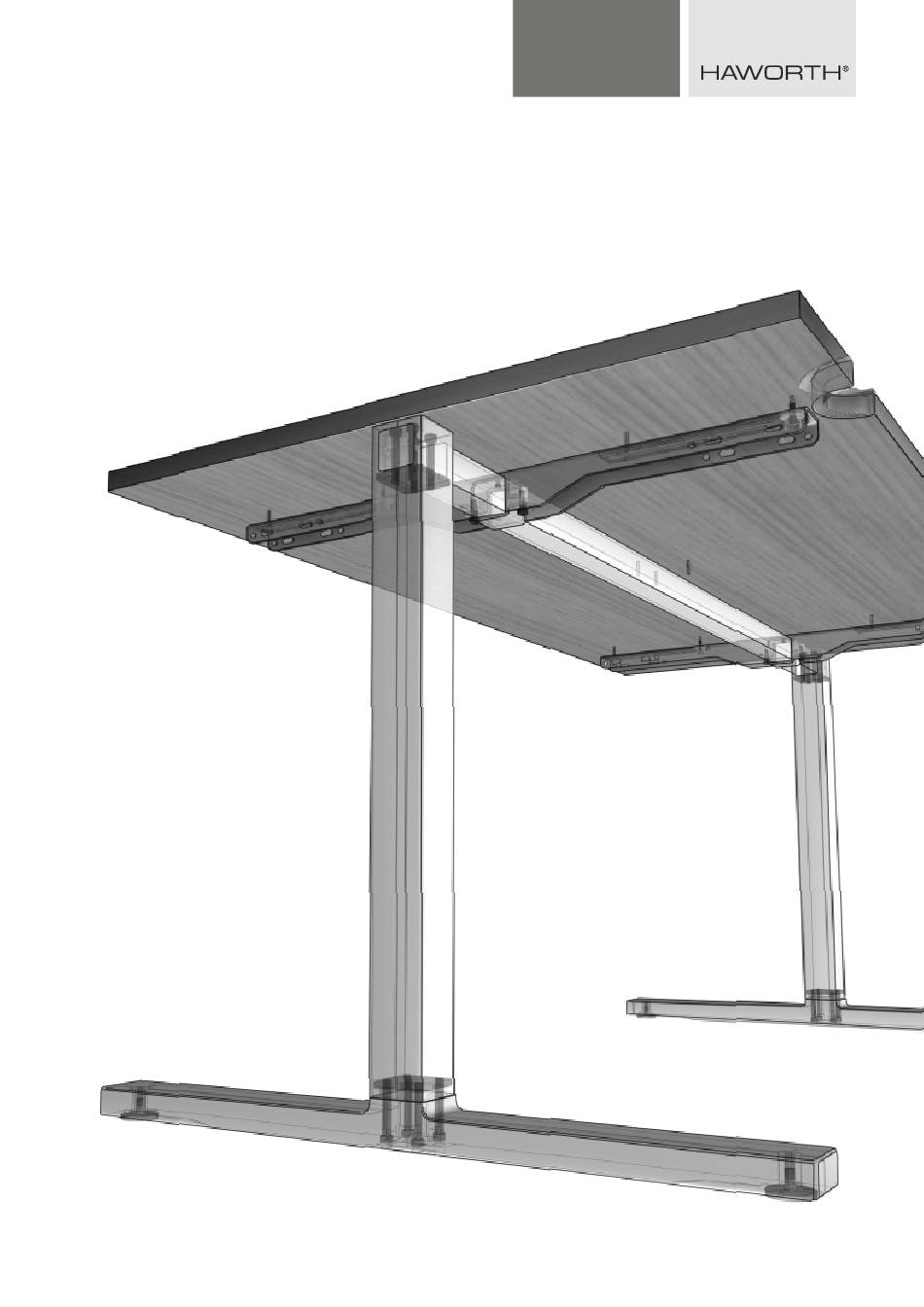

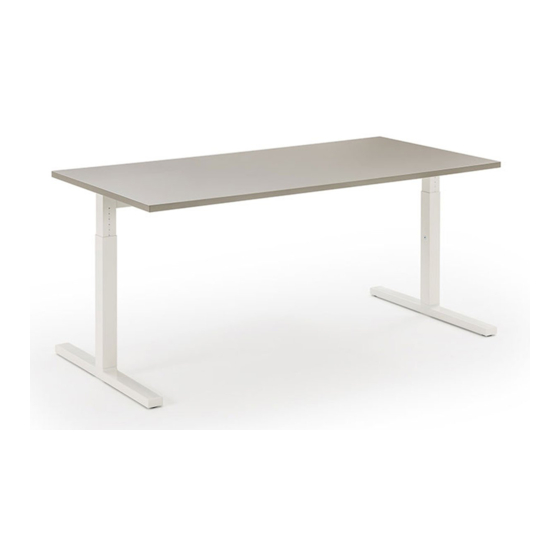

Instruções de Montagem | português | válido desde 29.04.2011
Assembly Instructions | english | applicable from 29.04.2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the T_up and is the answer not in the manual?

Questions and answers

Summary of Contents for Haworth T_up

  • Page 1 T_up Instruções de Montagem | português | válido desde 29.04.2011 Assembly Instructions | english | applicable from 29.04.2011...
  • Page 2 1 - MONTAGEM DAS ESTRUTURAS 1 - STRUCTURES ASSEMBLY PATA T FIXA FIXED T LEG Viga(s) | Beam(s) Base de Pata T | T Leg Base Part Mênsula | Bracket Prumo de Pata | Column for Leg Prumo de Pata | Column for Leg Prumo de Pata Independent | Column for Freestanding Leg...
  • Page 3 T_up desks structures tops desk accessories meeting tables range overview Viga(s) | Beam(s) Prumo de Pata | Column for Leg Base para Pata Bench| Bench Leg Base Part Mênsula | Bracket Prumo de Pata | Column for Leg Mênsula |...
  • Page 4 1 - MONTAGEM DAS ESTRUTURAS 1 - STRUCTURES ASSEMBLY PATA T FIXA FIXED T LEG PATA T INDEPENDENTE FREESTANDING T LEG PATA PRUMO COLUMN LEG - M6x55 DIN 912 - Nivelador | Levelling Glide - M8x20 DIN 7991...
  • Page 5 T_up desks structures tops desk accessories meeting tables range overview PATA T AJUSTÁVEL HEIGHT ADJUSTABLE LEG Aplicar Temporariamente Fita Bi-Adesiva ou Cola Apply Temporarily Tape or Glue PATA BENCH BENCH LEG...
  • Page 6 1 - MONTAGEM DAS ESTRUTURAS (cont.) 1 - STRUCTURES ASSEMBLY (cont.) UNIÃO VIGA-PATA T BEAM-T LEG ASSEMBLY UNIÃO VIGA-PATA BENCH (Exterior) BEAM-BENCH LEG ASSEMBLY (External) UNIÃO VIGA-PATA (Central | Partilhada) BEAM- LEG ASSEMBLY (Central | Shared) - M6x55 DIN 912 - M6x50 DIN 912 - M6x16 DIN 912...
  • Page 7 T_up desks structures tops desk accessories meeting tables range overview MONTAGEM DAS MÊNSULAS BRACKET ASSEMBLY Atenção Attention ATENÇÃO: Apontar os parafusos manualmente, apertando em seguida de forma alternada. Lado do Utilizador WARNING: Manually point the bolts, then tight them in User Side cross way.
  • Page 8 2 - MONTAGEM DOS TAMPOS 2 - TOPS ASSEMBLY...
  • Page 9 T_up desks structures tops desk accessories meeting tables range overview MONTAGEM DO TRAVAMENTO DE TAMPO TOP’S LOCKING DEVICE ASSEMBLY Puxar para Soltar o Tampo Push to Unlock the Top - Euroscrew - Deslizador | Glide...
  • Page 10 2 - MONTAGEM DOS TAMPOS (cont.) 2 - TOPS ASSEMBLY (cont.) LIGAÇÃO PATA T INDEPENDENTE & PATA-PRUMO COLUMN & FREESTANDING LEG ASSEMBLY MONTAGEM DO SUPORTE DE TAMPO DE ALA RETURN TOP SUPPORT ASSEMBLY - M6x16 DIN 912 - 5X20 PCL 232...
  • Page 11 T_up desks structures tops desk accessories meeting tables range overview...
  • Page 12: Montagem Dos Acessórios

    3 - MONTAGEM DOS ACESSÓRIOS 3 - ACCESSOIRES ASSEMBLY CALHA PASSA-CABOS HORIZONTAL SIMPLES (ARAME) SIMPLE HORIZONTAL CABLE TRAY (WIRE) - M6x12 DIN 912 - 5x20 PCL 232 - Anilha M6 | M6 Washer - Porca M6 DIN 934 | M6 DIN 934 Nut...
  • Page 13 T_up desks structures tops desk accessories meeting tables range overview...
  • Page 14 3 - MONTAGEM DOS ACESSÓRIOS (cont.) 3 - ACCESSOIRES ASSEMBLY (cont.) CALHA PASSA-CABOS HORIZONTAL (HEXAGON) HORIZONTAL CABLE TRAY (XEXAGON) - Anilha M6 | M6 Washer - Porca M6 DIN 934 | M6 DIN 934 Nut - M6x30 DIN 912 - 5x35 PCL 232...
  • Page 15 T_up desks structures tops desk accessories meeting tables range overview...
  • Page 16 3 - MONTAGEM DOS ACESSÓRIOS (cont.) 3 - ACCESSOIRES ASSEMBLY (cont.) CALHA PASSA-CABOS HORIZONTAL DUPLA (ARAME) DOUBLE HORIZONTAL CABLE TRAY (WIRE) PASSA-CABOS VERTICAL (METAL) VERTICAL CABLE DUCT (METAL) - M6x50 DIN 912 - M6x12 DIN 912 - Anilha M6 | M6 Washer - Porca M6 DIN 934 | M6 DIN 934 Nut d1>d2...
  • Page 17 T_up desks structures tops desk accessories meeting tables range overview PROTECÇÃO DE CABLAGEM (CHAPA PERFURADA) PROTECTION CABLE TRAY (PERFORATED STEEL PLATE) SUPORTE DE CPU CPU SUSPENSION KIT...
  • Page 18 3 - MONTAGEM DOS ACESSÓRIOS (cont.) 3 - ACCESSOIRES ASSEMBLY (cont.) PAINEL FRONTAL MODESTY PANEL - M6x50 DIN 912 - M6x16 DIN 912 - M6x12 DIN 912 - 5x20 PCL 232 - Anilha M6 | M6 Washer - Porca M6 DIN 934 | M6 DIN 934 Nut...
  • Page 19 T_up desks structures tops desk accessories meeting tables range overview KIT DE FIXAÇÃO DA SECRETÁRIA A BLOCOS DESK - PEDESTAL UNION KIT...
  • Page 20 1 - MONTAGEM DAS ESTRUTURAS E TAMPOS 1- STRUCTURES AND TOPS ASSEMBLY MESA DE REUNIÃO 2200X1200 MEETING TABLE 2200X1200 - M6x55 DIN 912 - Nivelador | Levelling Glide - M6x50 DIN 912...
  • Page 21 T_up desks meeting tables structures & tops accessories range overview...
  • Page 22 1 - MONTAGEM DAS ESTRUTURAS E TAMPOS (cont.) 1- STRUCTURES AND TOPS ASSEMBLY (cont.) MESA DE REUNIÃO 4400X1200 | 6600X1200 MEETING TABLE 4400X1200 | 6600X1200 - M6x55 DIN 912 - Nivelador | Levelling Glide - M6x50 DIN 912...
  • Page 23 T_up desks meeting tables structures & tops accessories range overview...
  • Page 24 2 - MONTAGEM DOS ACESSÓRIOS 2 - ACCESSOIRES ASSEMBLY CALHA PASSA-CABOS HORIZONTAL SIMPLES (ARAME) SIMPLE HORIZONTAL CABLE TRAY (WIRE) CALHA PASSA-CABOS HORIZONTAL DUPLA (ARAME) DOUBLE HORIZONTAL CABLE TRAY (WIRE) - 5x20 PCL 232 - 5x35 PCL 232...
  • Page 25 T_up desks meeting tables structures & tops accessories range overview CALHA PASSA-CABOS HORIZONTAL - TIPO HEXAGON HORIZONTAL CABLE TRAY - HEXAGON MODEL MONTAGEM DA PROTECÇÃO DE CABLAGEM PROTECTION CABLE TRAY...
  • Page 26 Mesas Reunião Redondas | Round Meeting Tables Mesas Reunião | Meeting Tables 220x120 440x120 660x120 220x120 440x120 660x120...
  • Page 27 T_up desks meeting tables range overview Secretárias Rectangulares | Rectangular Desks Alas | Return Desks 100x60 80x60 Postos Compactos | Compact Desks Postos Compactos | Compact Desks 180x120 / 80x60 160x120 / 80x60 160x160 / 80x60 160x160 / 60x60 160x160 / 80x80...
  • Page 28 France · Haworth S.A.S. · Tel. +33 1 4564 4500 | Germany · Haworth GmbH · Communication Center · Tel. +49 5042 501 0 Hungary · Haworth Hungary Kft. · Tel. +36 1 201 40 10 | Ireland · Haworth Ireland Ltd. · Tel. +353 1855 8840 | Italy ·...
