Danfoss VLT AutomationDrive FC 102 Installation Manual page 103

VLT® Frequency Converters, 90–400 kW

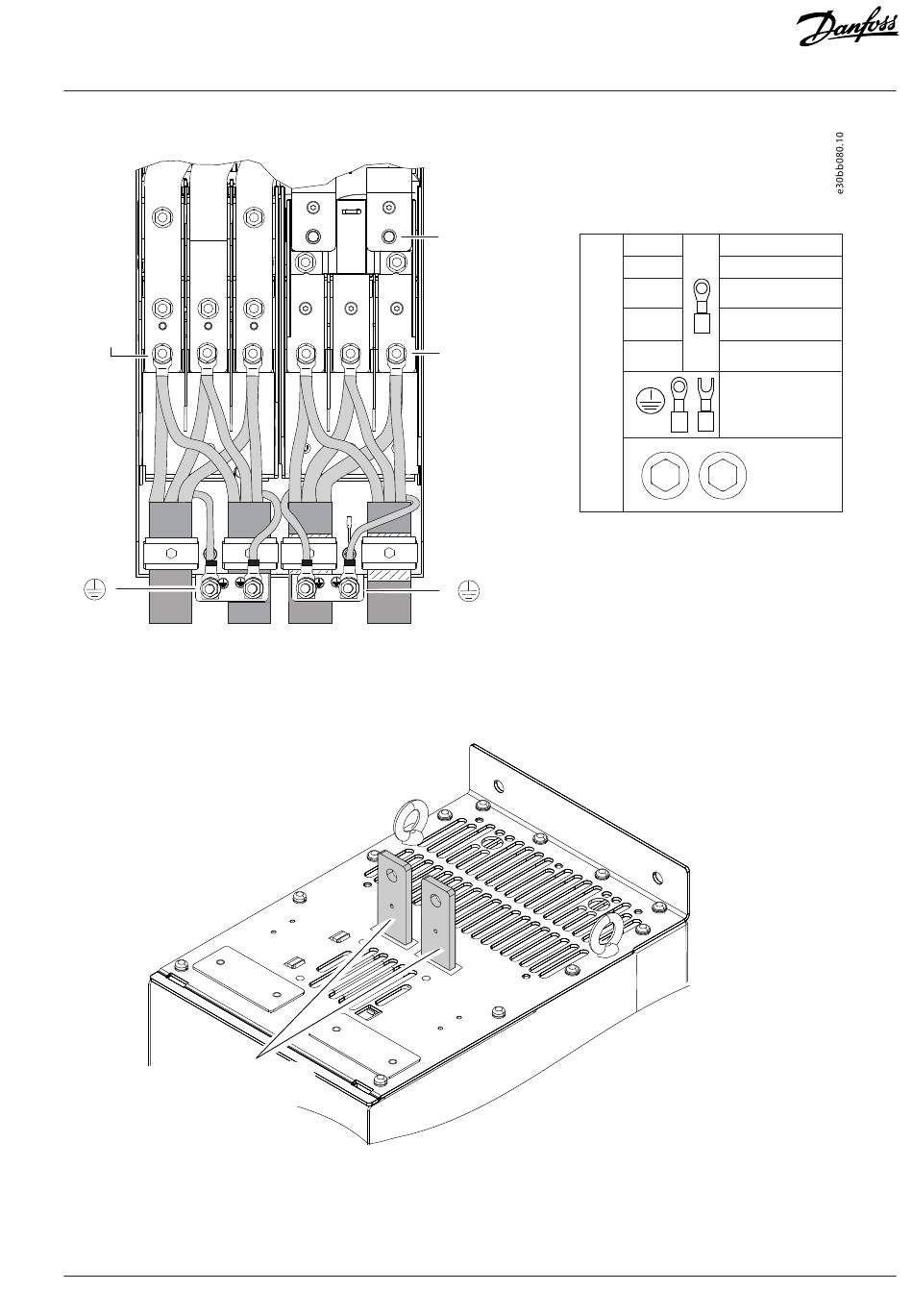

D3h
L1, L2, L3
+DC, –DC / +Regen, –Regen
Danfoss A/S © 2024.06
+R, –R
D3h
U, V, W
L1, L2, L3 M10 [19 Nm (168 in-lb)]
U, V, W M10 [19 Nm (168 in-lb)]
+R
M10 [19 Nm (168 in-lb)]
–R
+Regen
M10 [19 Nm (168 in-lb)]
–Regen
+DC
M10 [19 Nm (168 in-lb)]
–DC
M8 [9.6 Nm (84 in-lb)]
13
17
mm mm
AN41701949085201-000201 / 130R1260 | 103
