Danfoss VLT AutomationDrive FC 102 Installation Manual page 102

VLT® Frequency Converters, 90–400 kW
D1h
9

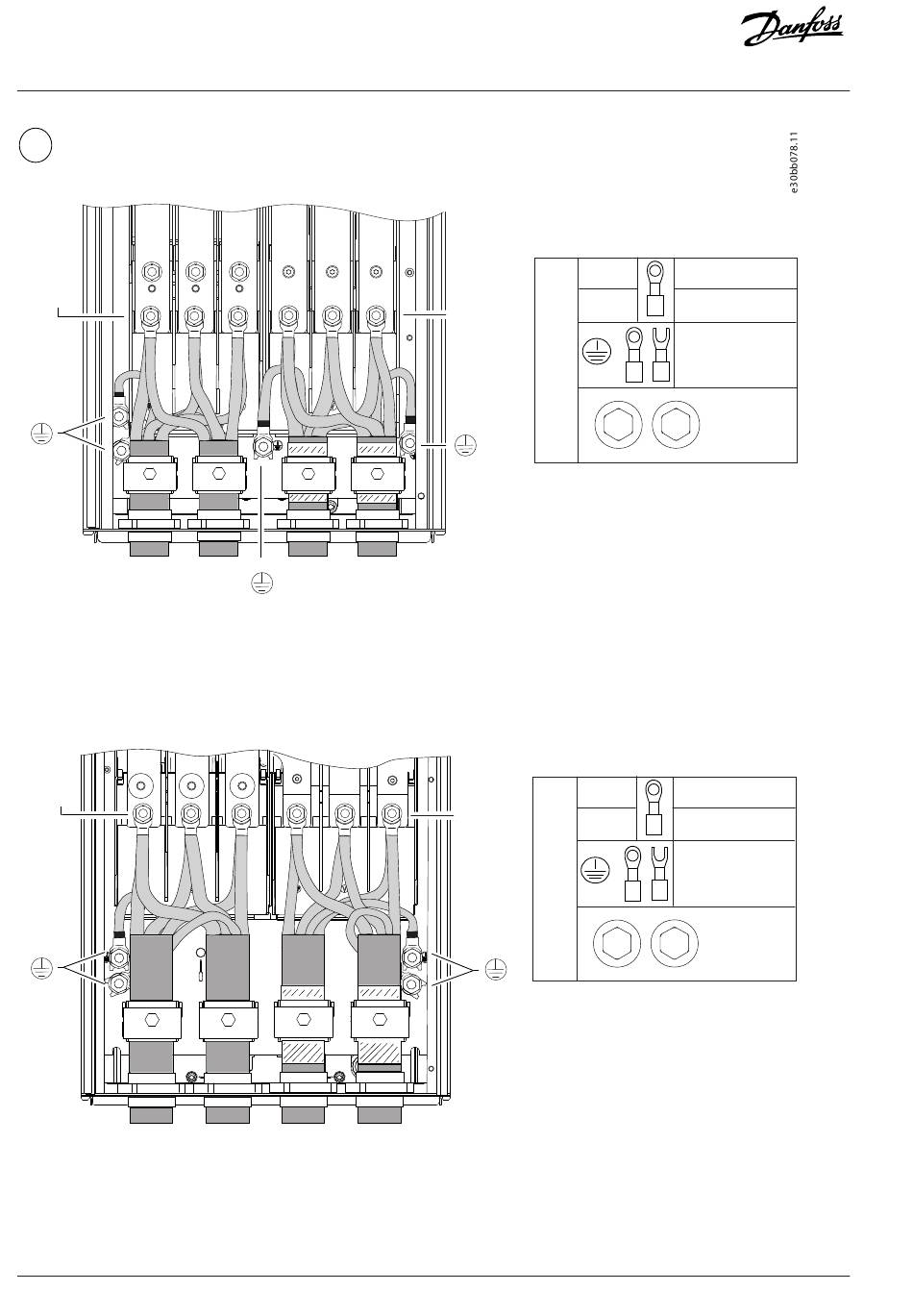

L1, L2, L3
D2h
L1, L2, L3
102 | Danfoss A/S © 2024.06
D1h L1, L2, L3
U, V, W
U, V, W
17
mm
D2h L1, L2, L3
U, V, W
U, V, W
17
mm
AN41701949085201-000201 / 130R1260
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M8 [9.6 Nm (84 in-lb)]
13
mm
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M8 [9.6 Nm (84 in-lb)]
13
mm
