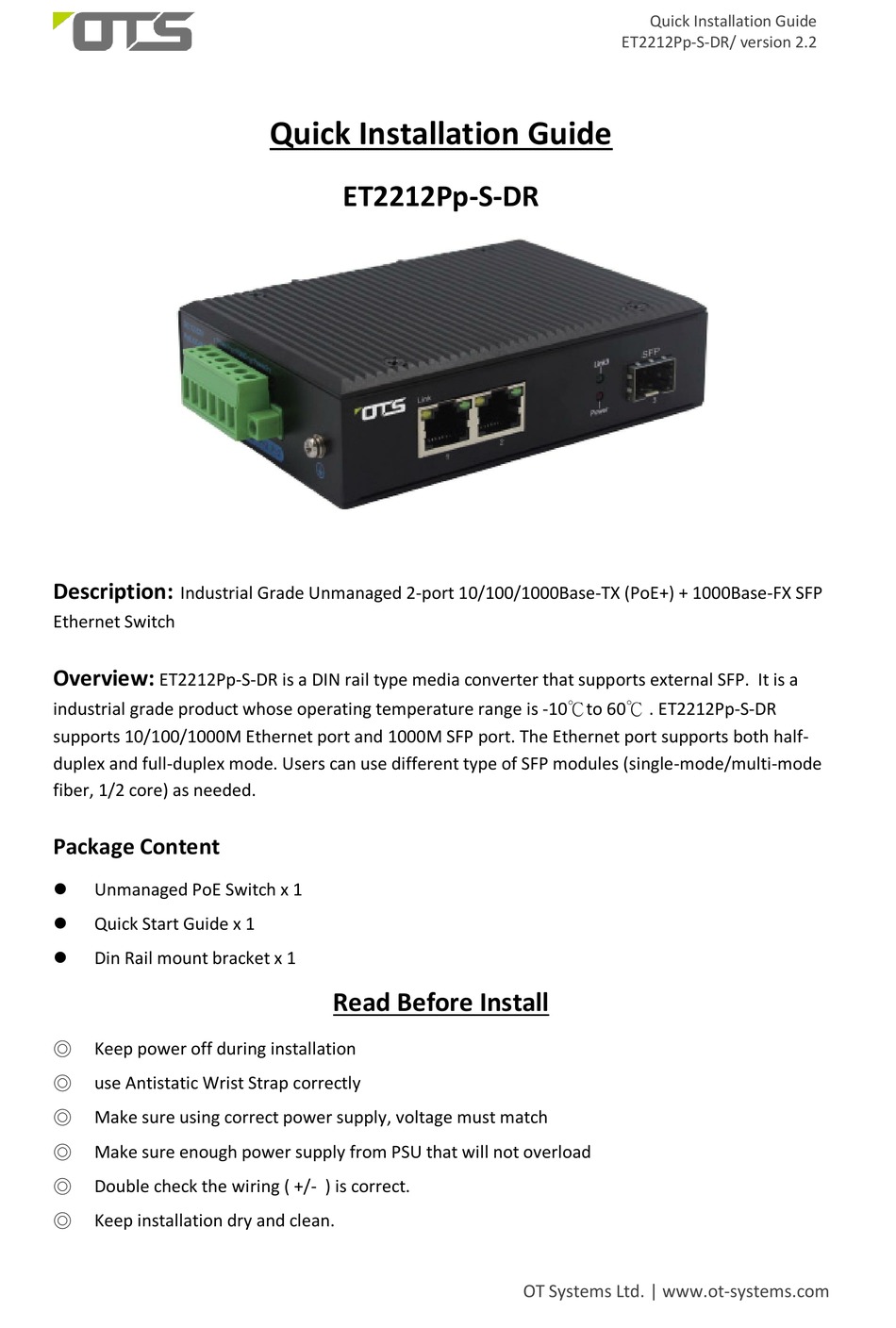

Description:
Industrial Grade Unmanaged 2-port 10/100/1000Base-TX (PoE+) + 1000Base-FX SFP
Ethernet Switch
Overview:

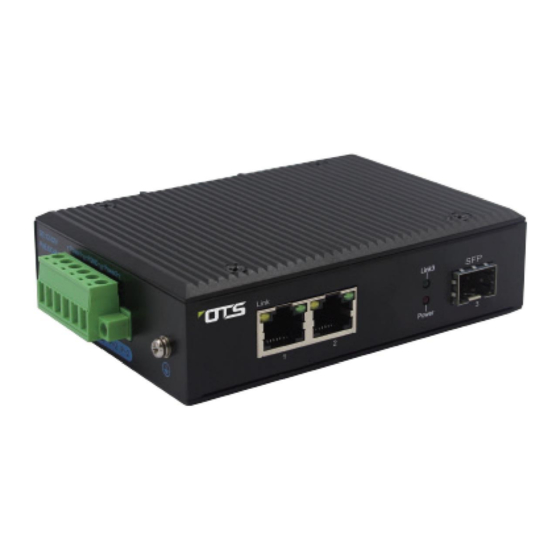

ET2212Pp-S-DR is a DIN rail type media converter that supports external SFP. It is a
industrial grade product whose operating temperature range is -10℃to 60℃ . ET2212Pp-S-DR
supports 10/100/1000M Ethernet port and 1000M SFP port. The Ethernet port supports both half-
duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode
fiber, 1/2 core) as needed.
Package Content
⚫
Unmanaged PoE Switch x 1
⚫
Quick Start Guide x 1
⚫
Din Rail mount bracket x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( +/- ) is correct.
◎
Keep installation dry and clean.
Quick Installation Guide
ET2212Pp-S-DR
Read Before Install
Quick Installation Guide
ET2212Pp-S-DR/ version 2.2
OT Systems Ltd. | www.ot-systems.com
Advertisement
Table of Contents
Related Manuals for OTS ET2212Pp-S-DR
Summary of Contents for OTS ET2212Pp-S-DR
- Page 1 Ethernet Switch Overview: ET2212Pp-S-DR is a DIN rail type media converter that supports external SFP. It is a industrial grade product whose operating temperature range is -10℃to 60℃ . ET2212Pp-S-DR supports 10/100/1000M Ethernet port and 1000M SFP port. The Ethernet port supports both half- duplex and full-duplex mode.
- Page 2 Quick Installation Guide ET2212Pp-S-DR/ version 2.2 ◎ Do not open the chassis Physical Description 118mm DIN Rail Installation DIN rail. Installation methods are as follows: Power Input DC 48-56V Power Redundant input available, connect to phoenix contact PWR1 and PWR2...
- Page 3 Quick Installation Guide ET2212Pp-S-DR/ version 2.2 Power in 1 Power in PoE Output IEEE 802.3af/at, per port 30W, 1/2(+), 3/6(-) Setup and States a) Connect the Ethernet port of the media converter to a PoE IP camera (PoE device) or network device with a network cable.
- Page 4 Quick Installation Guide ET2212Pp-S-DR/ version 2.2 General To ensure trouble free transportation and storage, all OT Systems products must be thoroughly inspected, tested and properly packed before delivery. Check the product upon receipt for any visible damage which may have been caused during shipment.
