Industrial Grade Unmanaged 2-port 10/100/1000Base-TX to 1-port 1000Base-SFP Ethernet Switch

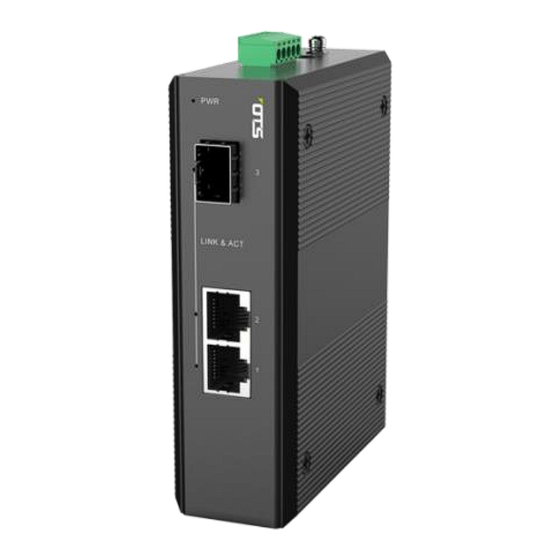

ET2212-S-DR is an Industrial Gigabit Ethernet Switch, which is designed for the small business network
application. Supports 2-Port 10/100/1000Base-T RJ45 and 1-port 1000Base-X SFP based fiber optics.
The traditional transmission distance of Fast Ethernet over RJ45 copper can be extended up to 100km+
over a fiber optics interface. LEDs provide visual monitoring of Ethernet-connected devices such as IP
cameras, wireless access points, or PC/laptop via 10/100/1000Base-T twisted-pair RJ45 ports,
particularly suitable for deploying and provisioning active Ethernet FTTX service of multi-service
operators (MSO).
Package Content
⚫
Unmanaged Ethernet Switch x 1
⚫
Din-Rail Clip x 1
⚫
Wall-Mount Kits x 2
⚫
Quick Start Guide x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload

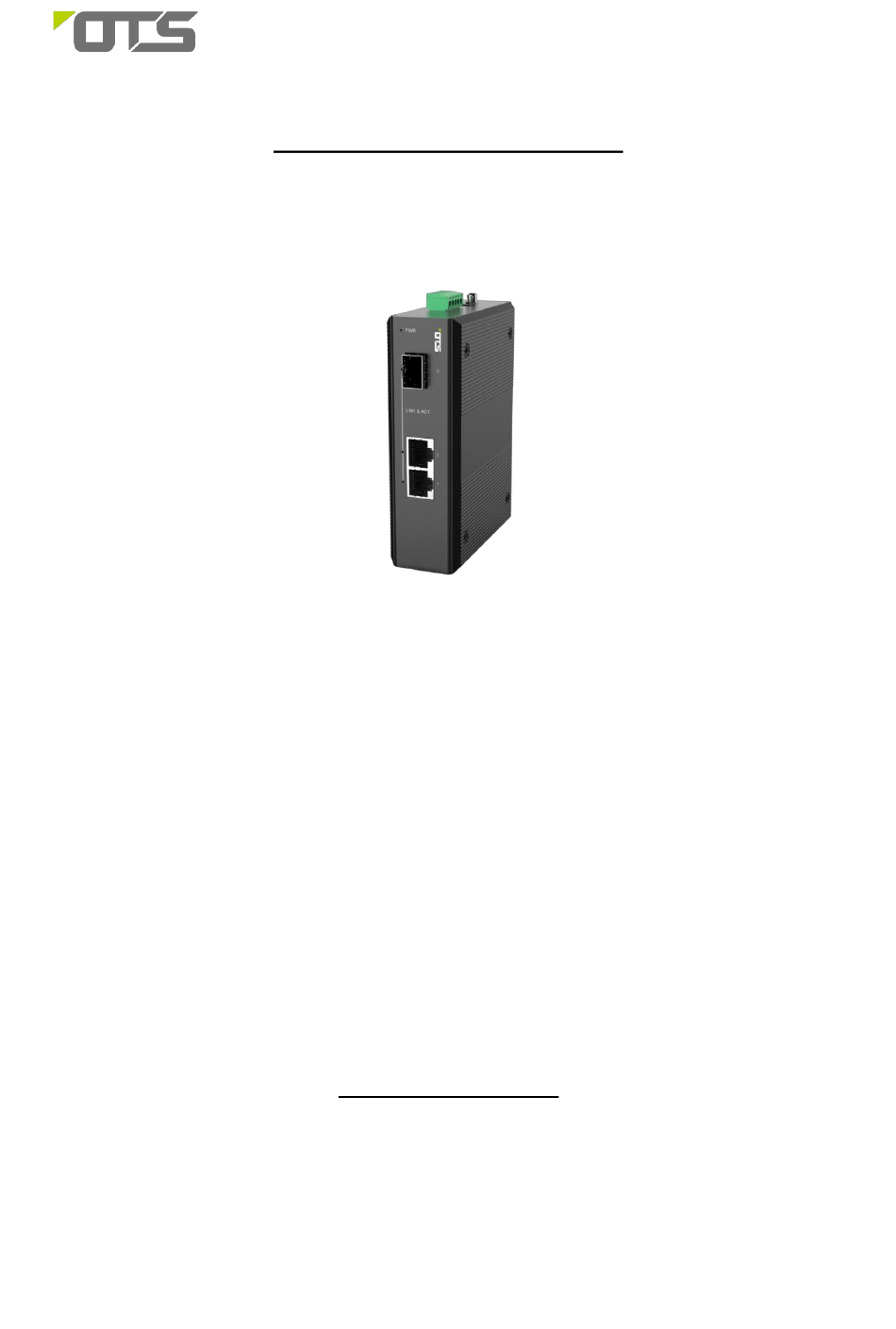

Quick Installation Guide
ET2212-S-DR
Read Before Install
Quick Installation Guide
ET2212-S-DR / version 1.0
OT Systems Ltd. | www.ot-systems.com
